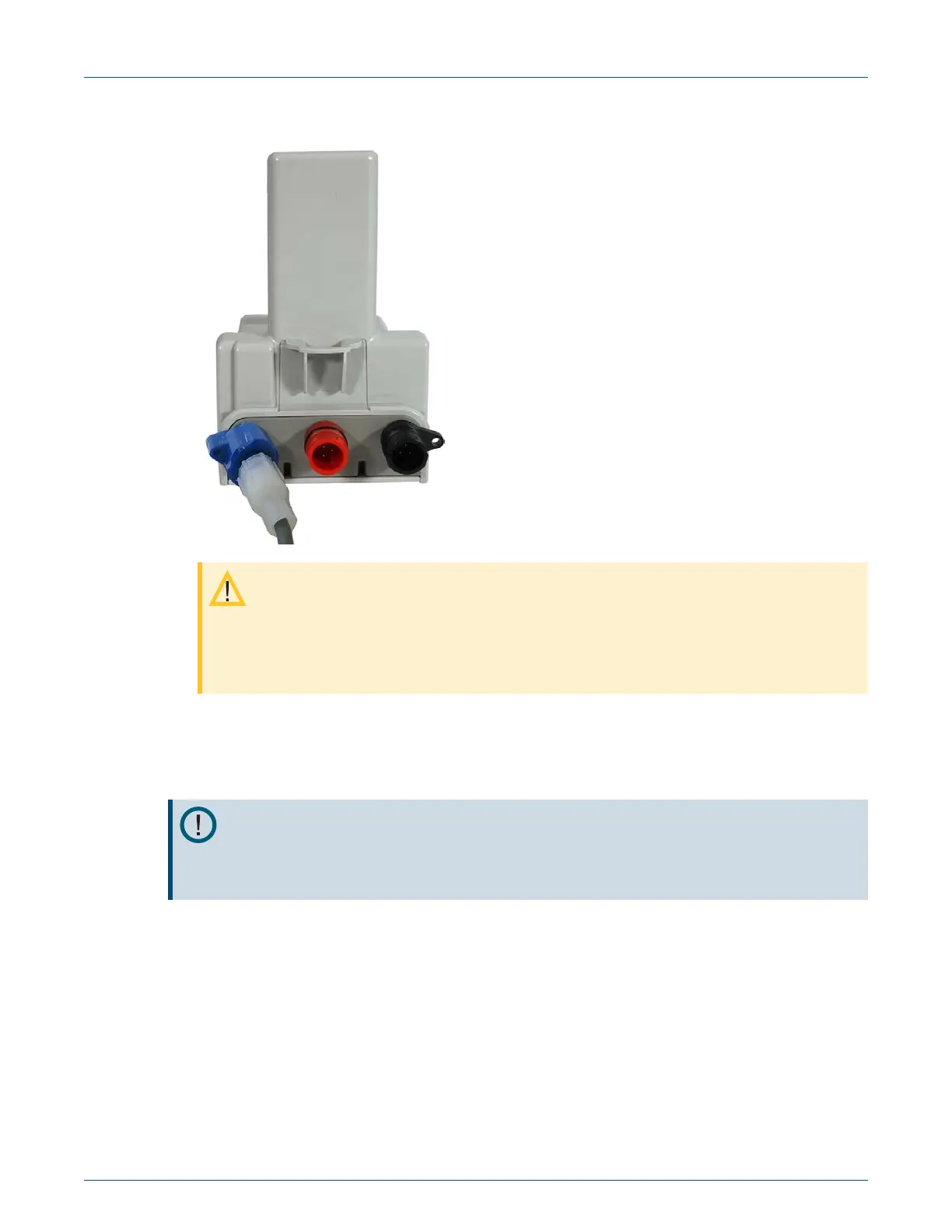

6. Rotate the connector locking ring until the security holes align.
Caution: Do not force the connector ends together. While you hold the
disconnect valve's connector, engage the pit module's connector by rotating the
locking ring until both connectors are securely connected. Twist only the
connector locking ring, not the body of the connector. Twisting the connector body
could damage the pit module and disconnect valve's connector pins.
Install an Itron security seal through the aligned security holes.
Optional Through-the-lid Remote Antenna Installation
Important! The remote antenna and rod mount adapter are required for all rod and
wall mount installations. For more information, see Pit module mounting
accessories.
This section provides antenna mounting and connection instructions for modules installed
through a pit lid. This device has been designed and approved per FCC and ISED rules, to
operate with the antennas listed below. Antennas not included in this list are strictly prohibited for
use with this device. The required antenna impedance is 50 ohms. To reduce potential radio
interference to other users, the antenna type and its gain should be chosen so that the equivalent
isotropically radiated power (e.i.r.p.) is not more than that permitted for successful
communication. The optional 900 MHz remote mount antenna provides increased RF range
coverage for the listed mobile applications where the meters are located deep in pit boxes.
08 January 2020 815-0006-01 Itron, Inc. Page 36 of 48
Template 4 îInstalling the OpenWay Riva 500W ERT Pit Module
