6.4 Removal of rotor
1.
Secure back pullout firmly to bench.
2. Lock shaft (122) to prevent turning and remove rotor nut set screws (222S), rotor nut, and O-ring.

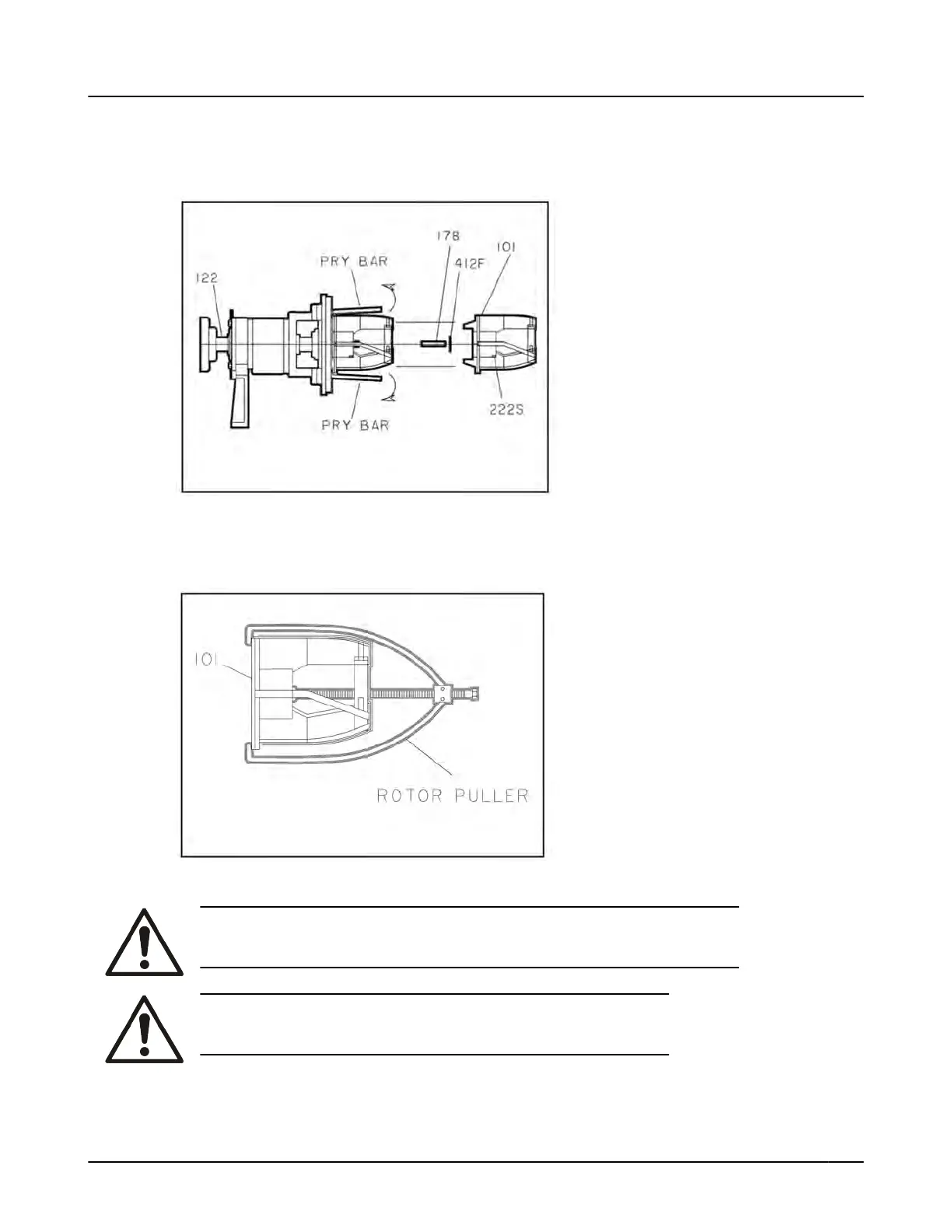

Figure 27: Removal of rotor using pry bar
3. Pry rotor (101) off shaft (182) using two bars opposite each other, placed between cover and rotor
shroud. Another method of removing the rotor is using a rotor puller.
Figure 28: Rotor puller
WARNING:
Do not use heat on the rotor to help remove, severe bodily injury could occur
.
CAUTION:
In order to prevent rotor damage, use pry points under rotor vanes.
6.4 Removal of rotor
3501 Installation, Operation, and Maintenance Instructions 39
