7.2 3501 Mixer cross sectional and parts list with materials of
construction

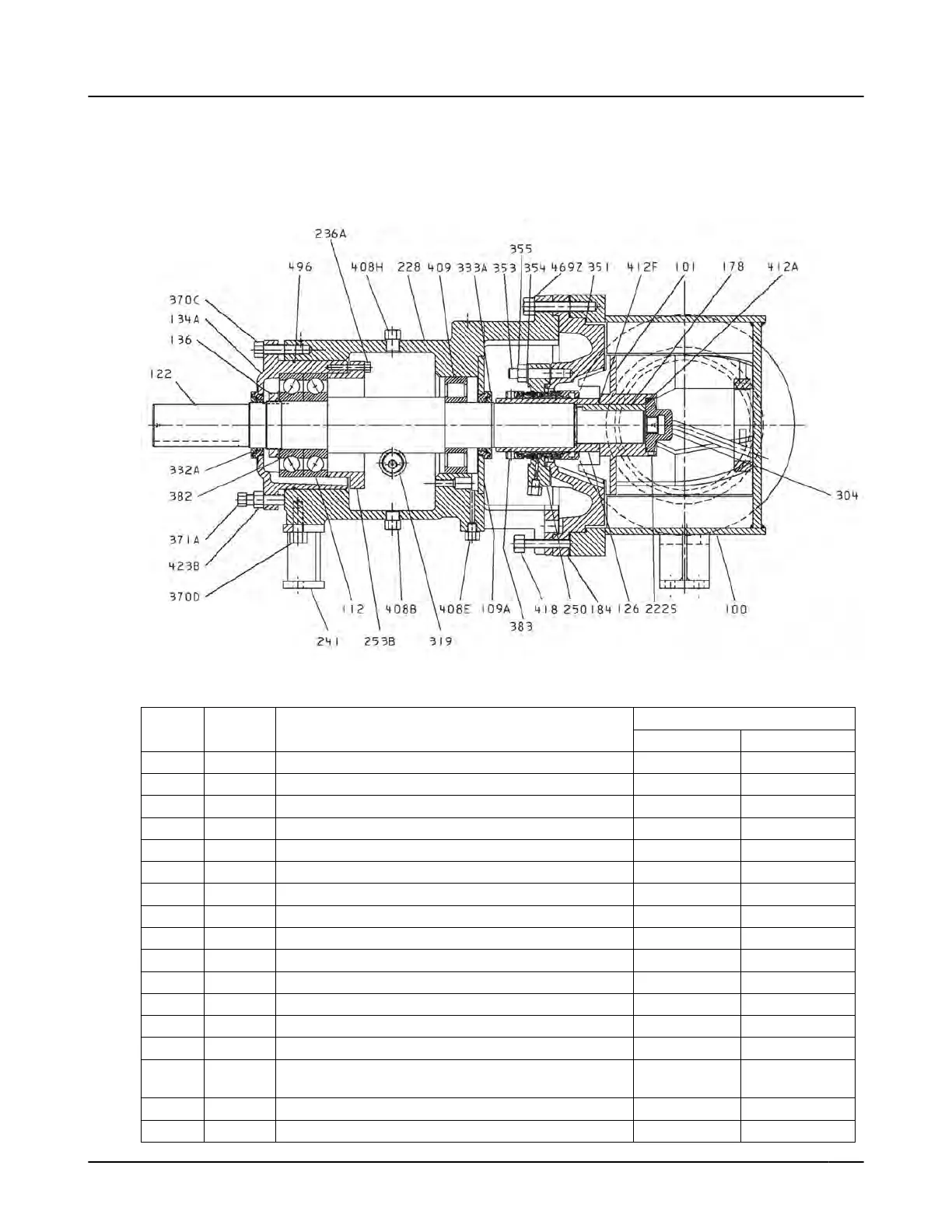

Mixer Cross Sectional
Table 11: 3501 Mixer parts list with materials of construction
Item No. Qty Per
Mixer
Part Name Material
316SS Titanium
100 1 Casing 316LSS Titanium
101 1 Rotor 316LSS Titanium
109A 1 Cover, End-Radial Cast Iron Cast Iron
112 2 Bearing, Thrust - Angular Contact Steel Steel
122 1 Shaft Steel Duplex
126 1 Shaft Sleeve 316SS Titanium
131 1 Foot, Casing (Not Shown) Steel Steel
134A 1 Housing, Bearing Cast Iron Cast Iron
136 1 Locknut, Bearing Steel Steel
174 1 Pipe, Chemical Injection (Not Shown) 316LSS Titanium
178 1 Impeller, Key 17- 4PH 17- 4PH
184 1 Seal Chamber 316SS Titanium
222S 2 Set Screw, Impeller Nut 316LSS Titanium
228 1 Frame, Bearing Cast Iron Cast Iron
236A 8 or 10 Socket Head Cap Screw - Bearing Retainer to Bearing
Housing
Steel Steel
241 1 Foot, Frame Steel Steel
253B 1 Retainer, Bearing Cast Iron Cast Iron
7.2 3501 Mixer cross sectional and parts list with materials of construction
3501 Installation, Operation, and Maintenance Instructions 57
