IVIEW HD-104 - 2-1 FRONT PANEL CONTROLS

HD-104 User Manual
7
CHAPTER 2 PANEL LOCATION

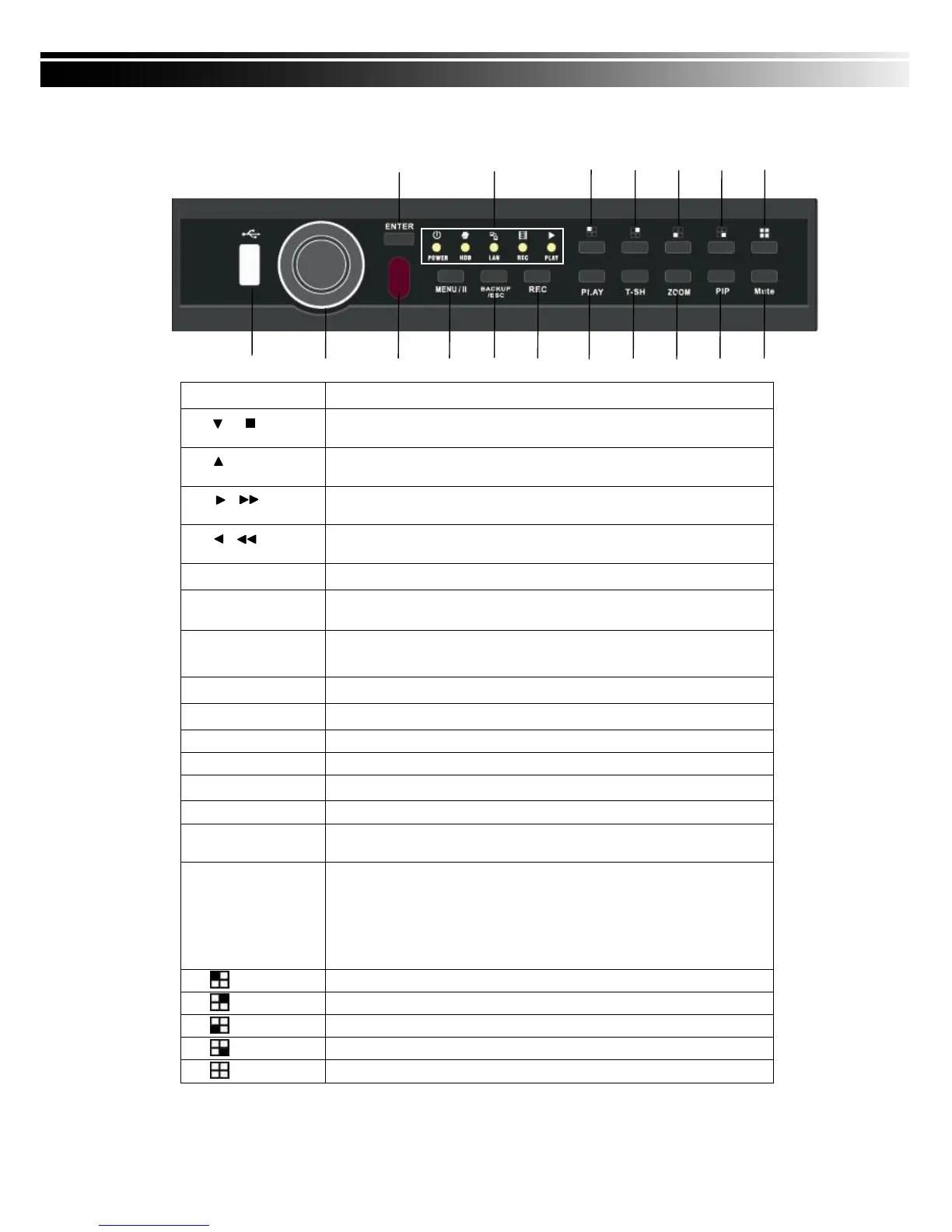

2-1 FRONT PANEL CONTROLS
⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱
① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪
① USB 2.0
Port for USB external devices.
② /
In SETUP mode, press to move cursor down. In PLAYBACK mode,
press to stop playing back.
/ SLOW
In SETUP mode, press to move cursor up. In PLAYBACK mode,
press to slow down.
/
In SETUP mode, press to increase value. In PLAYBACK mode
press to play forwards.
/
In SETUP mode, press to reduce value. In PLAYBACK mode,
press to play rewind.
③ IR Sensor
Input sensor for the remote control.
④ MENU
In LIVE mode, press to display menu. In PLAYBACK mode, press
to pause playback.
⑤ BACKUP/ESC
In LIVE mode, press to display the BACKUP menu. In SETUP
mode, press to return to previous page.
⑥ REC
Start or stop recording.
⑦ PLAY
Play back in normal speed.
⑧ T-SRH
Display the search menu.
⑨ ZOOM
In LIVE or PLAYBACK mode, enlarge the display of a channel.
⑩ PIP
In LIVE mode, display with picture in picture format.
⑪ MUTE
Enable / Disable Key Tone.
⑫ ENTER
In SETUP mode, press to enter values. In PLAYBACK mode,
switch between full, quad, 9-channel, 16-channel display in order.
⑬ LED Display
(From left to right)
Power: Power is on.
HDD: Hard disk is in use.
LAN: Connected to the internet (in red): Remote user logged in.
REC: Recording.
PLAY: Playing back.
⑭
In LIVE or PLAYBACK mode, switch to CH1。
⑮
In LIVE or PLAYBACK mode, switch to CH2。
⑯
In LIVE or PLAYBACK mode, switch to CH3。
⑰
In LIVE or PLAYBACK mode, switch to CH4。
⑱
In LIVE or PLAYBACK mode, switch to 4-channel display。
