HD-104 User Manual
8

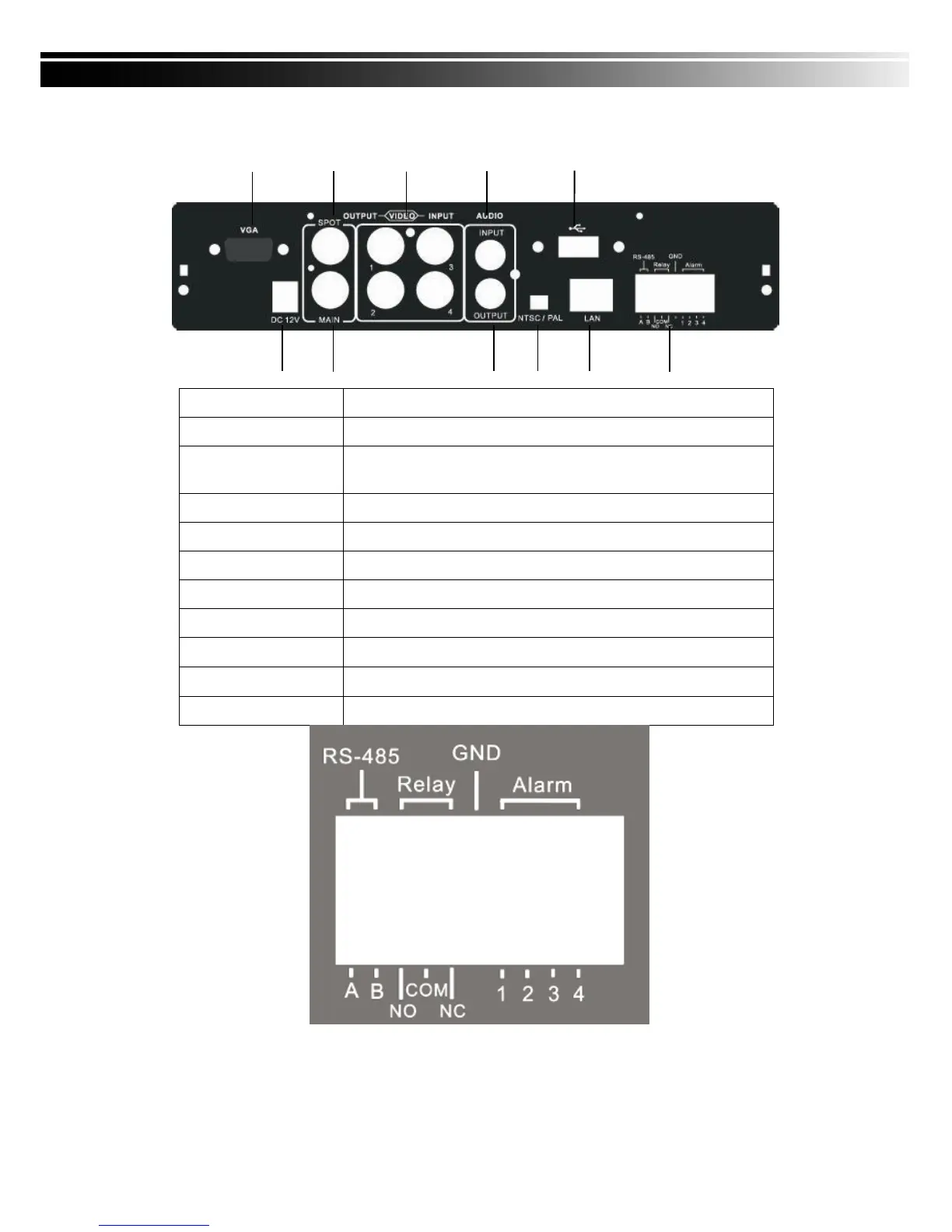

2-2 4CH REAR PANEL CONNECTORS
① ③ ⑤ ⑥ ⑧
② ④ ⑦ ⑨ ⑩ ⑪
① VGA
VGA port
② DC 12V
Socket for a DC 12V input.
③ SPOT monitor
BNC port to display full screen image of all installed cameras in
sequence.
④ MAIN monitor
BNC port for the main monitor.
⑤ VIDEO IN
BNC input ports for cameras, 4 in total.
⑥ AUDIO IN
RCA input port for audio signal.
⑦ AUDIO OUT
RCA output port for audio signal.
⑧ USB
USB port (Device USB Mouse)
⑨ NTSC／PAL
Switch between NTSC and PAL format.
⑩ LAN
Network port
⑪ EXTERNAL I/O
EXTERNAL I/O port (see below for pin definition)
