conMIG 300
Operating manual Page 25
22. Overview control functions
Functions MC 3 MC 4 MC 5
Step switched welding source (conMIG) ■ ■ ■
Manual mode ■ ■ ■
Automatic mode ■ ■
Wire feed rate tuning ■ ■
Material adjustment ■ ■
MIG mode ■ ■ ■
2-cycle, 4-cycle, spot welding ■ ■ ■
Special programs ■
Backup function for user programs ■
Gas test ■ ■ ■
Wire feed in ■ ■ ■
Welding power adjustable over material thickness, preview - step
switched
■ ■
Start speed (Sts) adjustable ■ ■ ■
Burn back time (bUb) adjustable ■ ■ ■
Gas post flow time (PoG) adjustable ■
Gas pre flow time (PrG) adjustable ■
Spot time (Spt) adjustable ■ ■ ■
Welding choke predefined ■ ■
Remote control function user adjustable ■
Welding cable length adjustable ■
Machine type adjustable ■
Update for welding curves ■ ■
Control unit lock / unlock ■
Fan controlled ■ ■ ■
Display HOLD time adjustable ■ ■ ■
Reset to factory settings ■ ■ ■

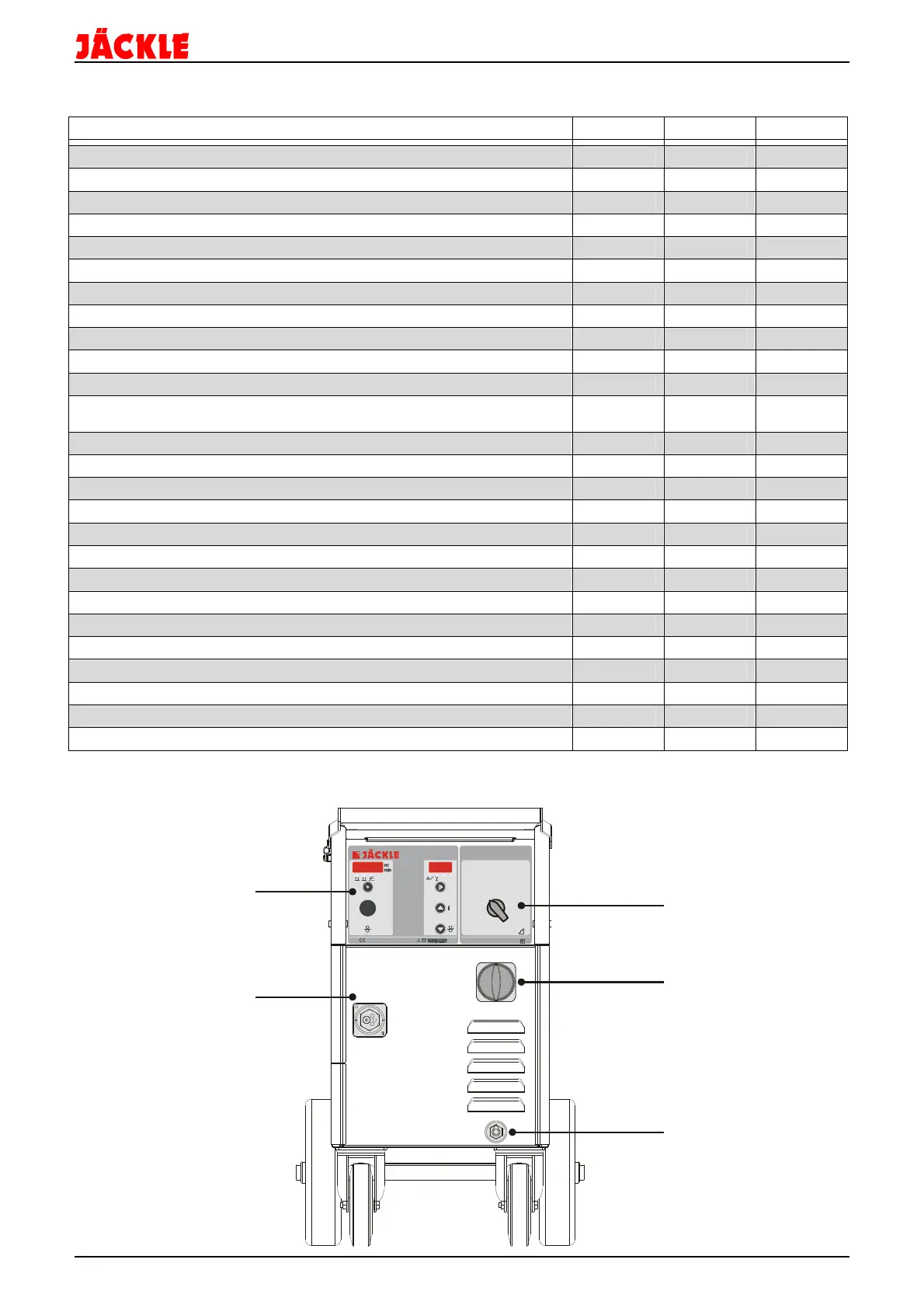

23. Control elements
1
2
3
4
5
6
7
8
9
10
11
12
conMIG 300MC 5
TEST
V A
Steuerbox
Controlbox
Brenner
Zentralanschluss
Central
torch connection
Stufenschalter
Stepswitch
Hauptschalter
Main switch
Massebuchse
Workpiece socket
