conMIG 300
Operating manual Page 26

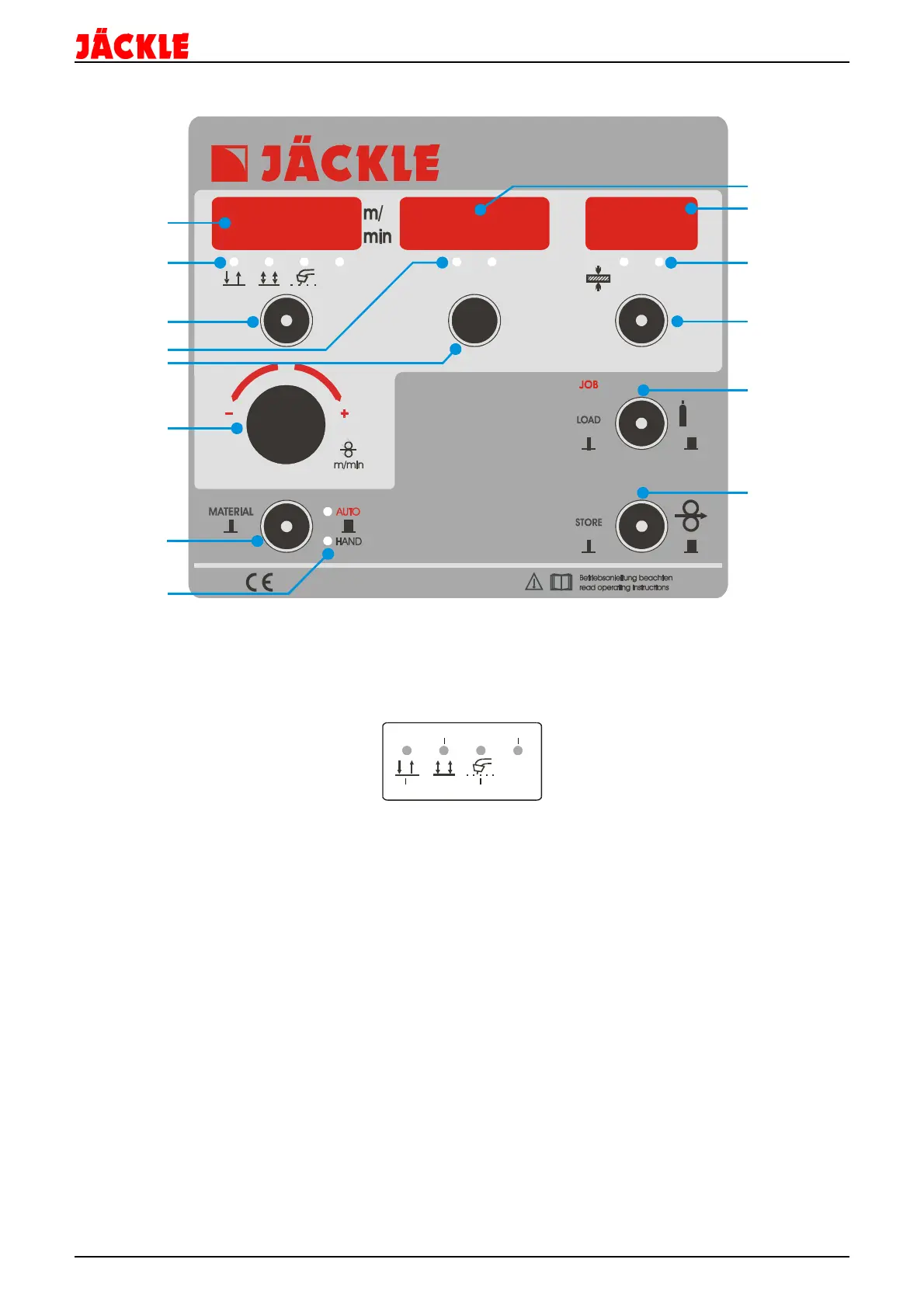

24. Control unit MC 3
S % sec
TEST
V
A
l/min
mm
MC 3
F
X
LADEN
SPEICHERN
1
2
3
4
6
7
8
5
9
10
11
12
13
14
1 – Display for wire speed (m/min) or wire speed correction from -50% to +50% flashing dot: HOLD Function
active
2 – LED display if 2-cycle, 4-cycle, 2-cycle - spot or a special function is active
2-cycle
4-cycle
spot
special
S
3 – Control key to change between 2-cycle, 4-cycle, 2-cycle - spot or a special function by tipping on the key
4 – LED display for the units % or seconds, if such a value is shown in the middle display (10)
5 – Control key Fx to adjust the welding parameters (e.g. start speed, ..- tipping shorter then 0,5 seconds) or the
machine options (e.g. remote control,…- tipping longer then 1 second)
6 – Turning knob to change the value in the left display, e.g. material, wire speed…
7 – Control key to open the material selection (tipping shorter then 0,5 seconds) or to change between automatic
or manual mode (tipping longer then 1 second)
8 – LED display, if automatic or manual mode is active
9 – Display for the welding voltage in volt, flashing dot: HOLD function active also for the function or option
values, or the preview of the welding step for conMIG machines
10 – Display for the welding current in ampere or the material thickness
11 – LED display for material thickness in mm
12 – Control key to change between the welding current and material thickness
13 – Control key to open and load the jobs (tipping shorter then 0,5 seconds), or to activate the gas test function
(tipping longer then 1 second)
14 – Control key to activate the wire-feed-in function or to store jobs, when this function is activated
