Jackson AJ-44 - Side Loader (Right to Left) Dimensions

AJ-44C Series Technical Manual 7610-001-76-22
Issued: 03-21-2006 Revised: N/A
SECTION 1: SPECIFICATION INFORMATION

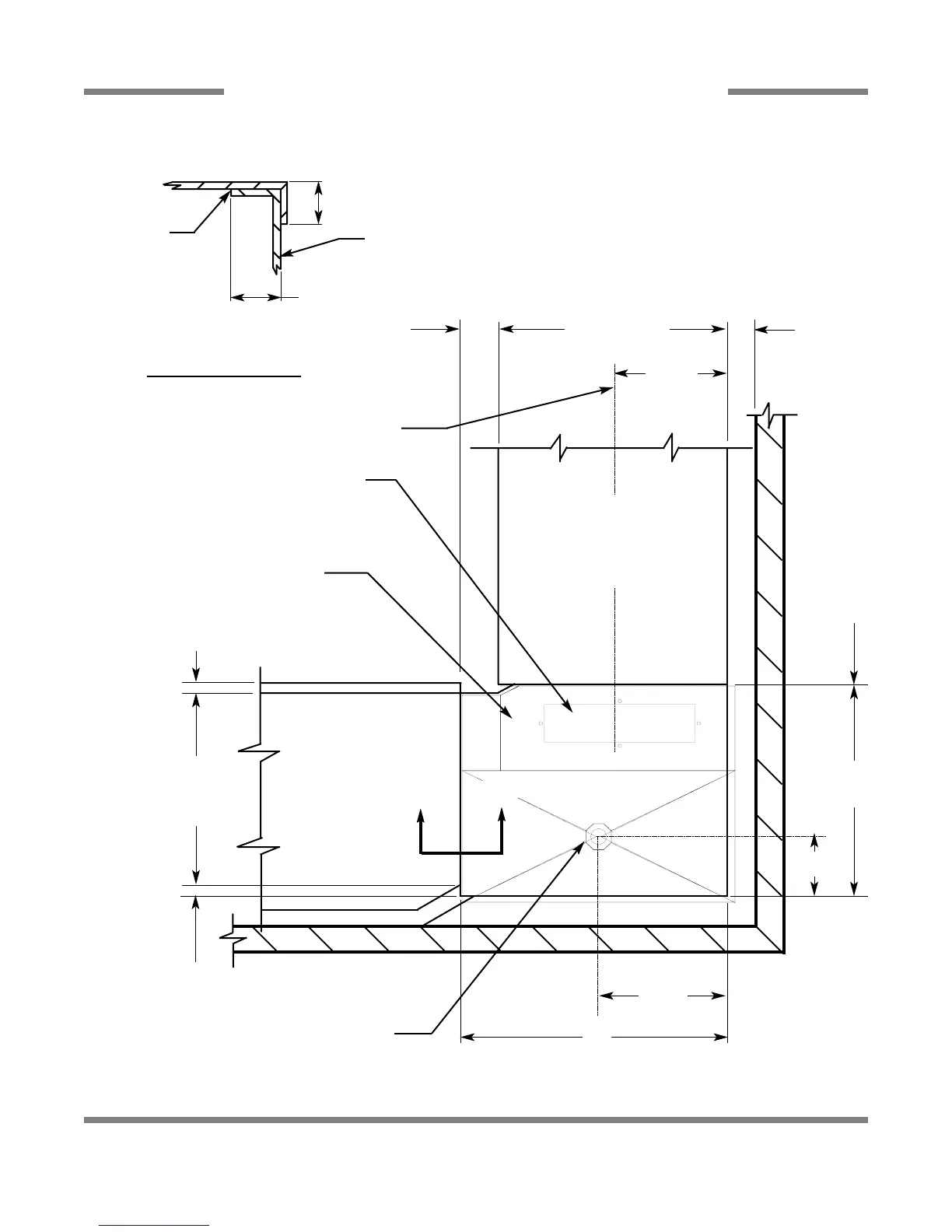

SIDE LOADER (RIGHT TO LEFT) DIMENSIONS
24
NOTE: ALL DIMENSIONS ARE TYPICAL.
14 1/2”
29”
8”*
23”**
CONVEYOR
DISHMACHINE
LENGTH
4 1/2”
MINIMUM
12 1/2”
25”
DISHWASHER
5”
1 1/2” TABLE
ROLL
20 3/4”
OPENING
1”
1/2”
MINIMUM
DISHTABLE
1/2”
WALL OF SIDE
LOADER
USE SILICONE
BETWEEN TABLE
AND LIP OF SIDE
LOADER TO PRE-
VENT LEAKAGE
SECTION “A-A”
CONVEYOR
DISHMACHINE
CENTER LINE
DISHMACHINE
VENT CONNECTION
OPENING
SPLASH
SHIELD
AA
1 1/2” DRAIN. CONNECTED TO
DISHMACHINE DRAIN LINE
* - 15” on 30” model
** - 30” on 30 “ model
