Jackson AJ-44 - Side Loader (Installed) Dimensions

AJ-44C Series Technical Manual 7610-001-76-22
Issued: 03-21-2006 Revised: N/A
SECTION 1: SPECIFICATION INFORMATION

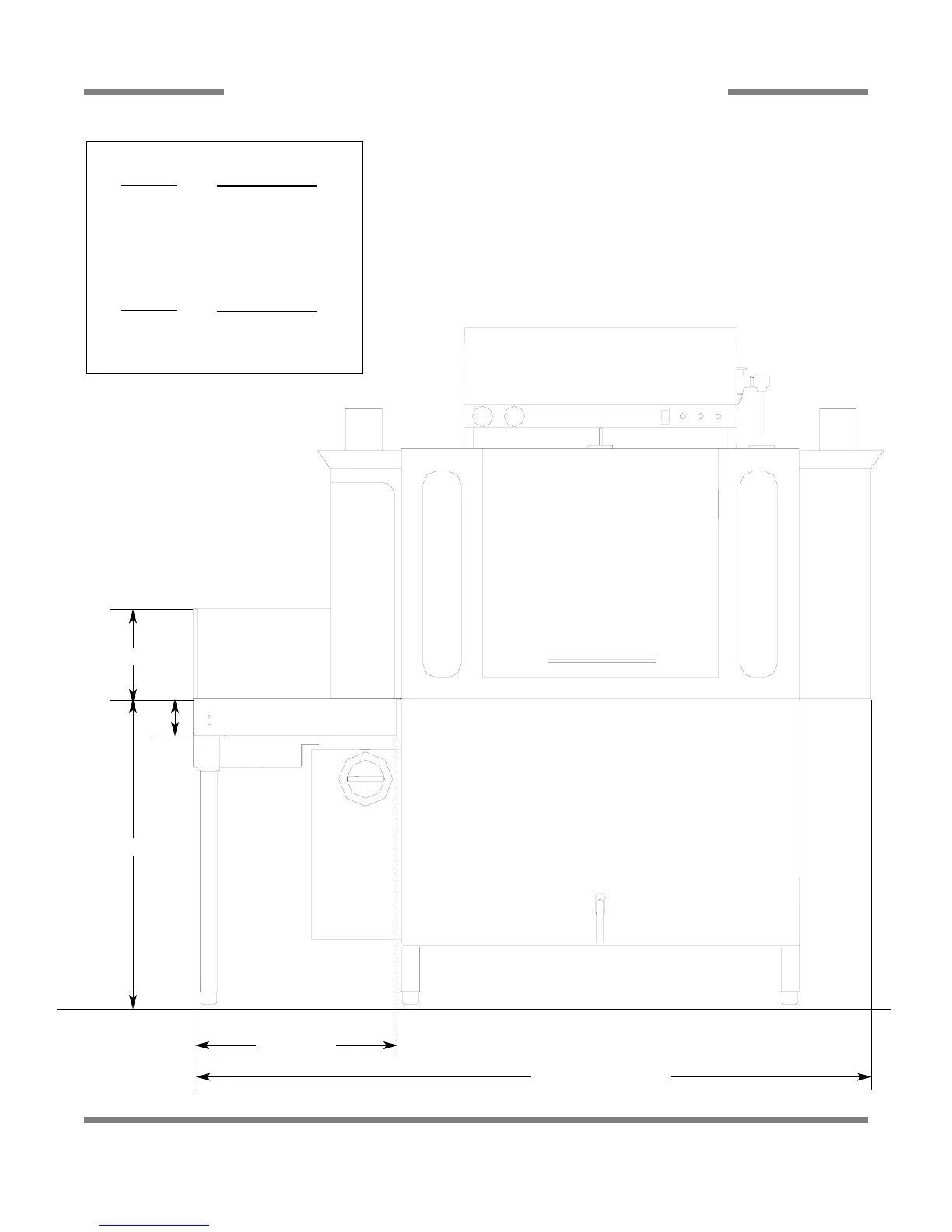

SIDE LOADER (INSTALLED) DIMENSIONS
25
Refer to chart above.
34”
23” or 30”
10”
4”
23” SIDE LOADER DIMENSIONS
30” SIDE LOADER DIMENSIONS
MODEL
AJ-44
AJ-66
AJ-80
MODEL
AJ-44
AJ-66
AJ-80
DIMENSIONS
75”
97”
111”
DIMENSIONS
82”
104”
118”
(Left to Right installation shown for reference.)
NOTE: ALL DIMENSIONS ARE TYPICAL.
