Jackson AVENGER HT-E - Parts; Machine Assemblies; Ht-E Machine Assembly

26
NUM
REVISION
CONTROL#
ORIG
DRWN
BY
DATE
PARTS LIST
REV:
PART NO:
SCALE:
TITLE:DRAWN BY:
DATE:
DATE:
DATE:
CHECKED BY:
APPROVED BY:
PART TO BE FREE FROM ALL BURRS AND SHARP EDGES
DO NOT SCALE DRAWING
THIS PRINT IS THE PROPERTY OF JACKSON WWS,INC. AND IS SUBJECT TO RECALL AND
RETURN ON DEMAND. ANY USE, DISCLOSURE, REPRODUCTION, DUPLICATION, TRACING,
OR USE OF INFORMATION CONTAINED HEREIN IN ANY MANNER DETRIMENTAL TO
THE
INTEREST OF JACKSON WWS,INC. IS FORBIDDEN. ALL RIGHTS OF DESIGN RESERVED.
R.M.I. NO:
GAUGE:
MATERIAL:
USED ON:
NEXT ASSM:
3D MODEL?
TOLERANCES
UNLESS OTHERWISE SPECIFIED
DIMENSIONS IN INCHES
3 PL DECIMALS 
2 PL DECIMALS 
FRACTIONS 1/32
ANGLES
1/2
LET
REVISION
CONTROL#
ORIG
DRWN
BY
DATE
05700-004-00-98
A-MACHINE,AVENGER HT ES 208/60/1
Roger Cox
10/3/2012
Yes
E
D
W
O
#
:
NUM
REVISION
CONTROL#
ORIG
DRWN
BY
DATE
PARTS LIST
REV:
PART NO:
SCALE:
TITLE:DRAWN BY:
DATE:
DATE:
DATE:
CHECKED BY:
APPROVED BY:
PART TO BE FREE FROM ALL BURRS AND SHARP EDGES
DO NOT SCALE DRAWING
THIS PRINT IS THE PROPERTY OF JACKSON WWS,INC. AND IS SUBJECT TO RECALL AND
RETURN ON DEMAND. ANY USE, DISCLOSURE, REPRODUCTION, DUPLICATION, TRACING,
OR USE OF INFORMATION CONTAINED HEREIN IN ANY MANNER DETRIMENTAL TO
THE
INTEREST OF JACKSON WWS,INC. IS FORBIDDEN. ALL RIGHTS OF DESIGN RESERVED.
R.M.I. NO:
GAUGE:
MATERIAL:
USED ON:
NEXT ASSM:
3D MODEL?
TOLERANCES
UNLESS OTHERWISE SPECIFIED
DIMENSIONS IN INCHES
3 PL DECIMALS 
2 PL DECIMALS 
FRACTIONS 1/32
ANGLES
1/2
LET
REVISION
CONTROL#
ORIG
DRWN
BY
DATE
05700-004-00-98
A-MACHINE,AVENGER HT ES 208/60/1
Roger Cox
10/3/2012
Yes
E
D
W
O
#
:
1

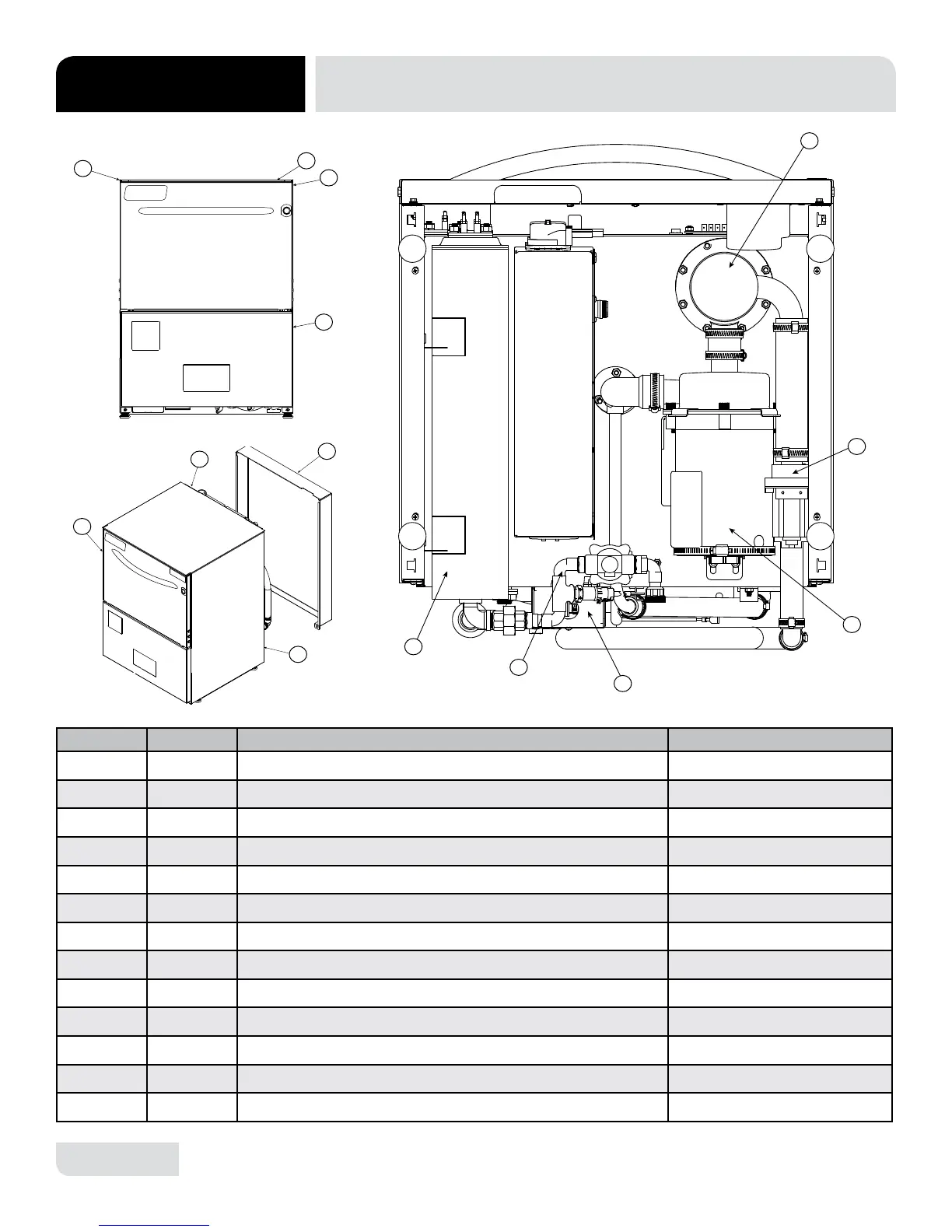

ITEM QTY DESCRIPTION PART NUMBER
1 1 Left Shroud 05700-003-37-04
2 1 Kick Panel Assembly (see pg. 28) 05700-004-05-62
3 1 Door Assembly (see pg. 32) 05700-004-04-21
4 1 Shroud Top 05700-003-37-06
5 1 Shroud Right 05700-003-37-05
6 1 Sump (see pg. 34) 05700-004-02-94
7 1 Drain Pump (see pg. 34) 04730-003-91-41
8 1 Wash Motor Assembly (see pg. 34) 05700-004-04-04
9 1 Terminal Block Box Cover (see pg. 26) 05700-003-27-70
10 1 Inlet Plumbing - 208V 05700-004-09-03
1 Inlet Plumbing - 480V 05700-004-11-43
11 1 Booster Assembly 05700-004-01-15
12 1 Optional Rear Dress Panel 05700-004-23-52
HT-E MACHINE ASSEMBLY
PARTS
4
3
2
3
4
5
12
6
7
9
10
11
8
