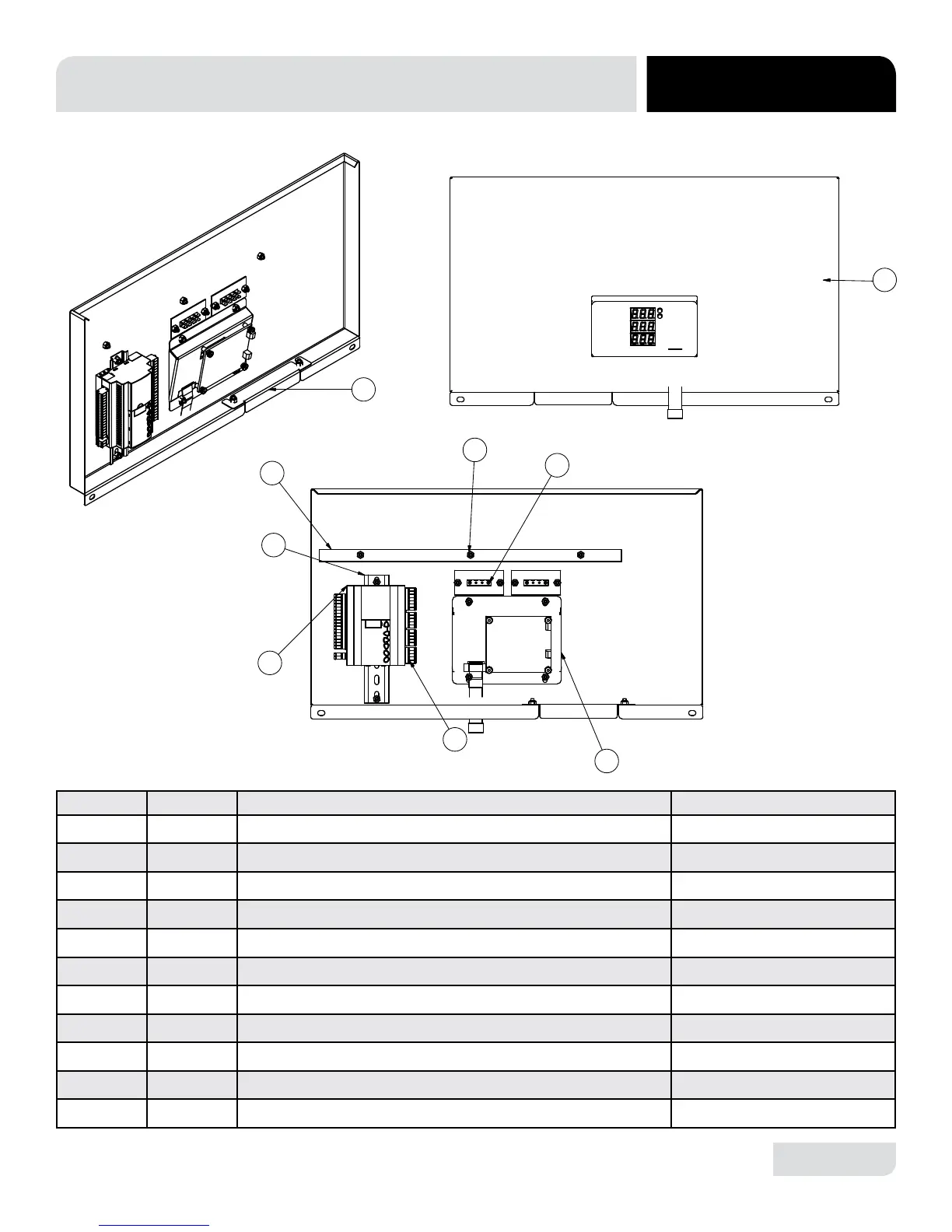

Jackson AVENGER HT-E - Terminal Block Box Assembly

31
CONTROL KICK PANEL
PARTS
1
2
3
NOTE:
DIELECTRIC COVER HIDDEN
FOR CLARITY
4
6
5
7
8
9
1
2
3
NOTE:
DIELECTRIC COVER HIDDEN
FOR CLARITY
4
6
5
7
8
9
ITEM QTY DESCRIPTION PART NUMBER
1 1 A-Control Panel, Avenger HT-ES 05700-004-00-10
2 2 Terminal Board, 4 POS JM96054 05940-021-94-85
3 16 Nut, Lock 10-24 S/S Hex w/ Nylon Insert 05310-373-01-00
4 1 Cover, Control Dielectric 05700-004-06-12
5 2 Power Supply, 100-240VAC 12 DC 1.2A 15 Watt 05950-004-11-16
6 1 PLC, Crouzet Controller 05945-004-01-05
7 1 Din Rail, 8" Long 05700-004-09-42
8 1 Terminals, 88970317 M3 MA SET XD26 RBT 05700-004-05-08
9 1 W- Kick Panel, Avenger HT ES 05700-004-04-28
10 1 F-Cover, Kick Panel 05700-004-11-27
11 1 Harness, Ribbon to PLC (not shown) 05999-004-10-49
1
2
3
NOTE:
DIELECTRIC COVER HIDDEN
FOR CLARITY
4
6
5
7
8
9
