Jackson CONSERVER XL-E - Table Dimensions

07610-003-92-84-Q
5
Please remove the front dress panel from the dishmachine if mounting dishmachine for a
corner installation and attaching side tables. Corner installation will trap panel making it difcult to
remove.
SPECIFICATIONS

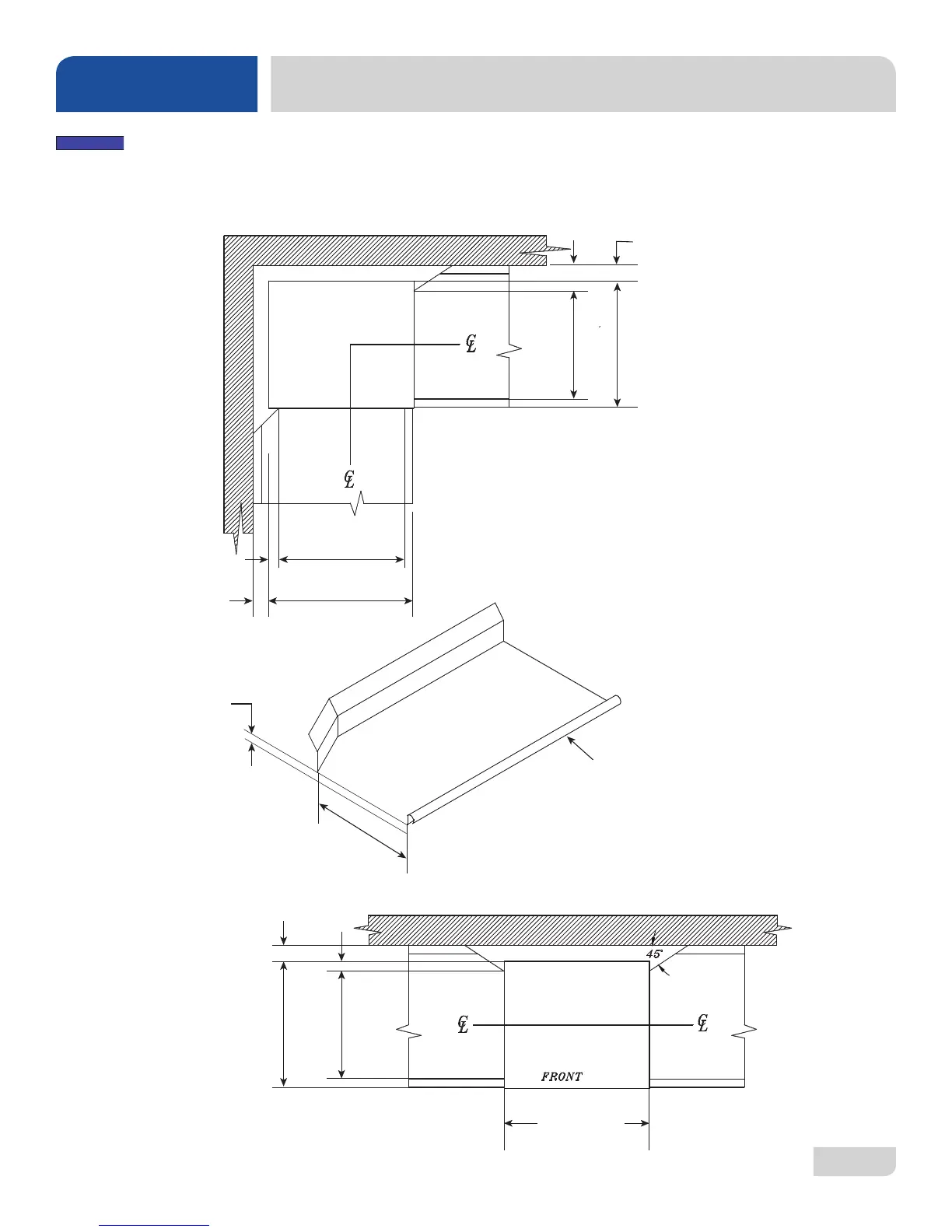

TABLE DIMENSIONS
NOTICE
20 1/2” (52.1 cm)
OPENING
25 1/4”
(64.1 cm)
20 1/2” (52.1 cm)
OPENING
25 1/4”
(64.1 cm)
2 1/2” (6.4 cm)
4” (10.2 cm)
MINIMUM
4” (10.2 cm)
MINIMUM
2 1/2”
(6.4 cm)
3/4” (1.9 cm)
20 1/2”
(52.1 cm)
1 1/2” (3.81 cm) ROLL
TABLE DIMENSIONS
CONNECTION TO DISHMACHINE
TABLE DIMENSIONS
CORNER INSTALLATION
4” (10.2 cm)
MINIMUM
2 1/2”
(6.4 cm)
25 1/4”
(64.1 cm)
20 1/2” (52.1 cm)
OPENING
25 1/4” (64.1 cm)
TABLE DIMENSIONS
STRAIGHT THROUGH INSTALLATION
