Jackson CONSERVER XL-E - Wash Manifold Assembly

07610-003-92-84-Q
45
ITEM QTY DESCRIPTION PART NUMBER
1 2 Bolt, 3/8-16 x 3/8" SS 05306-011-36-95
2 1 Casting, Upper Wash Manifold 05700-031-34-82
3 4 3/8" Lockwasher, SS 05311-276-01-00
4 4 3/8" Hex Nut, SS 05310-276-01-00
5 2 Bolt, 3/8-16 x 1 1/4" SS 05305-276-10-00
6 1 Lower Wash Manifold 05700-003-78-40
7 1 Gasket, Wash Manifold 05700-111-35-03
8 2 3/8" Bevel, Square 05311-011-35-36
9 2 O-ring 05330-111-35-15
10 1 Wash Manifold Tube 05700-003-58-89
10a 1 Wash Manifold Tube High Hood (Not Shown) 05700-004-25-71
3
9
3
4
9
7
6
5
4
2
1
10
10A
8

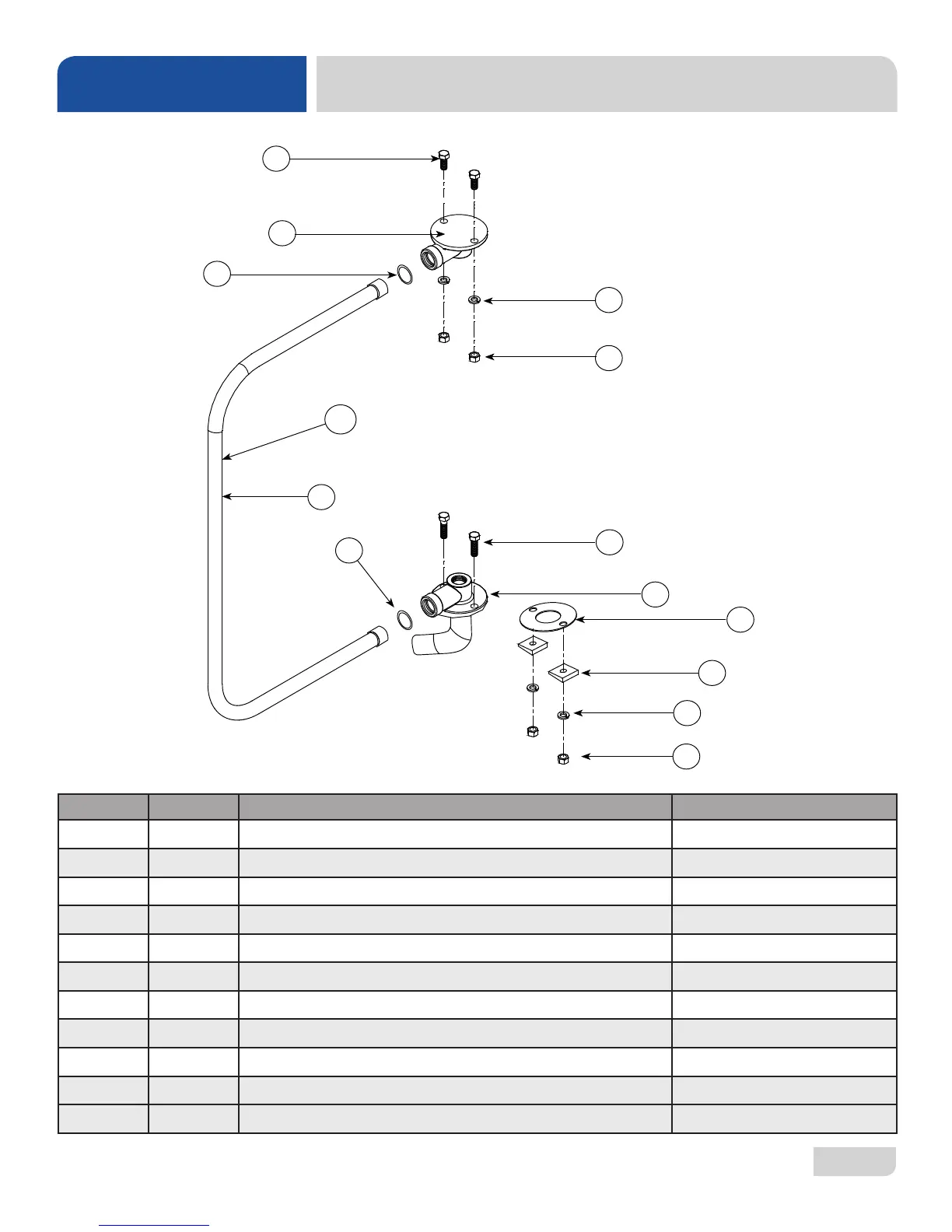

WASH MANIFOLD ASSEMBLY
PARTS
