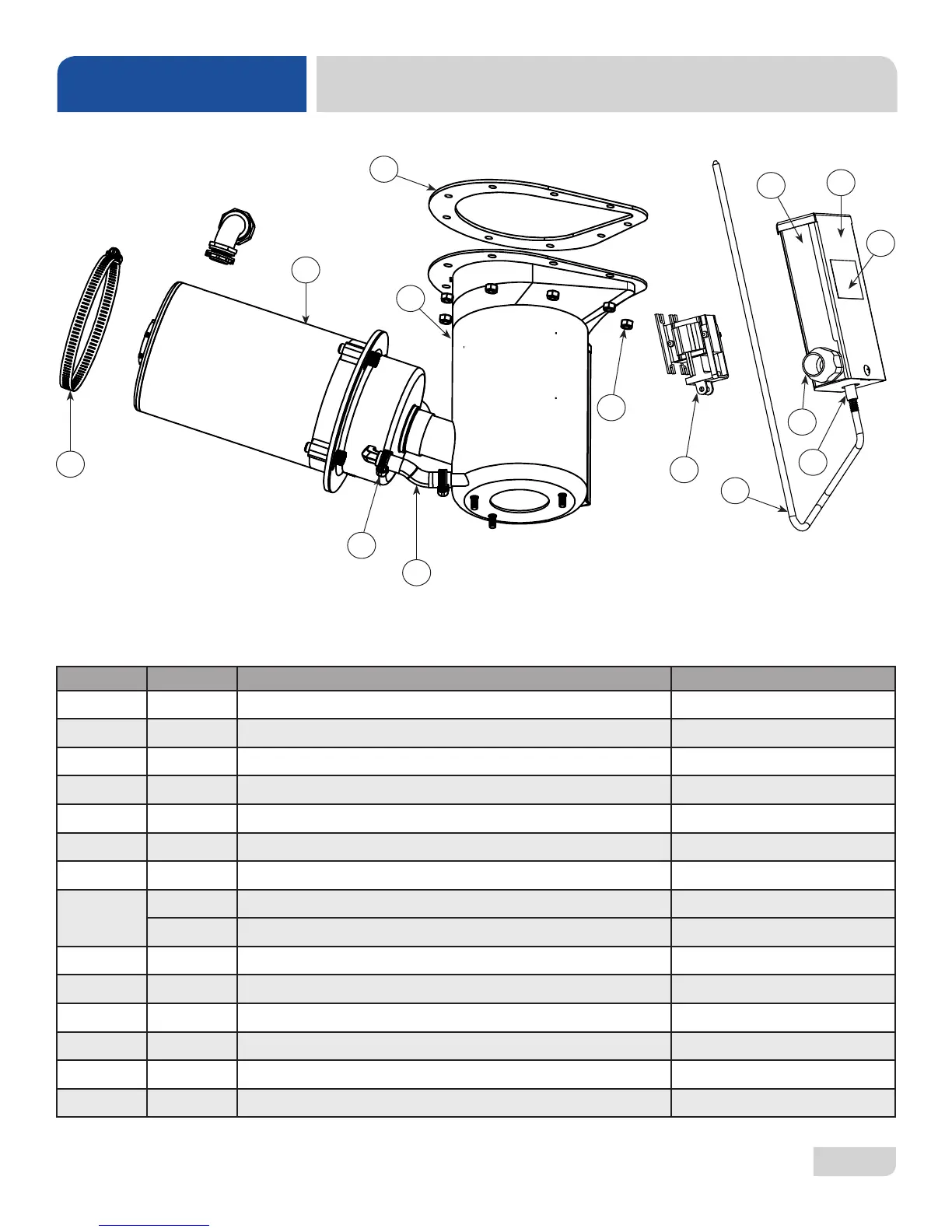

Jackson CONSERVER XL-E - Wash Sump Assembly

07610-003-92-84-Q
47
ITEM QTY DESCRIPTION PART NUMBER
1 1 Pump and Motor Assembly 06105-004-24-80
2 1 Pump Drain Hose 05700-004-08-52
3 2 Clamp, 7/16” to 25/32” 04730-011-36-05
4 1 Clamp, 5 5/8” to 6” 04730-011-34-90
5 1 Sump Weldment 05700-003-78-41
6 1 Sump Gasket 05330-003-78-31
7 9 Lock Nut, 1/4-20 S/S 05310-374-01-00
8
1 Drain Solenoid, 115 V 04810-200-11-00
1 Drain Solenoid, 208/230 V 04810-111-87-74
9 1 Drain Link See next page.
10 1 Connection, Drain Link See next page.
11 1 Fitting, 1/2" Plastic 05975-011-45-13
12 1 Box, Drain Solenoid 05700-003-78-46
13 1 Cover, Drain Solenoid 05700-003-78-48
14 1 Decal, Warning-Disconnect Power 09905-100-75-93
1
4
2
5
6
7
3
WASH SUMP ASSEMBLY
PARTS
8
9
10
11
12
13
14
