07610-003-92-84-Q
12
INSTRUCTIONS
INSTALLATION

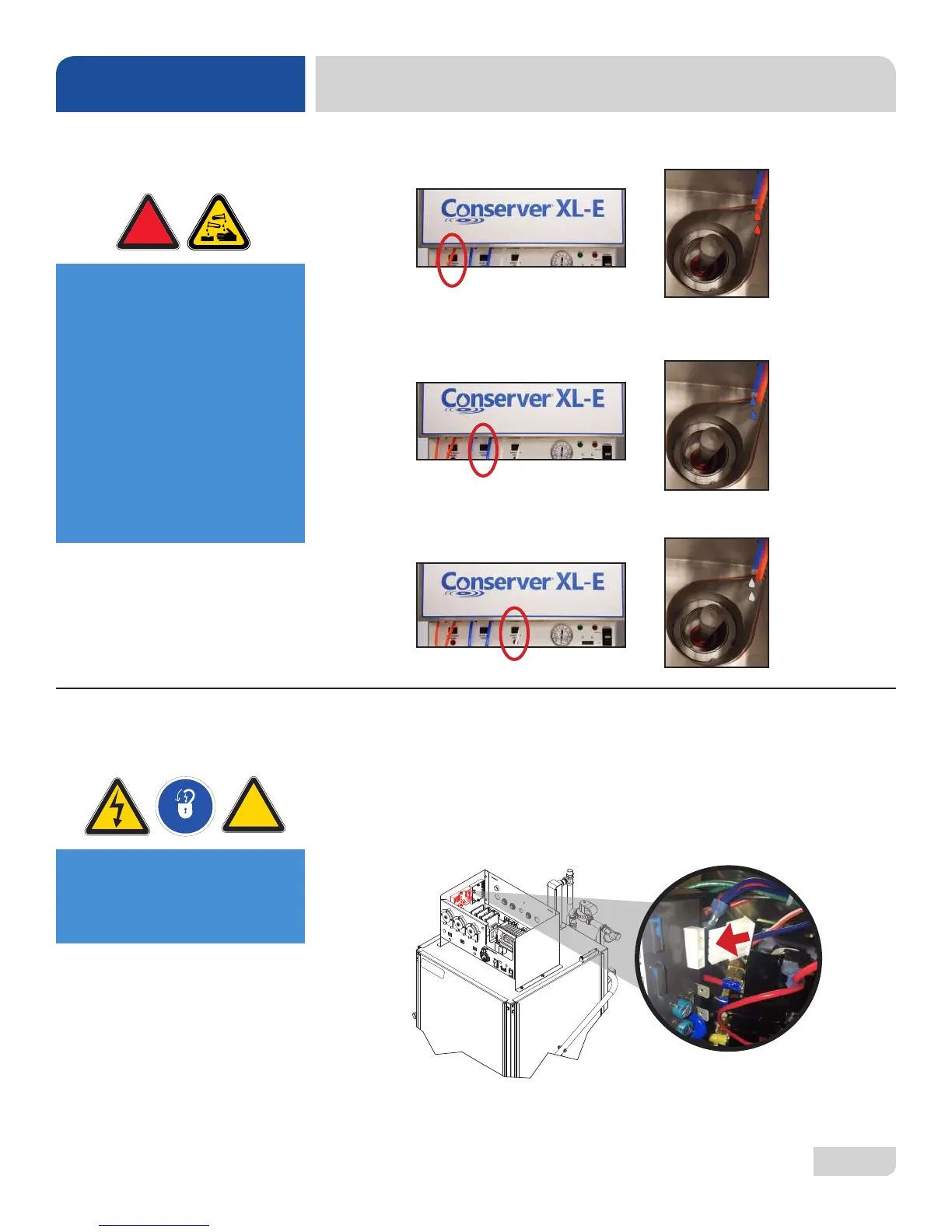

PRIMING CHEMICAL
FEEDER PUMPS
5. Rinse-aid is dispensed as required into the nal rinse. The amount of rinse-aid
might need to be adjusted depending on water hardness and results.
6. Sanitizer is dispensed into the nal rinse. The amount of sanitizer might need to
be adjusted depending on the concentration and type of sanitizer used.
7. Refer to CAM Timer Operation section for instructions on adjusting the chemical
feeder pumps.
1. Disconnect electrical power at the breaker or disconnect switch and tag-out in
accordance with procedures and codes.
2. Remove the control box top.
3. Locate the loose connector with the orange/white and blue/black wires.
4. Plug the loose connector into the empty connector on the right side of the ELAN
thermostat board.
5. Replace the control box top.
6. Reconnect electrical power at the breaker or disconnect switch in accordance
with procedures and codes.
WARNING! Some of the
chemicals used in
dishwashing might cause
chemical burns if they
come in contact with skin.
Wear protective gear when
handling these chemicals.
If any contact with skin
occurs, immediately
follow the treatment
instructions provided
with the chemicals.
!
WARNING
HEATER CONTACTOR
WIRES (LTH ONLY)
!
CAUTION
Heater contactor wires
must NOT be connected
before water lls the unit
the rst time!
