Electrical and grounding conductors must comply with the applicable portions of the
National Electric Code ANSI/NFPA 70 (latest edition) and/or other electrical codes.
The data plate is on the ride side of the door. Refer to the data plate for machine operating
requirements, machine voltage, total amperage, and serial number.

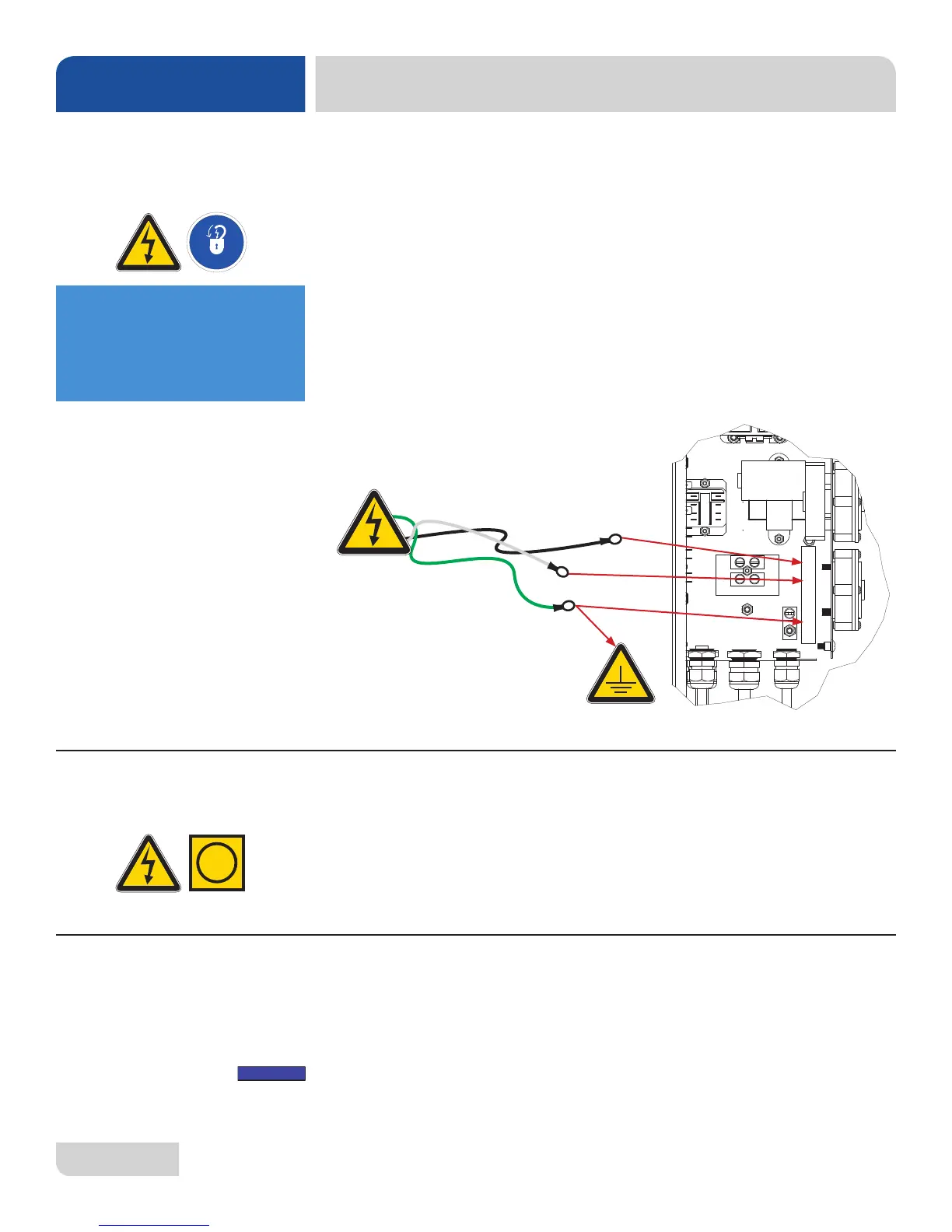

Remove the electrical box cover. This will require removing the screws at the bottom
with a phillips screwdriver and lifting it up and off. Install 3/4” conduit from the underside
of the machine to the hole in the rear of the electrical box. Route power wires and
connect to power block and grounding lug. Install the service wires (L1 and L2) to the
appropriate terminals as they are marked on the terminal block. Install the grounding
wire into the lug provided. It is recommended that “DE-OX” or another similar anti-
oxidation agent be used on all power connections.
Ensure that the "Power" switch is in the "OFF" position and apply power to dishmachine.
Check the incoming power at the terminal block and ensure it corresponds with the
voltage listed on the data plate. If not, contact a qualied service agency to examine
the problem. Do not run dishmachine if voltage is too high or too low. Shut-off the
service breaker and advise all proper personnel of the location of the breaker and any
problems. Replace the electrical box cover and tighten-down the screws.
This is a commercial dishmachine and reaches temperatures that can exceed
those generated by a residential machine. Surrounding countertops, cabinets, ooring
material, and suboor material must be designed and/or selected with these higher
temperatures in mind.
NOTE: Any damage to surrounding area that is caused by heat and/or moisture
to materials that are not recommended for higher temperatures will not be covered
under warranty or by the manufacturer.
INSTRUCTIONS
INSTALLATION
ELECTRICAL POWER
CONNECTIONS
Disconnect electrical
power at the breaker or
disconnect switch and
tag-out in accordance with
procedures and codes.
SURROUNDING
AREA
VOLTAGE CHECK
NOTICE
i
L1 L2 GRND
