3-36 4271491-Second Edition
GENSET AND BATTERY PACK
3

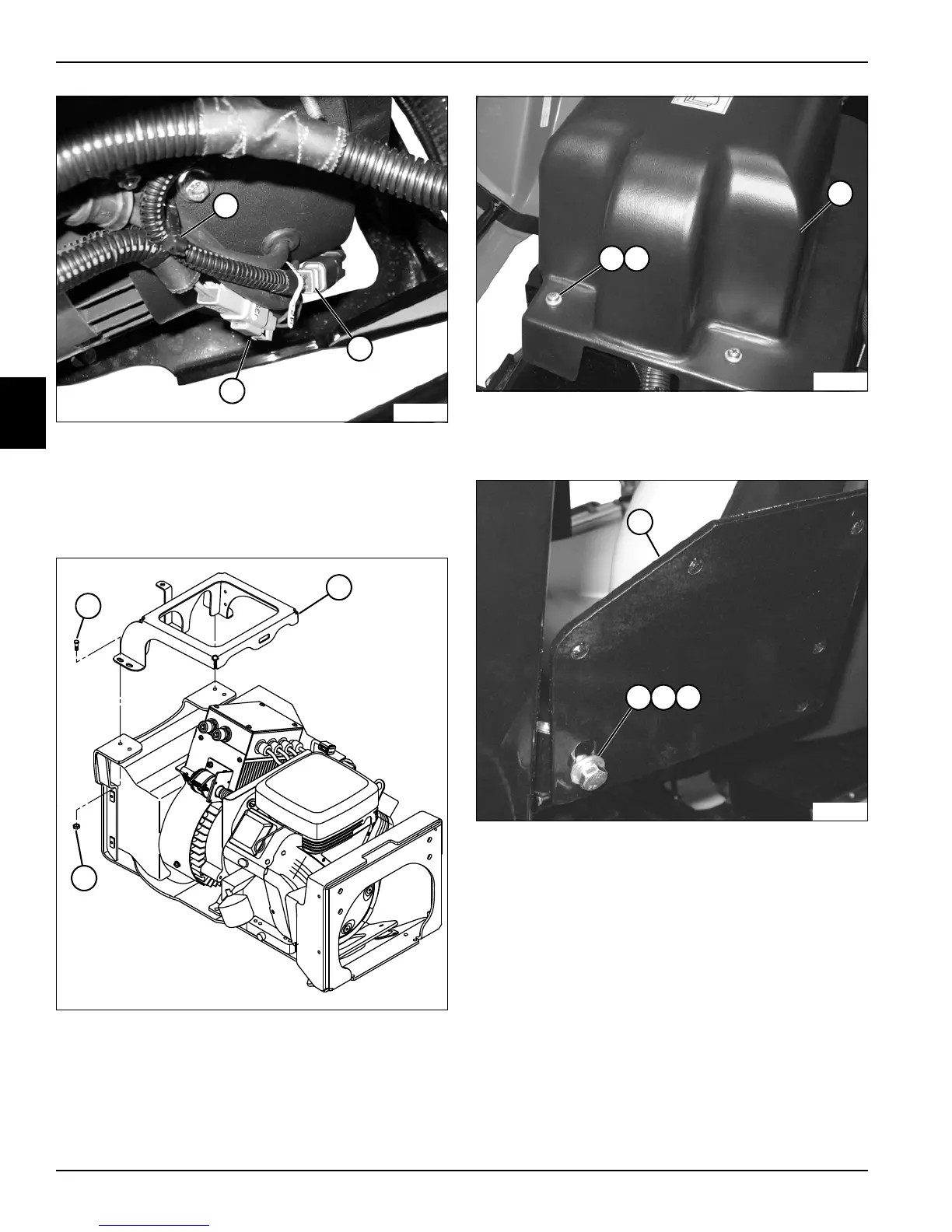

Figure 3-59
23. Tag and disconnect genset connector (17) and
genset fan connector (16).
24. Cut cable tie (15).
25. Move the wiring harness away from the genset.
Figure 3-60
26. Remove four screws (18)and nuts (20), and remove
fuel tank bracket (19 ).
Figure 3-61
27. Remove four screws (21) and flat washers (22), and
remove rear controller cover (23).
Figure 3-62
28. Remove screw (25), lock washer (26), and flat
washer (27).
29. Repeat step 28 for other side of machine, and
remove crossmember (24).
