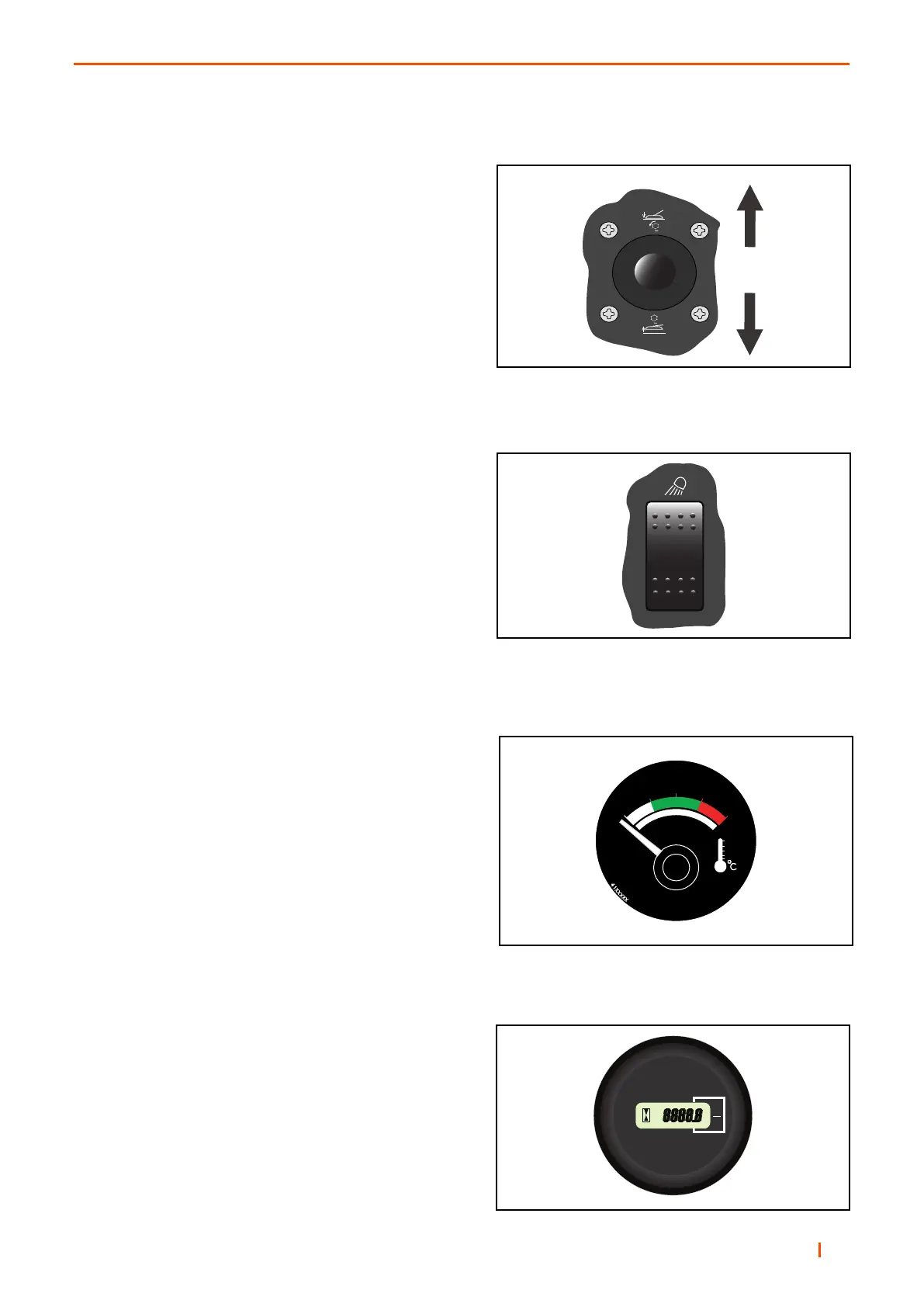

5.2.D JOYSTICK ________________________________________________________
The Mow/ Lift Joystick lowers and raises the cutting heads.
To Lower the Heads:
Move the joystick forwards (A) to lower the cutting heads. If
reel enable switch is on, reel rotation starts when the heads
are lowered.
To Raise the Heads:
Move the joystick backwards (B) to raise the cutting heads.
Reel rotation stops when the heads are raised.
5.2.E WORKING LIGHTS __________________________________________________
Colour Black.
The Working light Switch turns the two working lamps on
and off.
5.2.F ENGINE COOLANT TEMPERATURE ____________________________________
Gauge indicates engine coolant temperature.
5.2.G HOUR METER ______________________________________________________
Records the number of hours the engine has run. Use the
hour meter to manage a good scheduled maintenance
program (refer to the Maintenance Guide 7.2).
