en 70

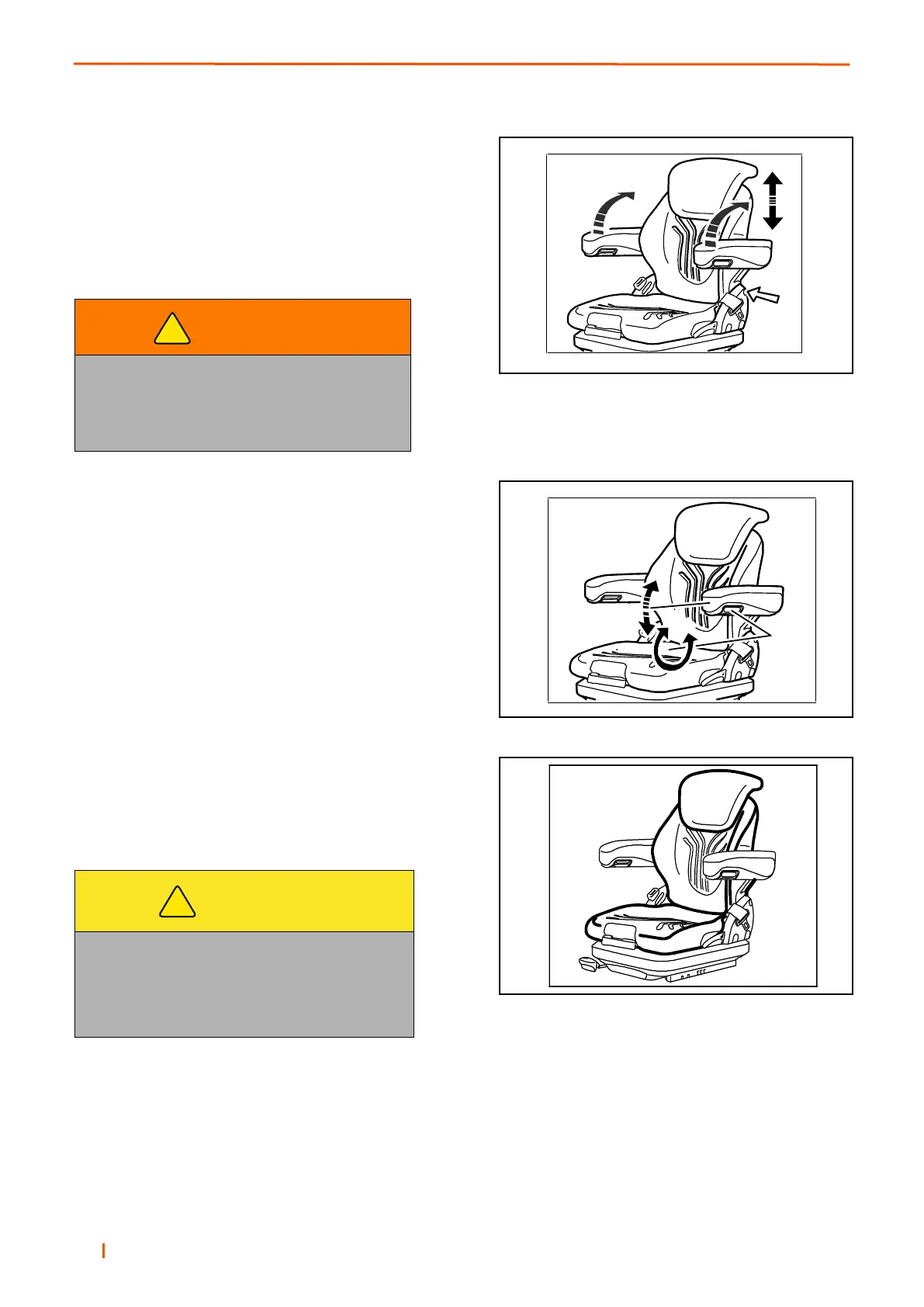

8 ADJUSTMENTS
Armrests
The armrests can be folded back if required and the height in-
dividually adjusted. To adjust the armrests for height, sepa-
rate the round cap (see arrow) from the cover, loosen the
hexagon nut (size 13 mm) behind it and adjust the armrests
to the desired position (5-steps) and tighten the nut again
(25Nm). Replace the cap onto the nut.
Armrest adjustment
The inclination of the armrests can be modified by turning the
adjustment knob. When turning the knob to the outside (+) the
front part of the armrest will be lifted, when turning the knob
to inside (-) it will be lowered.
Maintenance
Dirt can impair the function of the seat, So make sure you
keep your seat clean. Upholstery does not need to be re-
moved from the seat frame for cleaning.
ATTENTION: Do not clean the seat with a pressure washer.
When cleaning the upholstery, make sure the upholstery is not soaked.
Use standard commercially available upholstery or plastics cleaning agent. Test first for compatibility on a small,
concealed area.
WARNING
If the belt roller is fitted, do not install the
armrest in the lowest position as otherwise
the belt roller might not function correctly.
Carry out a functional test of the belt roller.
CAUTION
Take care with the backrest - it may jerk forward
and cause injury.
When cleaning the backrest cushion, the back-
rest must be held in place when operating
the backrest lever.
!
!
770
767
+
-
768
