9 ACCESSORIES

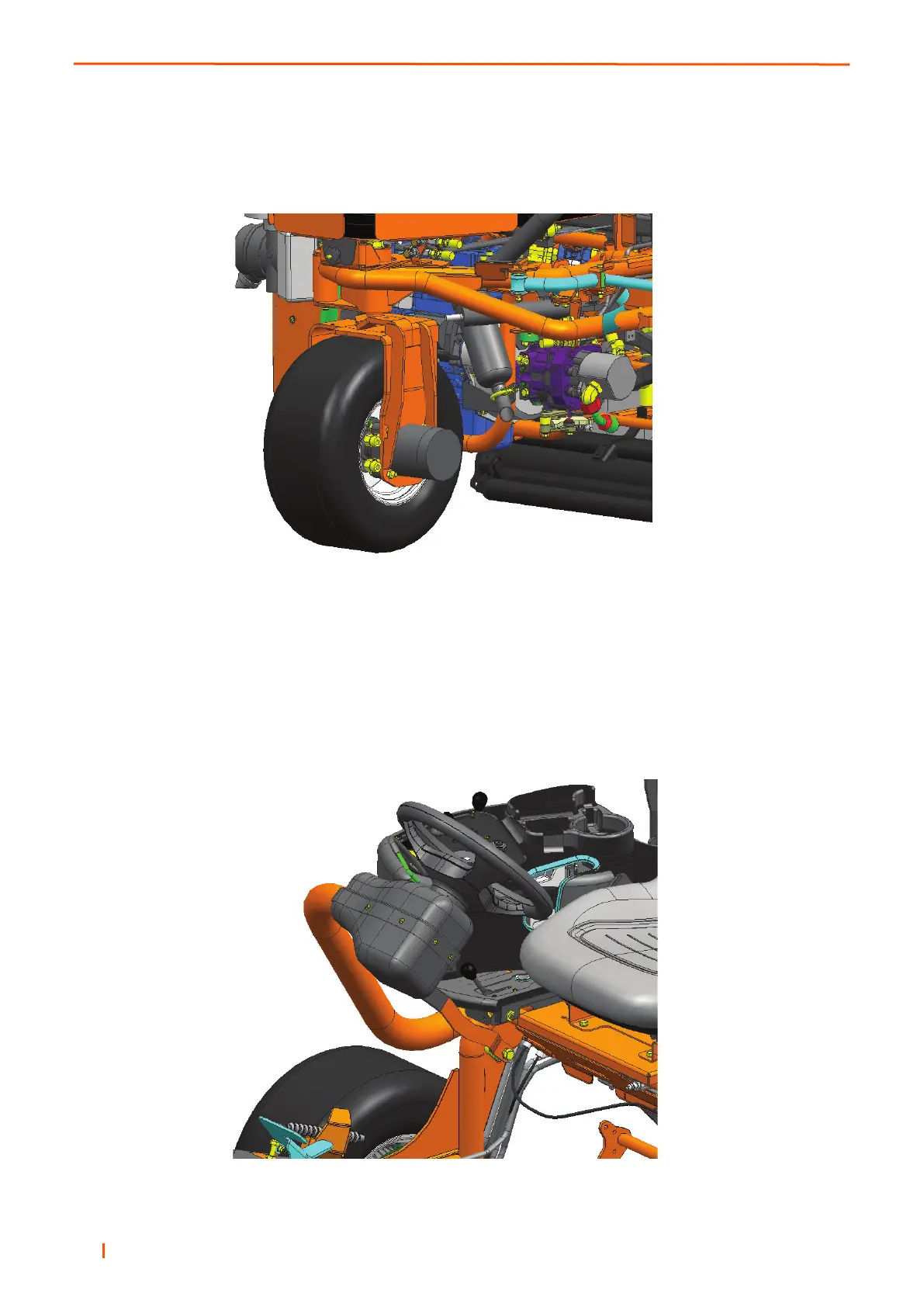

9.1 THREE WHEEL DRIVE KIT _____________________________________________

Kit number: LMAC418

9.2 PADDLE KIT _________________________________________________________

kit number: LMAC412
