8 ADJUSTMENTS
8.9 CUTTING HEIGHT TRUESET™ REEL_____________________________________

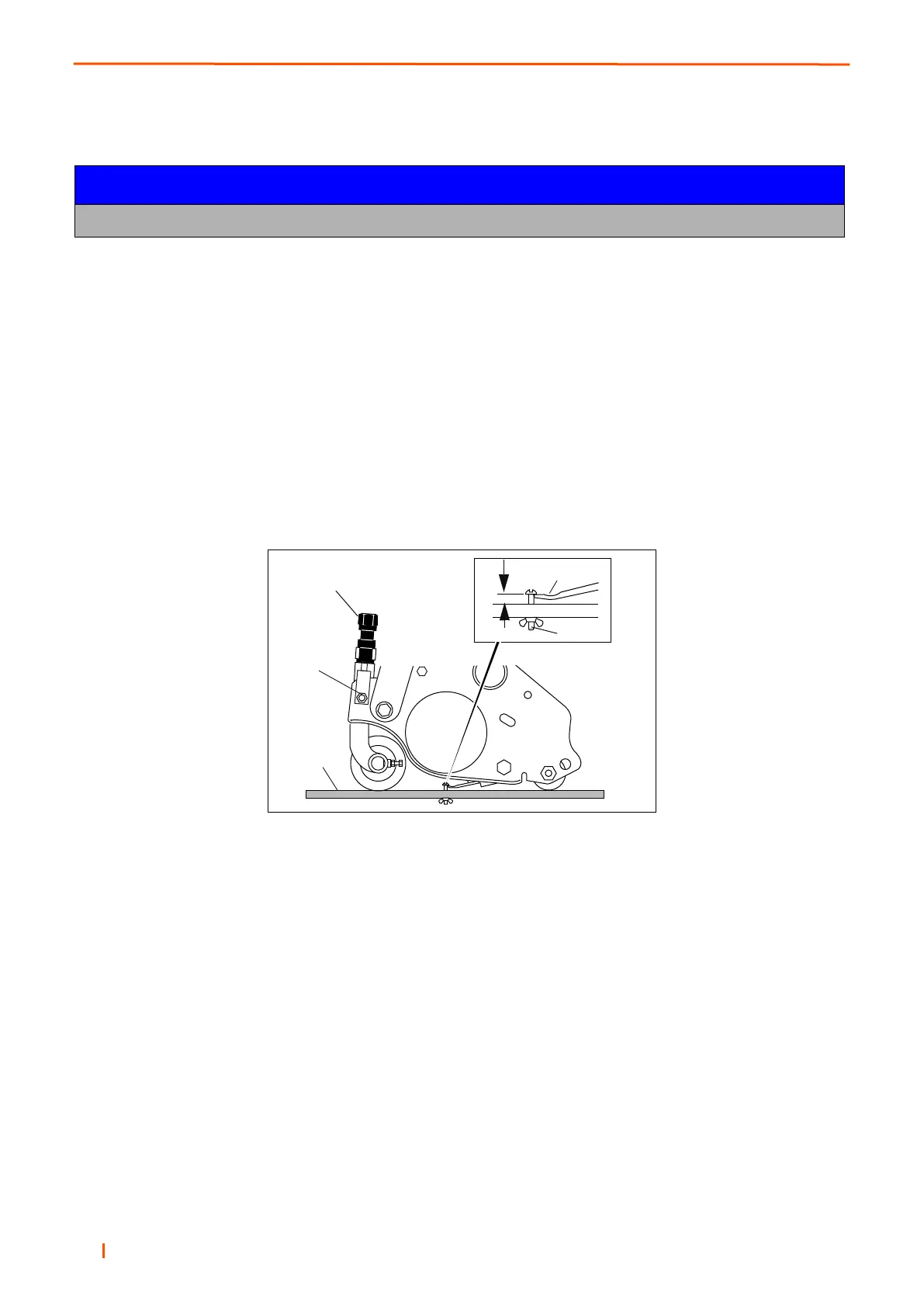

1. Set desired cutting height on the gauge (E).
a. Measure distance between the underside of screw head and gauge block surface (F).
b. Adjust screw (H) to obtain desired height then tighten the wing nut.
2. Loosen the nuts on the front roller brackets (G) just enough to allow the adjuster knob (K) to raise or lower the
front roller.
3. Place gauge (E) across bottom of front and rear rollers near one end of roller.
4. Slide the head of gauge screw (H) over the bedknife (L) and adjust the knob (K) to close the gap between the
screw head and bedknife. Then tighten locknut (G).
5. Repeat Steps 4 and 5 on opposite end. Complete adjustment to one end before adjusting opposite end.
6. Tighten nuts (G) and recheck each end.
NOTICE
Always make the reel to bedknife adjustment before adjusting height of cut. (Sections 8.7 and 8.8).
