Jacobsen R-311T Technical/Repair Manual

3-16 4234520 First Edition
ENGINE
3
10. Disconnect and remove fuel hose (2) from outlet of
fuel filter and from injection pump. Clean up any
spilled fuel.
11. Remove two nuts (7), two lock washers (6), four
washers (5), and two screws (4) to remove fuel filter
assembly.

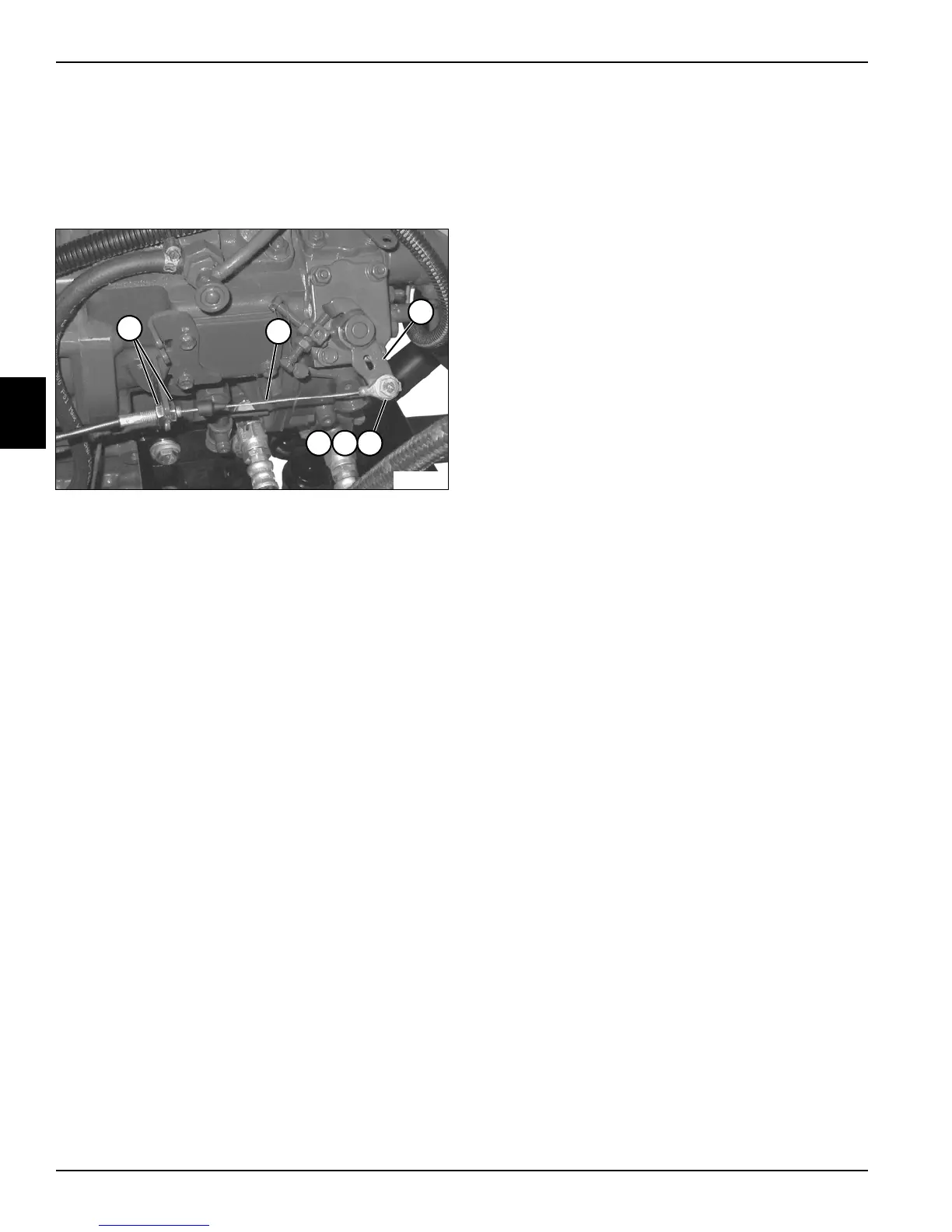

Figure 3-26
12. Remove nut (11), washer (12), and screw (13) to
disconnect the throttle cable (9) from the governor
throttle lever (10).
13. Loosen nuts (8) and remove throttle cable.
TN2172
13 11
9
12
10
8
