ENGINE
4234520 First Edition 3-17
3

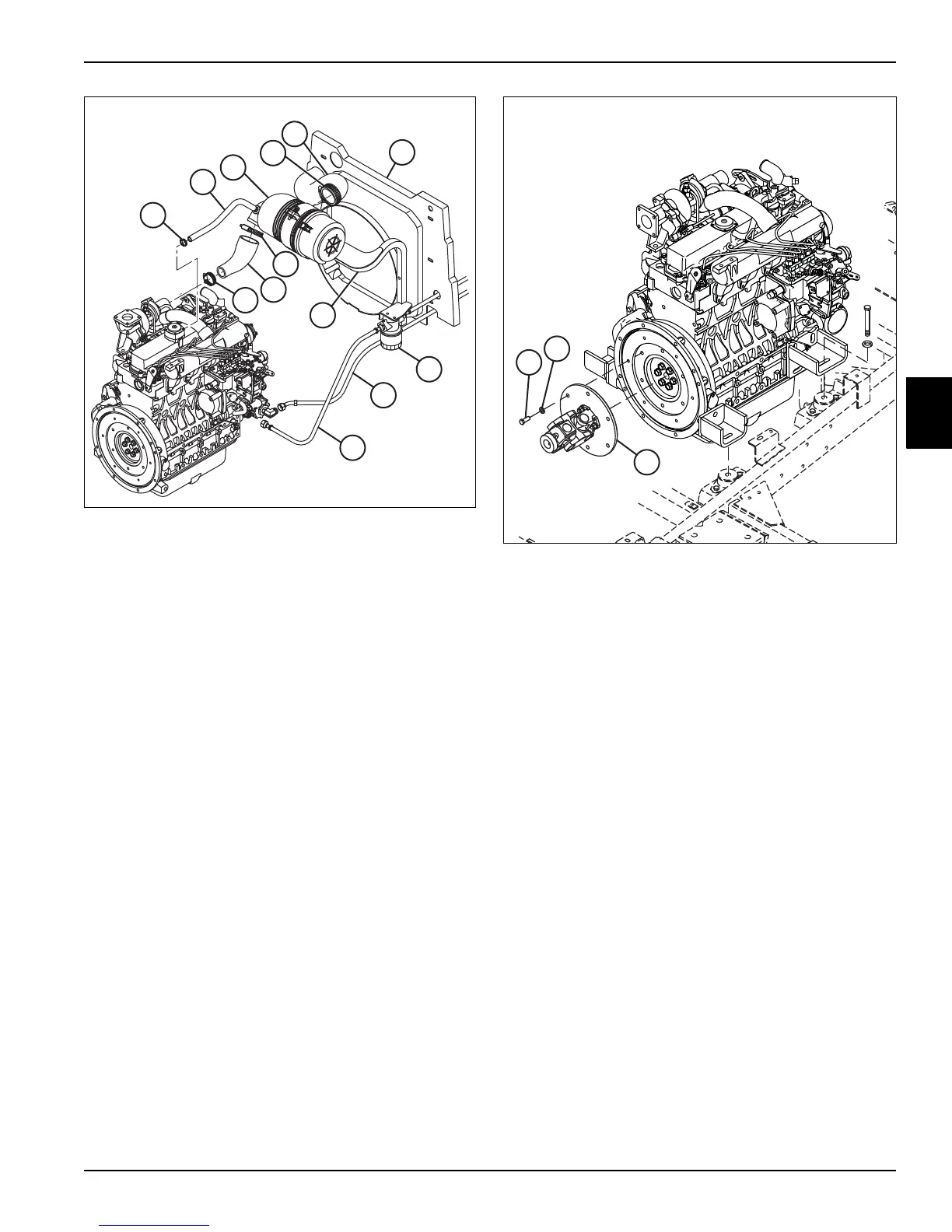

Figure 3-27
14. Loosen clamps (17) and remove air intake hose (19)
and turbo intake hose (18). Cover the turbo air intake
opening.
15. Loosen clamp (20) and disconnect breather hose
(21).
16. Disconnect engine to oil filter head hose (22), and
engine oil cooler to engine hose (23) at engine.
Assemble plugs to hoses and caps to fittings to
prevent contamination of engine oil. Clean up any
engine oil that leaked from hoses or fittings.
17. Remove air filter support (24), air filter (25), and
remote oil filter (26) as an assembly.
18. Remove fan shroud (27).
Figure 3-28
19. Remove six screws (28) and lock washers (29) to
disconnect the flywheel drive plate (30) from the
engine.
17
17
17
18
19
20
21
22
23
24
25
26
27
