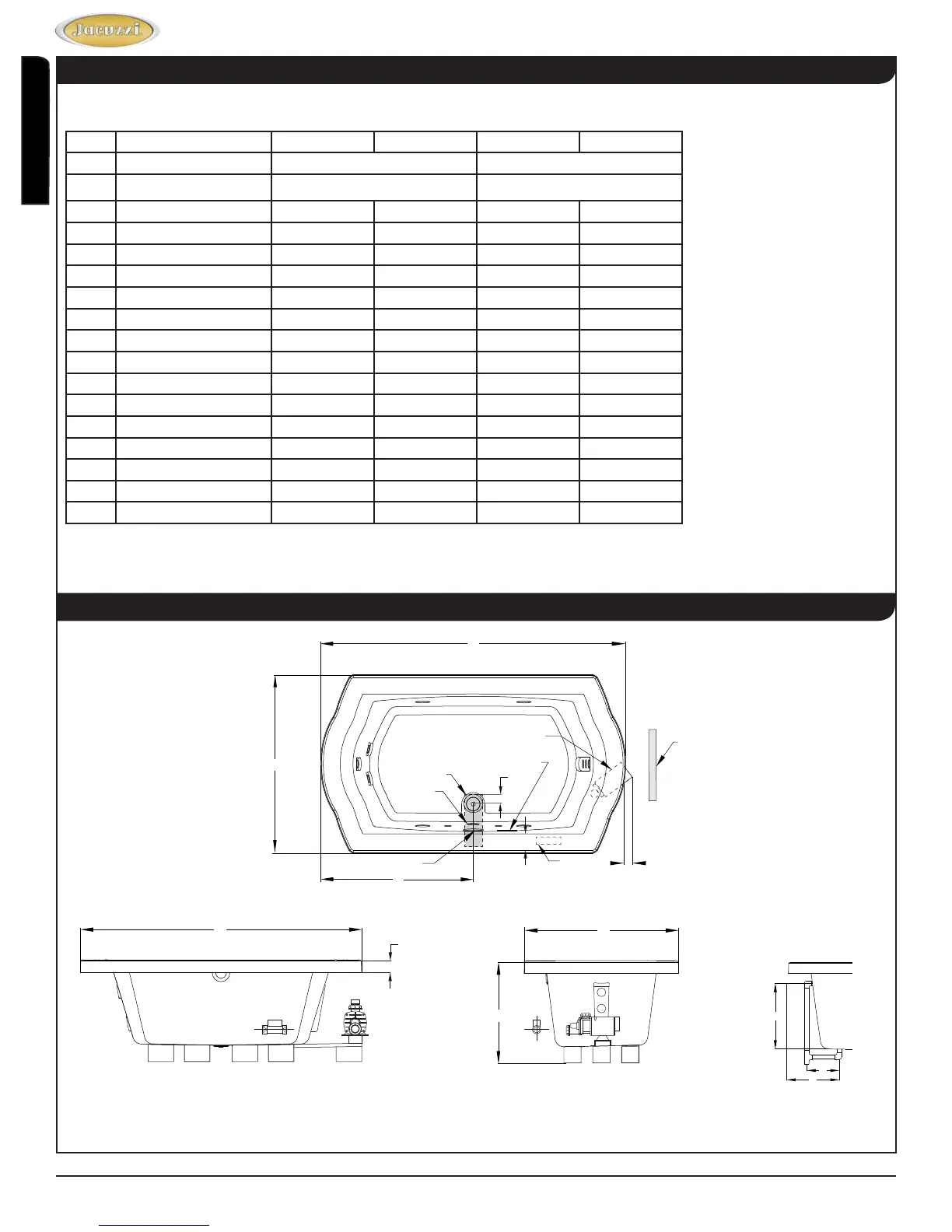

Technical Specifi cations Manual
Page 18
www.jacuzzi.com Technical Specifi cations
English
Salerno™ Whirlpool Bath
KEY DIMENSIONS
Specifi cations for 6636 and 7242
Letter Description English Metric English Metric
-
Drain/Motor Location Center drain/Right end motor Center drain/Right end motor
-
Cutout Template Template Provided P/N GX46000 Template Provided P/N HA76000
-
Total Weight 920 lbs 418 kg 1160 lbs 527 kg
-
Floor Loading 55.8 lb/ft
2
272 kg/m
2
55.3 lb/ft
2
270 kg/m
2
-
Operating Gallons (Min/Max) 59G / 62G 223.3L / 235L 84G / 89G 318L / 337L
-
Product Weight 154 lbs 70 kg 169 lbs 77 kg
L
Outer Length 66" 1676mm 72" 1829mm
W
Outer Width 36" 915mm 42" 1067mm
H
Overall Height 25" 635mm 25" 635mm
A
Overfl ow Height 17 " 443mm 17 " 443mm
B
Long Edge to Drain Center 11 " 294mm 11 " 294mm
C
Short Edge to Drain Center 33" 838mm 36" 915mm
D
Drain Shoe Length 6½" 165mm 6½" 165mm
E
Deck Height 3" 76mm 3" 76mm
F
Deck Width 5" 127mm 5" 127mm
G
Service Access Dimensions 12" x 18" 305mm x 457mm 12" x 18" 305mm x 457mm
I
Floor Cutout for Drain 12" x 4" 305mm x 102mm 12" x 4" 305mm x 102mm
7242
6636
Drain/Overfl owEnd View
Side View
/
16
7
/
16
7
/
16
9
/
16
9
(Heater)
(Motor)
(Heater)
(Motor)
Suction
Fitting
I
3"
Control
Panel
F
Overfl ow
(G) Service
Access
Motor
Heater
Electrical Specifi cations Each component requires a seperate, dedicated GFCI protected circuit
Motor/Pump 120V 20A 60HZ
Heater 120V 15A 60HZ
L
W
C
Motor Extends
3" Beyond Lip
E
L
W
H
A
D
B
Note: Drain installation
is non-standard. Vertical
overfl ow connection
requires offset.
