Technical Specifi cations Manual
Technical Specifi cations
www.jacuzzi.com Page 19
English
Sia™ Whirlpool Bath

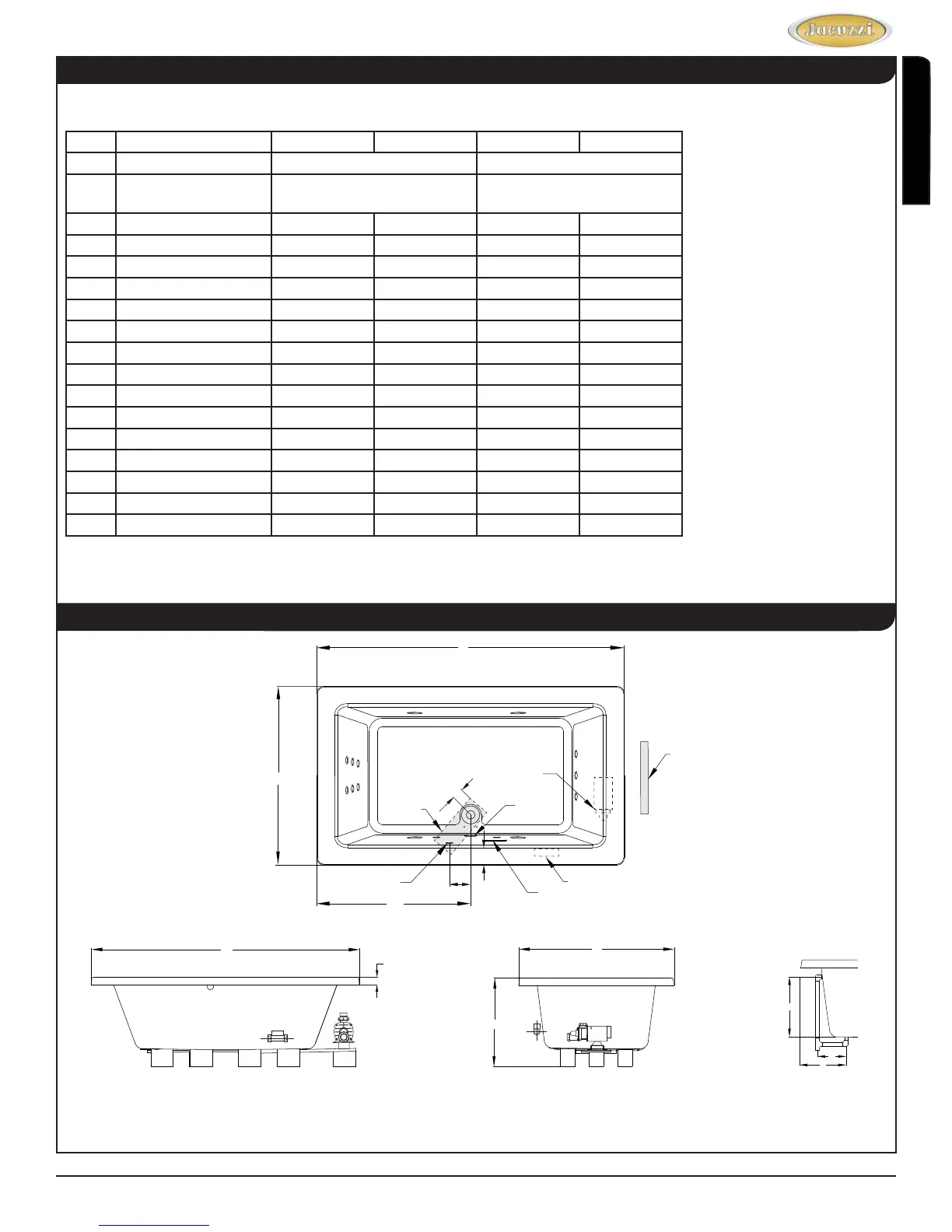

KEY DIMENSIONS
Specifi cations for 6636 and 7242
Letter Description English Metric English Metric
-
Drain/Motor Location Center drain/Right end motor Center drain/Right end motor
-
Cutout Template Provided P/N GU50000
64" x 34" Drop-In Cutout
Template Provided P/N GU50000
70" x 40" Drop-In Cutout
-
Total Weight 1033 lbs 470 kg 1312 lbs 596 kg
-
Floor Loading 62.6 lb/ft
2
305 kg/m
2
62.5 lb/ft
2
305 kg/m
2
-
Operating Gallons (Min/Max) 65G/ 76G 246.1L / 288L 89G/ 102G 337L / 386L
-
Product Weight 150 lbs 68 kg 162 lbs 74 kg
L
Outer Length 66" 1676mm 72" 1829mm
W
Outer Width 36" 915mm 42" 1067mm
H
Overall Height 24" 610mm 24" 610mm
A
Overfl ow Height 17¾" 451mm 17¾" 451mm
B
Long Edge to Drain Center 11½" 292mm 11½" 292mm
C
Short Edge to Drain Center 33" 838mm 36" 915mm
D
Drain Shoe Length 6½" 165mm 6½" 165mm
E
Deck Height 2" 51mm 2" 51mm
F
Deck Width 5" 127mm 5" 127mm
G
Service Access Dimensions 12" x 18" 305mm x 457mm 12" x 18" 305mm x 457mm
I
Floor Cutout for Drain 14" x 4" 356mm x 102mm 14" x 4" 356mm x 102mm
7242
6636
Side View End View Drain/Overfl ow
(G) Service
Access
Motor
Heater
Control
Panel
F
Suction
Fitting
3"
I
Overfl ow
6"
E
(Motor)
(Heater)
(Heater) (Motor)
Electrical Specifi cations Each component requires a seperate, dedicated GFCI protected circuit
Motor/Pump 120V 20A 60HZ
Heater 120V 15A 60HZ
L
W
C
L
W
H
A
D
B
