Jacuzzi HD85000 - Page 20

Technical Specifi cations Manual
Page 20
www.jacuzzi.com Technical Specifi cations
English
Venicia™ Whirlpool Bath

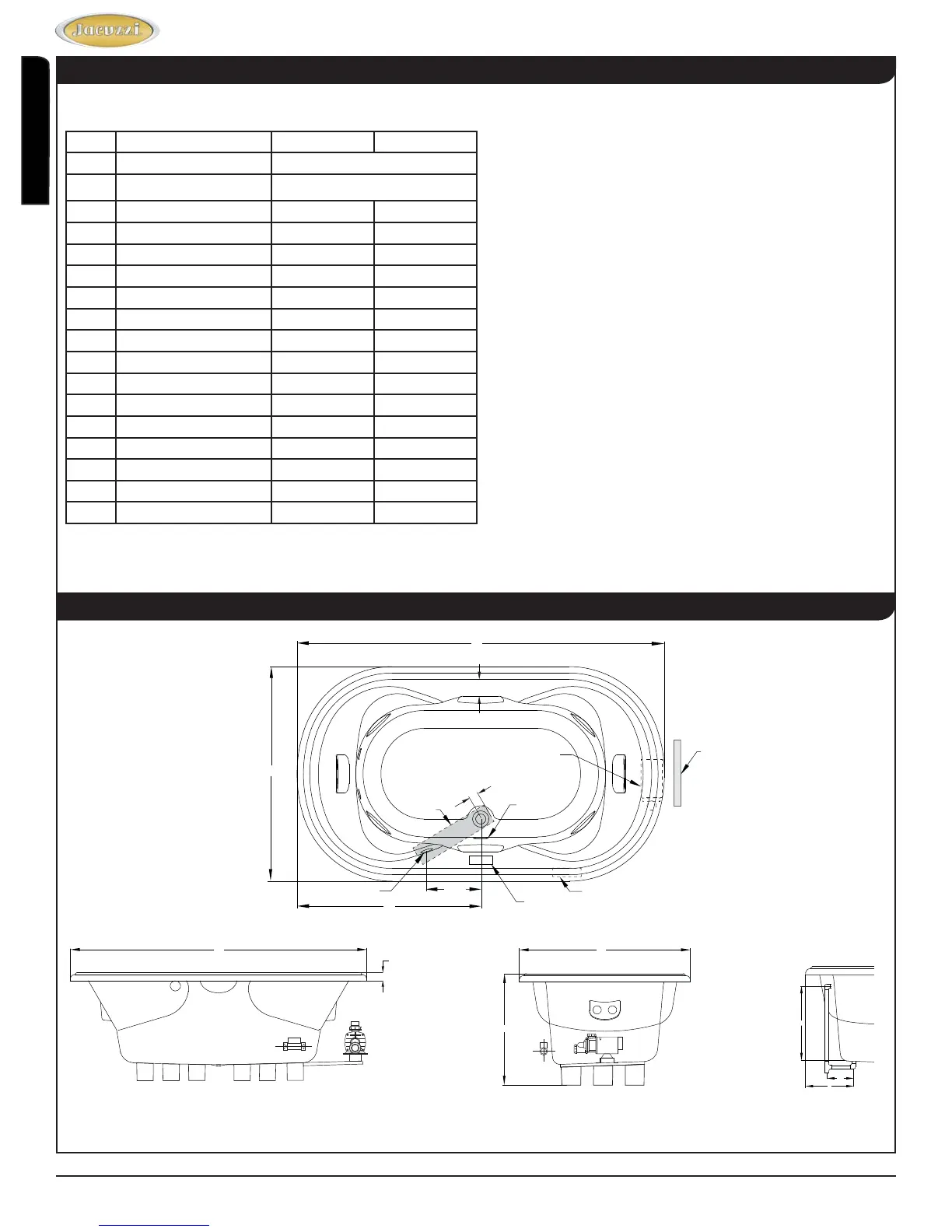

KEY DIMENSIONS
Specifi cations for 7242
Letter Description English Metric
-
Drain/Motor Location Center drain/Right end motor
-
Cutout Template Template Provided P/N P187000
-
Total Weight 1198 lbs 545 kg
-
Floor Loading 57 lb/ft
2
278 kg/m
2
-
Operating Gallons (Min/Max) 85G / 97G 322L / 368L
-
Product Weight 140 lbs 64 kg
L
Outer Length 72" 1829mm
W
Outer Width 42" 1067mm
H
Overall Height 26" 660mm
A
Overfl ow Height 20" 508mm
B
Long Edge to Drain Center 14" 356mm
C
Short Edge to Drain Center 36" 915mm
D
Drain Shoe Length 6⅞" 175mm
E
Deck Height 2" 51mm
F
Deck Width 5" 127mm
G
Service Access Dimensions 12" x 18" 305mm x 457mm
I
Floor Cutout for Drain 18" x 4" 457mm x 102mm
7242
Drain/Overfl owEnd View
Side view
10.5"
(G) Service
Access
F
3"
I
Motor
Suction
Fitting
Heater
Control
Panel
Overfl ow
(Motor)
(Heater)
(Heater)
(Motor)
E
Electrical Specifi cations Each component requires a seperate, dedicated GFCI protected circuit
Motor/Pump 120V 20A 60HZ
Heater 120V 15A 60HZ
L
W
L
W
H
A
D
B
