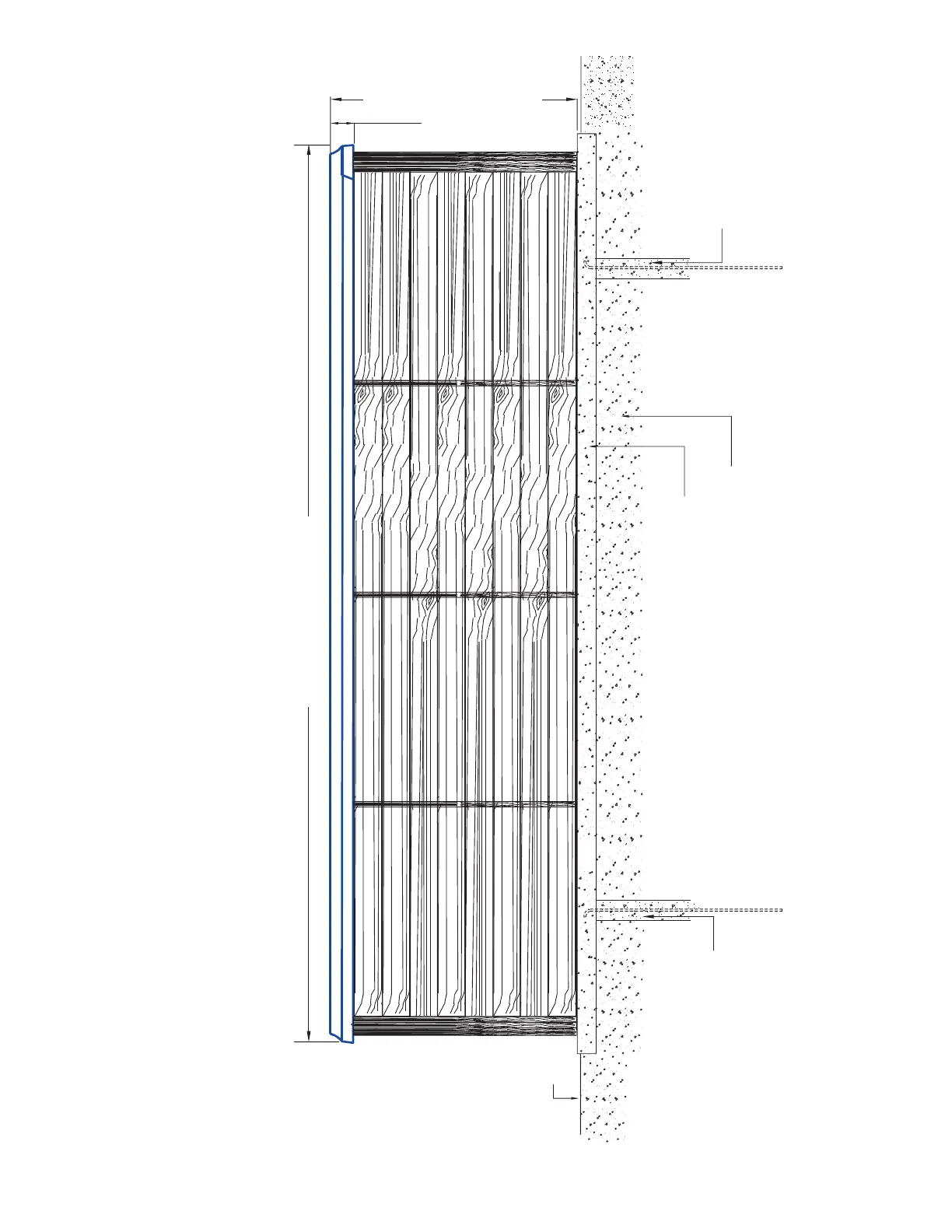

Type of installation: “free-standing” (mod. J-4000 5,64 m/19 ft.)
side view
13
* Jacuzzi can not be held liable for the accuracy of thi drawing; it is purely provided as a guide only. As each Swim Spa installation has its own set of challenges and variations due to materials used and location of the installation.
** Only required in installations that are in regions that experience freezing and thawing.
564 cm*
135 cm*
(height of the spa)
ground
level
** concrete casting
formwork
** concrete casting
formwork
Minimum 10 cm thick concrete slab
with reinforced wire mesh
Minimum 20-25 cm of crushed stone
(stone size: 2-2,5 cm)
11,5 cm*
