Jacuzzi SWIM SPA Series User Manual

9

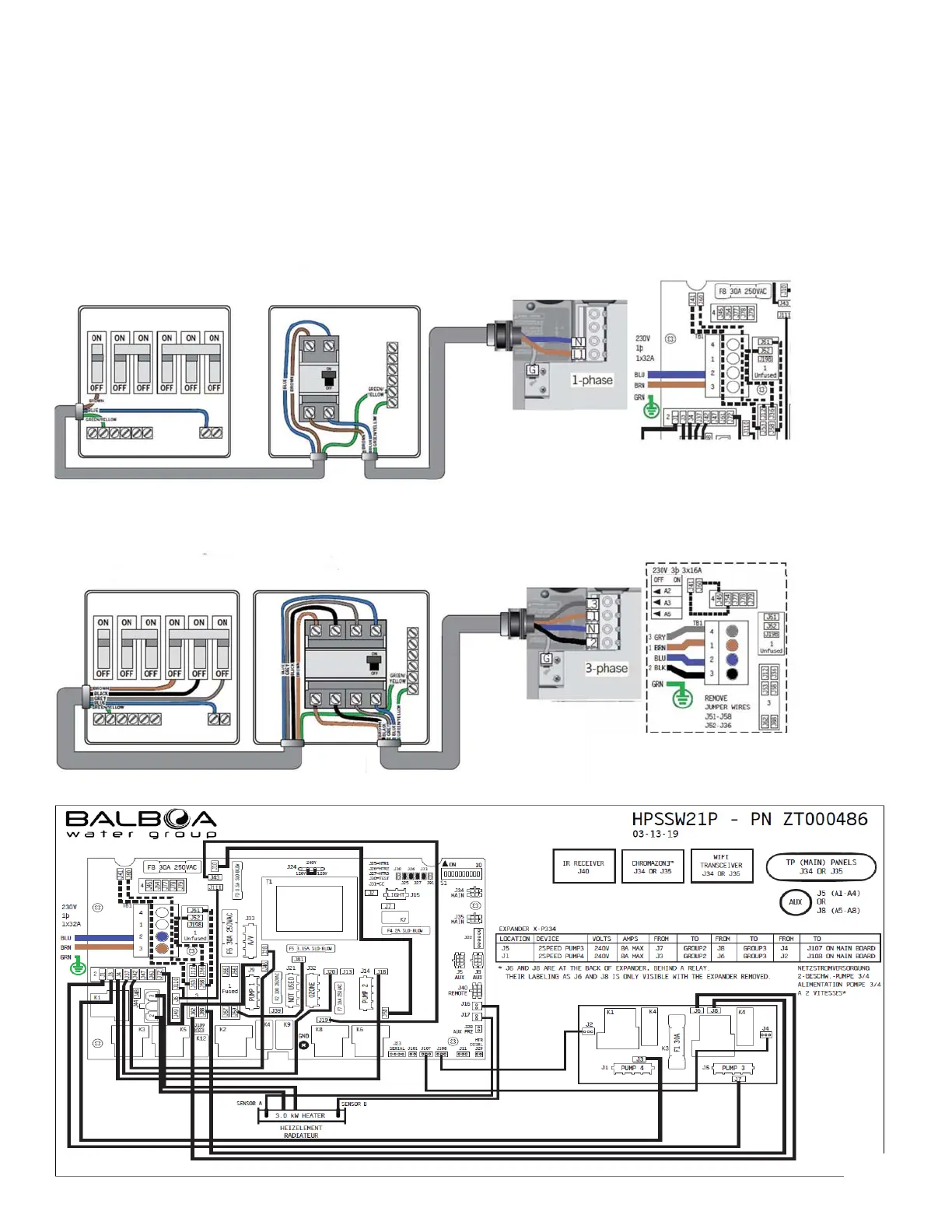

2.5 Typical Swim Spa Wiring Diagrams
-RWXEPPEXMSRQYWXFIGEVVMIHSYXF]UYEPM½IHTIVWSRRIP[LSEVIEYXLSVMWIHXSMRWXEPPXLITVSHYGXMRGSQTPMERGI[MXLXLI
national regulations in force. It is the installer’s responsibility to select the materials according to use, carry out the instal-
lation correctly, and verify the condition of the network to which the appliance will be connected, as well as its suitability
in ensuring usage safety during maintenance and inspection operations.
230 VOLT 50 HZ SINGLE PHASE WIRING
230 VOLT 50 HZ THREE PHASE WIRING
Main electrical box
Main electrical box
Residual Current Device
Residual Current Device
terminal board
terminal board
Please also refer to the diagrams
printed on the cover of the electrical cbox
Please also refer to the diagrams
printed on the cover of the electrical cbox
remove jumper wires: J51 - J58 and J52-J36;

Jacuzzi SWIM SPA Series Specifications

General

Shell Material	Acrylic
Seating Capacity	Varies by model
Dimensions	Varies by model
Water Capacity	Varies by model
Jets	Varies by model
Pumps	Varies by model
Lighting	LED lighting
Cabinet Material	Synthetic
Swim Current	Adjustable swim current
Warranty	Varies by model and region
