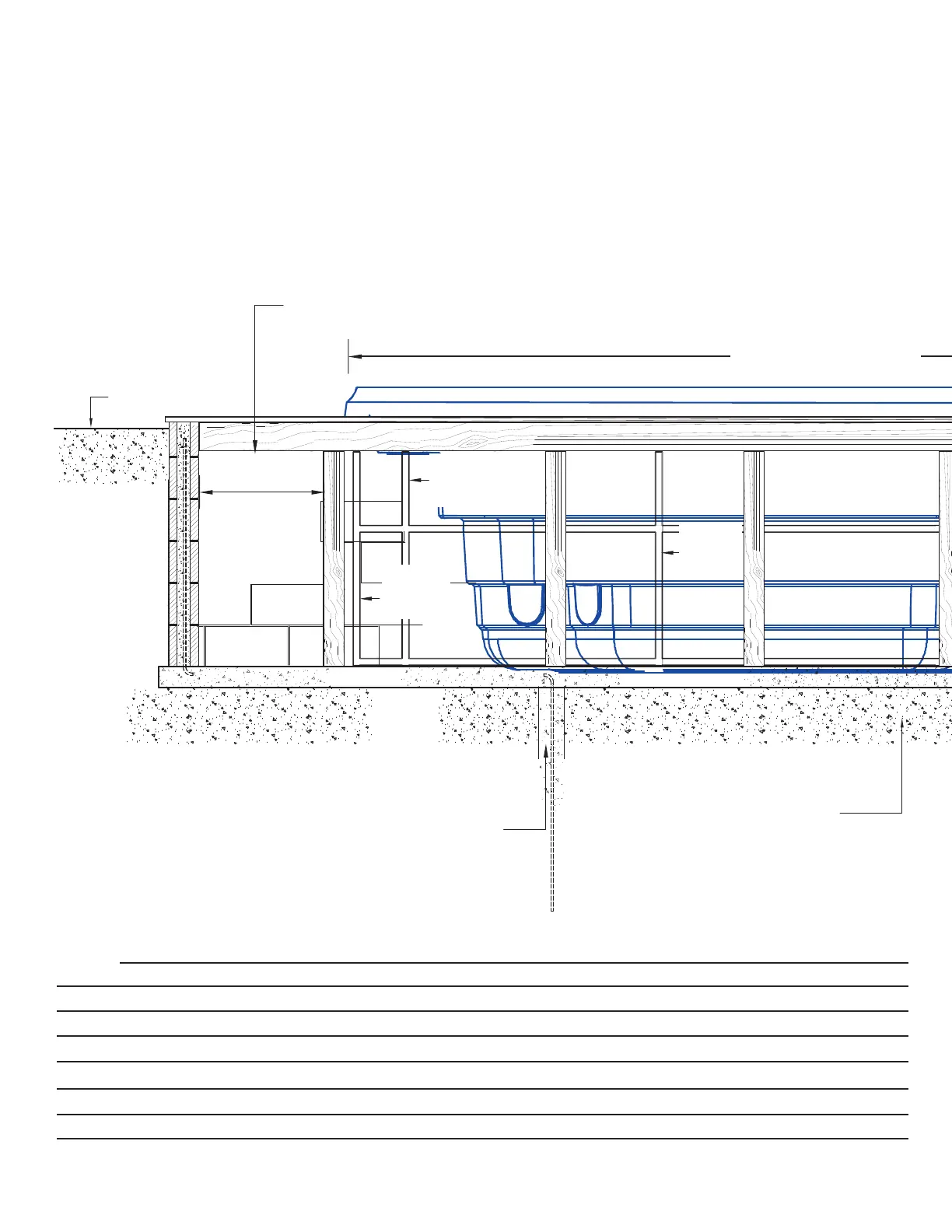

Jacuzzi SWIM SPA Series - Side View;Cross Section Pag

20
Type of installation: inground (mod. J-4000 4,72 m/16 ft.)
side view / cross section
Notes:
ground
level
hollow concrete block with steel re-bar
and poured concrete in cavity space
472 cm*
~ 60 cm*
(wide crawl
way)
steel
frame
support
steel
frame
support
steel
frame
support
** concrete
casting
formwork
Minimum 20-25 cm of crushed stone
(stone size: 2-2,5 cm)
