Jacuzzi SWIM SPA Series User Manual

~ 60 cm*
(wide crawl way)
~ 60 cm*
(wide crawl way)

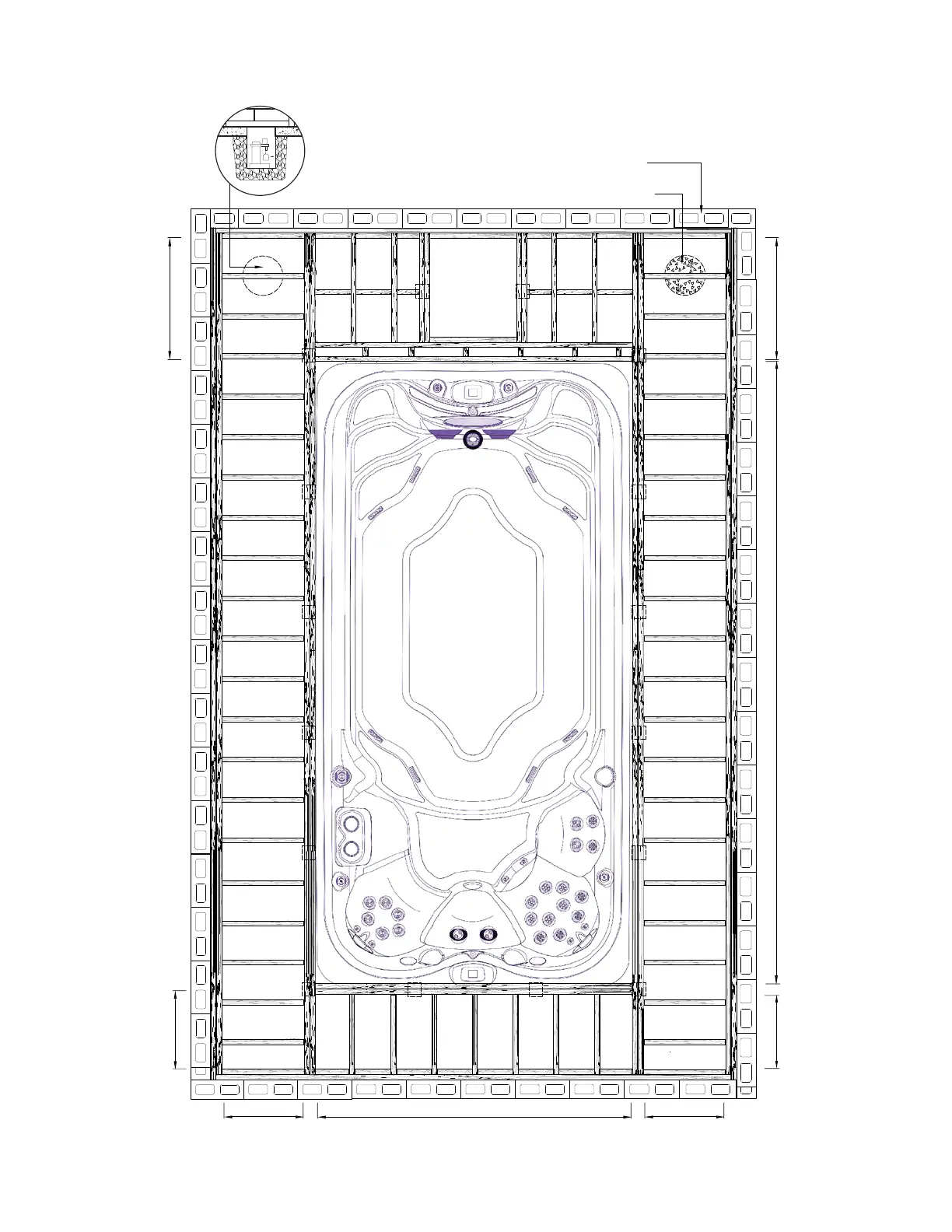

Type of installation: inground (mod. J-4000 4,72 m/16 ft.)
plain view / section
~ 90 cm*
service area
~ 90 cm*
service area
~ 60 cm*
(wide crawl way)
~ 60 cm*
(wide crawl way)
472 cm*
sump pump
[MXL¾SEX
switch
pit access
or
service
area
hollow concrete block with steel re-bar
and poured concrete in cavity space
gravel drain
18
* Jacuzzi can not be held liable for the accuracy of thi drawing; it is purely provided as a guide only. As each Swim Spa installation has its own set of challenges and variations due to materials used and location of the installation.
236 cm*

Jacuzzi SWIM SPA Series Specifications

General

Shell Material	Acrylic
Seating Capacity	Varies by model
Dimensions	Varies by model
Water Capacity	Varies by model
Jets	Varies by model
Pumps	Varies by model
Lighting	LED lighting
Cabinet Material	Synthetic
Swim Current	Adjustable swim current
Warranty	Varies by model and region
