Retrieve
2 Gas shocks
4 Gas shock pivots
4 security clips

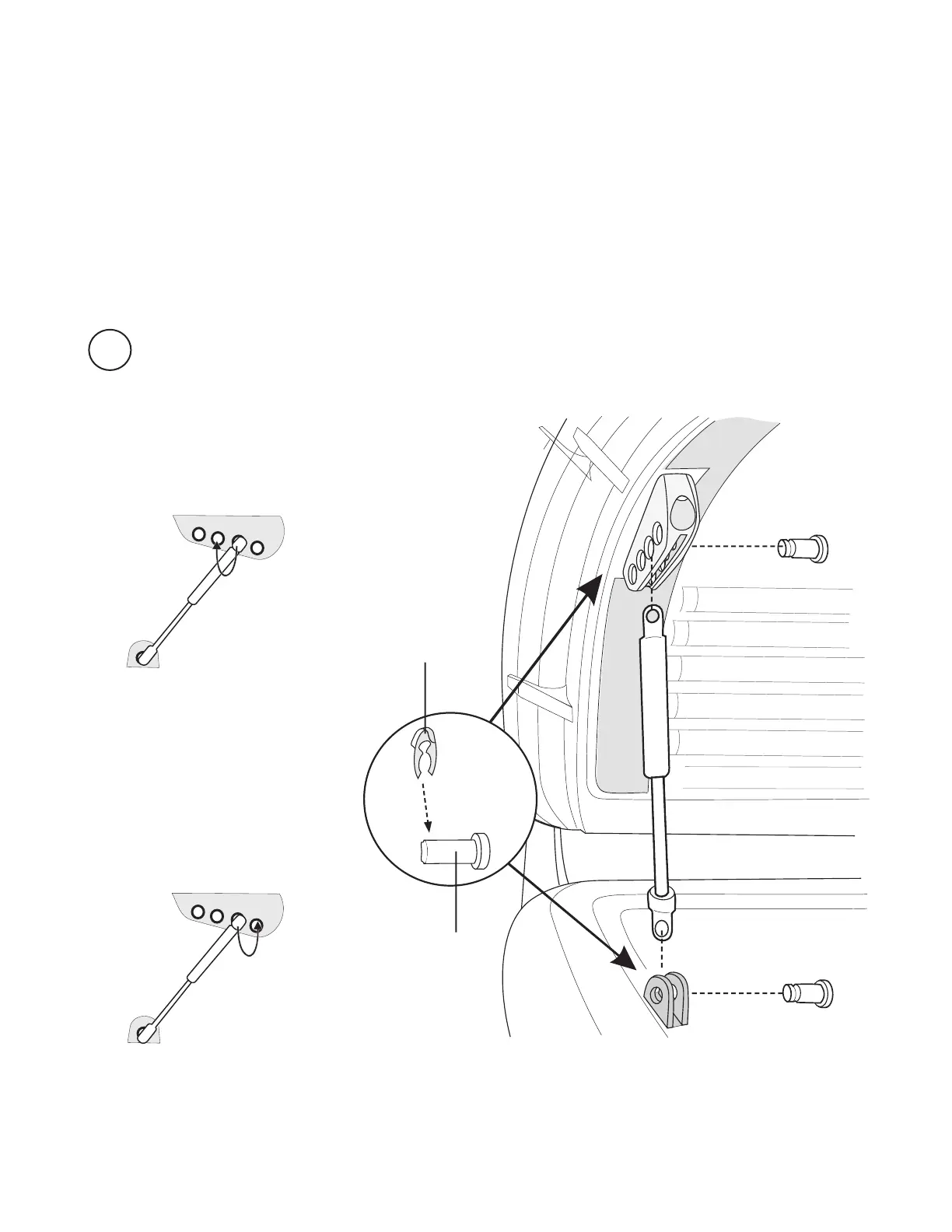

While the canopy is in an open position, insert gas shock into the bench and into third hole on
the canopy. Then insert gas shock pivots and secure with a security clip.
7
If the canopy rises
spontaneously move gas
shock to hole 2
If the canopy lowers
spontaneously move gas
shock to hole 4
1
2
Gas shock pivot
Security clip
