31
Description Part No.
1 20” Upper Flighting (All 20” 12-Series) (154-3/4”) JM0035058
2 1/2”-13 x 5-1/2” Gr5 Z Hex Bolt JM0001498
3 1-1/4”-12 PN Gr5 Hex Jam Nut JM0001606
4 1-3/8”, ID 3” OD Flat Washer JM0015731
5 Top Auger Collar (1-3/4” OD x 1-1/2” Lg) JM0021646
6 1-1/4” Flange Bearing, 4 hole (GRAF-206) JM0018560
7 4-1/2” Compression Spring (CMSUAA-4) JM0018559
8 1/2”-13 Gr5 Z Centerlock Hex Nut JM0001511
9 1” OD 33/64” ID x 3/4” L Black UV Nylon Spacer JM0001962
10 M4-0.7 x 20 Gr8.8 Z Hex Bolt JM0049074
11 M4-0.7 Gr8.8 YZ Nylon Locking Hex Nut JM0049075
12 Telescoping Spout Main Linkage Rod JM0034363
13 1/2”-13 x 1-1/2” Gr5 Z Hex Bolt JM0002100
14 5/16” - 18 Gr5 Z Nylon Locking Hex Nut JM0049059
15 Spout Guide (Nylon) JM0035132
16 5/16”-18 x 5/8” Flat Head Bolt Z JM0024963
17 1/2”-13 x 2” Gr5 Z Hex Bolt JM0001593
18 1-3/4” x 4” Hydraulic Cylinder (1/2” Clevis and Tab ends) (HC-FCS) JM0018564
19 1/2” x 1-3/4” Clevis Pin, Usable Length 1-1/2” JM0018264
20 5/32” x 1-1/2” Cotter Pin JM0014348
21 LED Field Light JM0001881
22 Outer Tip Spout (12 & 22-Series) JM0034365
23 Inner Tip Spout (12 & 22-Series) JM0034291
24 1/4”-20 x 3/4” Gr5 Z Hex Bolt JM0001507
25 1/4” ID, 3/4” OD Z Flat Washer JM0003090
26 4-Sided Telescoping Spout Rubber Extension (20”)(12 & 22-Series) JM0034417
27 1/4”-20 Gr5 Z Centerlock Hex Nut JM0001505
28 3/8”-16 x 1” Gr5 Z Carriage Bolt JM0001632
29 1/2” ID x 2-1/8” OD Flat Washer - 1/8” Thick JM0019081
30 3/8”-16 Gr5 Z Centerlock Hex Nut JM0001512
31 UHMW - 0.25 Angle Iron - Spout Guide JM0034308
32 20” Upper Auger Tube Weldment (12 Series) JM0035994*
33 3/8”-16 Gr5 Z SF Hex Nut JM0002152
34 Upper Auger Rest Plate JM0034981
35 3/8”-16 x 1” Gr5 Z SF Hex Bolt JM0002092
36 12 Series Tip Spout Assembly JM0048158

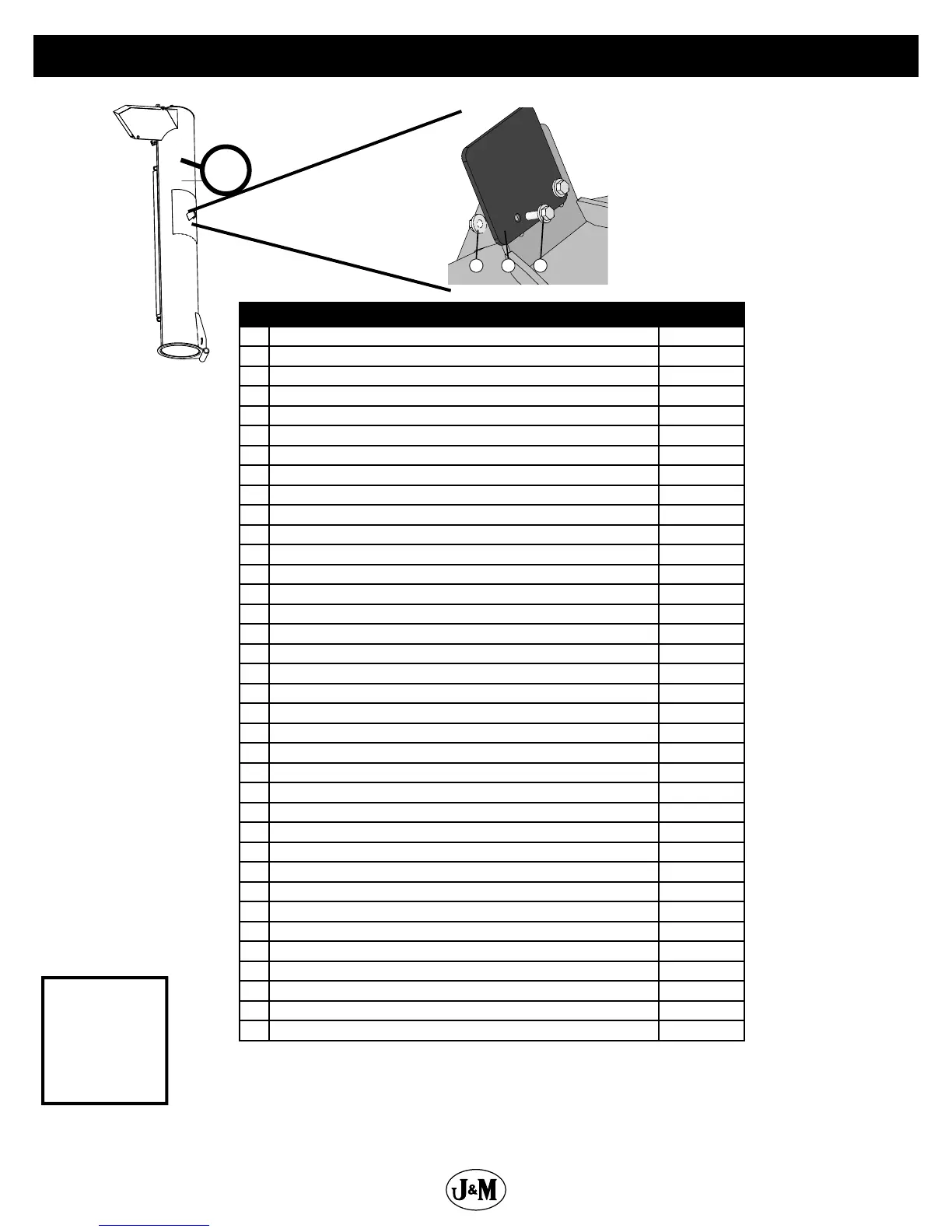

Upper Auger Assembly
*-R = Red
*-B = Blue
*-G = Green
*-Y = Yellow
*-BLK = Black
When requesting an item with color, end the part
number with -R, -B, -G, -Y, or -BLK. (e.g. JM0000000-R)
32
33 34 35
12 Series Tip Spout Assembly includes: 10-12, 14-16, 22-31.
