Jandy CJ200 - Section 9. Parts List and Exploded View; View

Page 13Cartridge Filters - CJ Series Filter
Key
No. Description
Part
No.
1 Locking Ring R0557500
2 Locking Ring Safety Latch R0557400
3 Pressure Gauge R0556900
4 Pressure Gauge/Air Release Adapter
(set of 2)
R0557100
5 Air Release Valve R0557200
6 Handle w/Screws (set of 2) R0557300
7 TankBody Assembly, Upper, CJ200 R0559701
TankBody Assembly, Upper, CJ250 R0559702
8 Upper Bearing Assembly R0557600
9 Filter Cartridge, CJ250 R0556700
Filter Cartridge, CJ200 R0556800
10 Breather Tube R0557700
11 Breather Tube Support w/Screws, CJ250
(set of 3 screws)
R0557801
Breather Tube Support w/Screws, CJ200
(set of 3 screws)
R0557802
12 Tank O-ring R0557900
13 Cartridge to Plenum Adapter, w/Screws R0558000
14 Plenum w/Gasket R0558100
15 Half Unions w/O-rings (set of 3) and Drain
Plug Cap
R0558200
16 Retaining Ring, CJ Series R0409900
17 Tank Bottom w/Retaining Ring R0410000
18 Anchor Brackets (set of 4) R0395100
Not Shown:
O-ring Replacement Kit R0558300
Hardware Kit R0558500
Accessory Bag, w/Half Unions (set of 2),
Pressure Gauge, Pressure Relief Valve,
Instructions
R0558400
Safety Label Kit (Inlet, Outlet, Drain) R0560600
Installation/Instruction Manual H0556400
Section 9. Parts List and Exploded
View
9.1 Jandy
®
Cartridge Filter, CJ Series

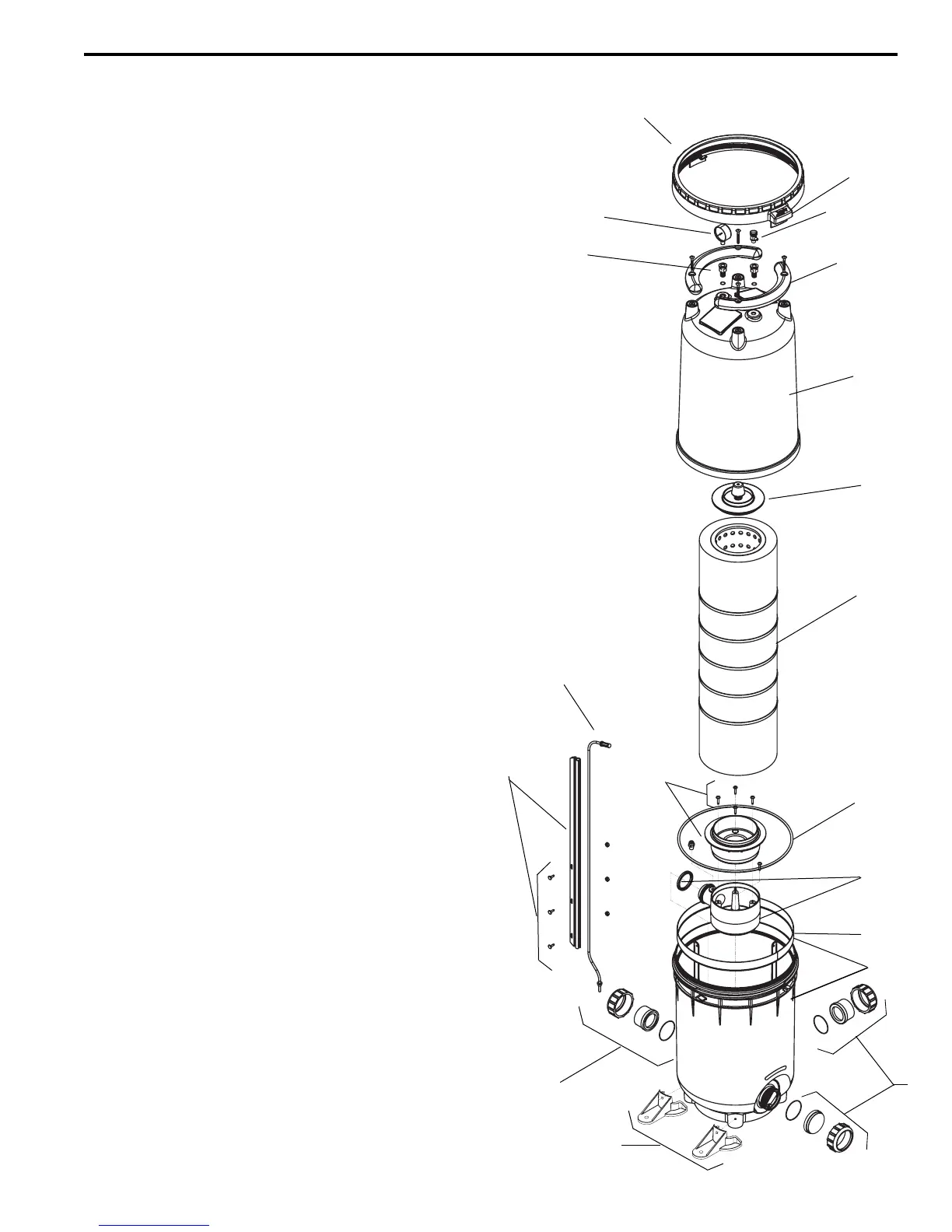

9.2 Jandy
®
CJ Cartridge Filter Exploded View
2
6
5
7
8
10
17
3
12
9
1
4
11
14
18
13
15
15
16
