Cartridge Pool Filters - CL and CV Series Filters

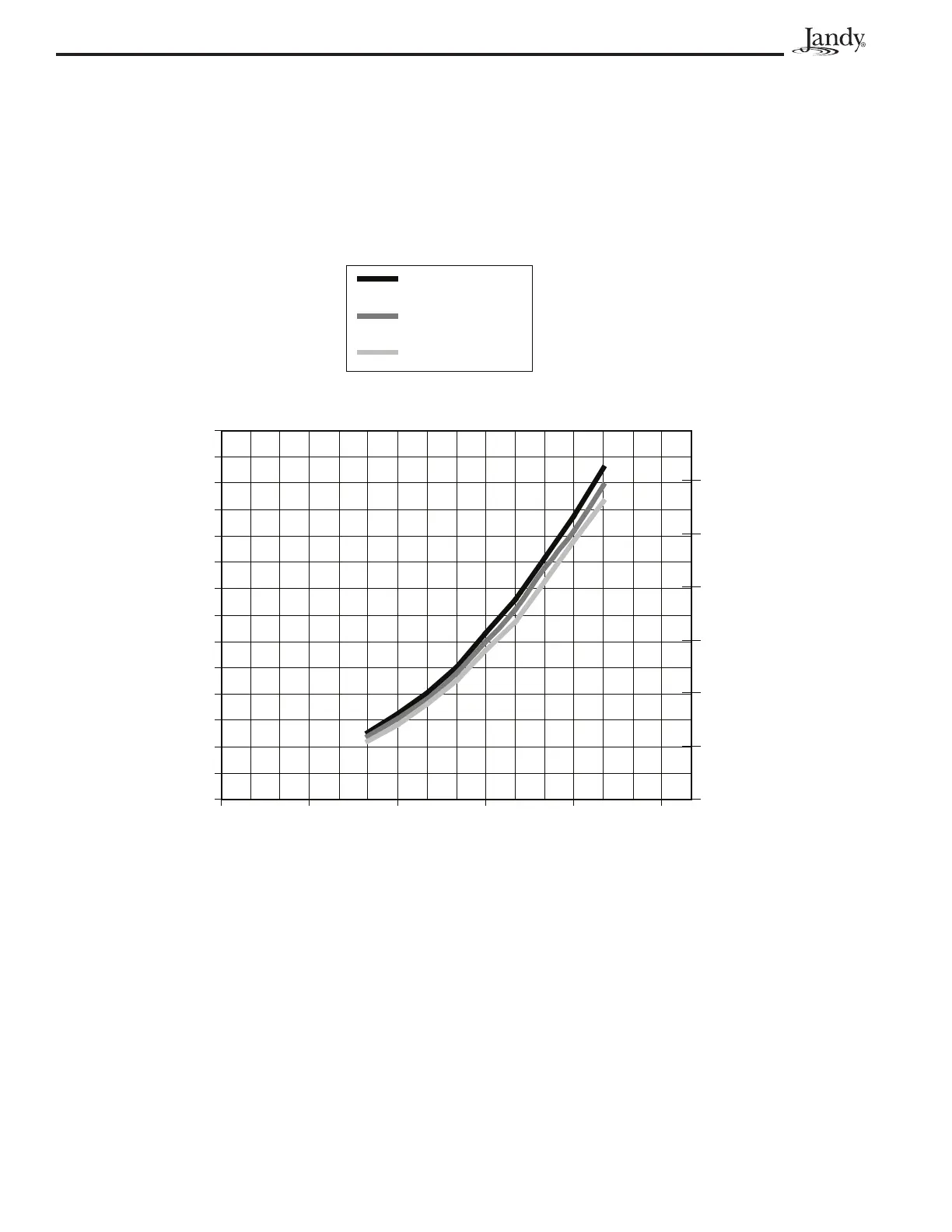

Section 10. Head Loss Curves
10.1 Jandy
®
CL and CV Cartridge Filter Design
Head Loss Curves
0
2
4
6
8
10
12
14
16
18
20
22
24
26
28
0 30 60 90 120 150
Flow Rate (gpm)
Design
Head
Loss
(ft head)
0
2
4
6
8
10
12
CL340 CV340
CL460 CV460
CL580 CV580
Design
Pressure
Drop
(psi)
