Page 13Cartridge Filters - CS Series Filter
Key
No. Description
Part
No.
1 Top Housing Assembly CS100, CS150 R0461900
2 O-Ring, Tank Top R0462700
3 Inlet Diffuser with Locking Tab R0462100
4 Cartridge Element, 100 Sq. Ft., CS100 R0462200
4 Cartridge Element, 150 Sq. Ft., CS150 R0462300
5 Tailpiece, Cap and Union Nut Set
(Set of 3), 2" x 2½"
R0461800
5 Tailpiece, Cap and Union Nut Set
(Set of 3), 50mm
R0462600
6 Breather Tube, CS100, CS150 R0462801
7 Bottom Housing Assembly R0462900
8 Pressure Gauge, 0-60 psi R0556900
9 Pressure Gauge Adapter R0557100
10 Air Release Valve R0557200
11 O-Ring Set R0466300
Section 9. Parts List and Exploded
View
9.1 Jandy
®
Cartridge Filter, CS Series
9.2 Jandy
®

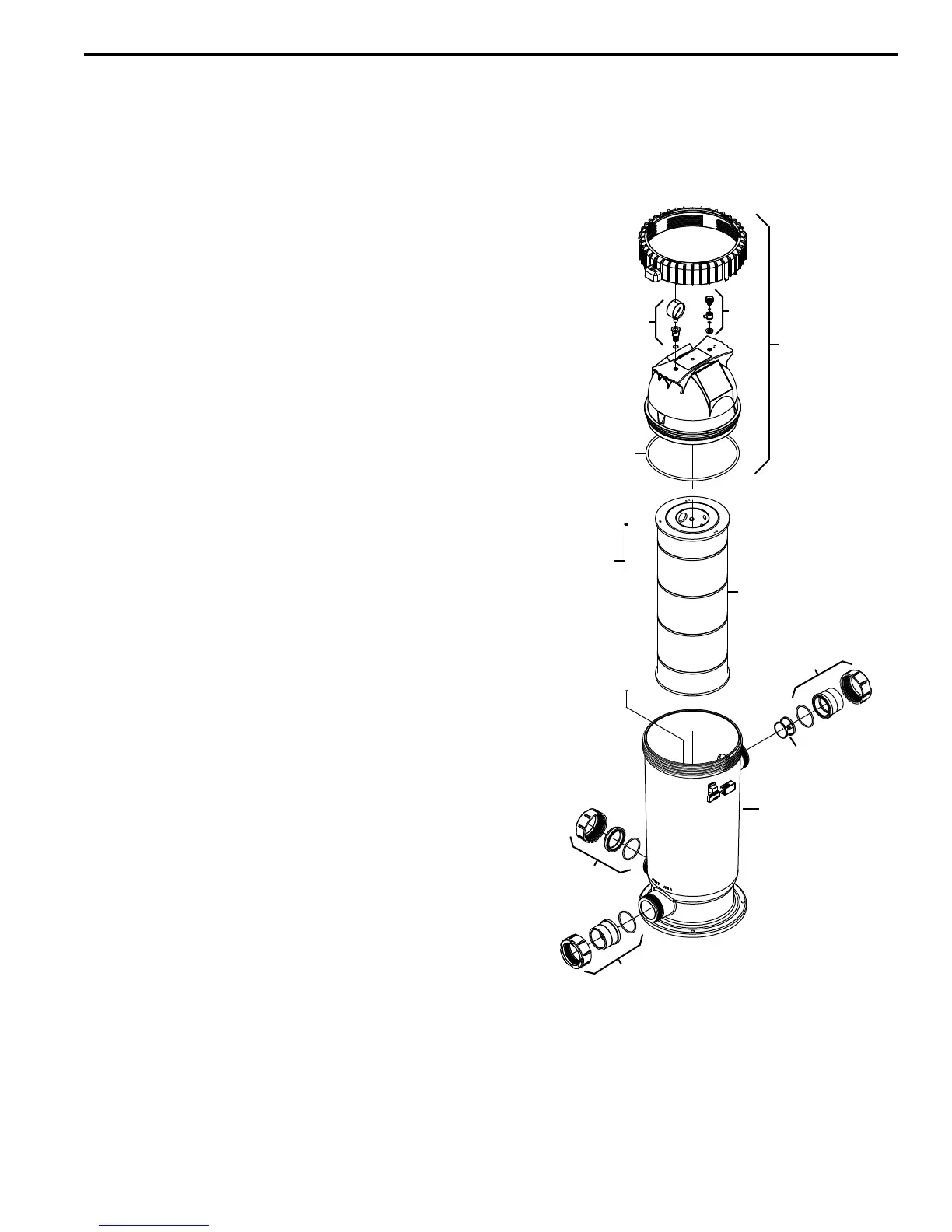

CS Cartridge Filter Exploded View
1
4
7
3,7
9
5
5
5
8
2
6
