Page 5Cartridge Filters - CS Series Filter
3 1/4”
14 3/4”
32 3/8”
18 1/2”
Section 2. General Information
2.1 Introduction
This manual contains information for the proper instal-
lation and operation of the Jandy
®
CS Cartridge Filters.
Procedures in this manual must be followed exactly.
To obtain additional copies of this manual contact us
at 707.776.8200 ext. 237. For address information see
back cover.
2.2 Description
Cartridge filters do not require sand or diatomaceous
earth as the filter medium. Instead they contain a filter
cartridge element which is easily removed for cleaning
or replacement.
Dirty water flows into the filter tank and is directed
through the filter cartridge. The debris is collected on
the surface of the cartridge as the water flows through
it. The water will travel through the central filter core
towards the bottom of the filter into the lower manifold.
Clean water is returned to the swimming pool through
the filter outlet port at the tank's bottom.
As debris collects in the filter, the pressure will rise and
water flow to the pool will diminish. The filter cartridge
must be cleaned when the operating pressure of the
filter rises 10 psi from the operating pressure of a clean
cartridge (see Section 6 "Cleaning the Filter").
NOTE A filter removes dirt and other suspended particles
but does not sanitize the pool. Pool water must be
sanitized and chemically balanced for clear water.
The filtration system should be designed to meet
local health codes. At a minimum, the system should
turnover the total volume of water in your pool two to
four times in a 24 hour period.
2.3 General Requirements
1. For best overall performance place the system as
close to the pool as possible.
2. The filter should be located on a level concrete
slab so that the orientation of the valve outlets and
the pressure gauge are convenient and accessible
for the installation and operation of the unit.
3. Protect the filter from the weather.
4. If fitting a chlorinator and/or any other device into
the filtration plumbing circuit, great care must be
exercised to ensure that the appliance is installed
in accordance with the Manufacturer’s Instructions
and any applicable standards that may exist.
CS100 CS150
Filter Area (ft
2
) 100 150
Max. Flow (gpm) 100 125
Six Hour Capacity (gal.) 36,000 45,000
Eight Hour Capacity (gal.) 48,000 60,000
Normal Start Up Pressure (psi) 6-15 6-15
Max. Working Pressure (psi) 50 50
Table 1. Cartridge Filter Specications
WARNING
The maximum operating pressure for this filter is 50
psi. Never subject the filter to operating pressure
exceeding 50 psi. Operating pressures above 50 psi
can cause the lid to be blown off, which can result in
death, serious personal injury, or property damage.
5. Use Jandy universal unions to connect each
component of the water conditioning system for
future servicing. All Jandy filters come with these
type of fittings.
6. When performing hydrostatic pressure tests or
when testing for external leaks of the completed
filtration and plumbing system, ensure that
the maximum pressure the filtration system is
subjected to does not exceed the maximum
working pressure of any of the components
within the system.
2.4 Specifications and Dimensions
See Table 1 and Figures 1 and 2.

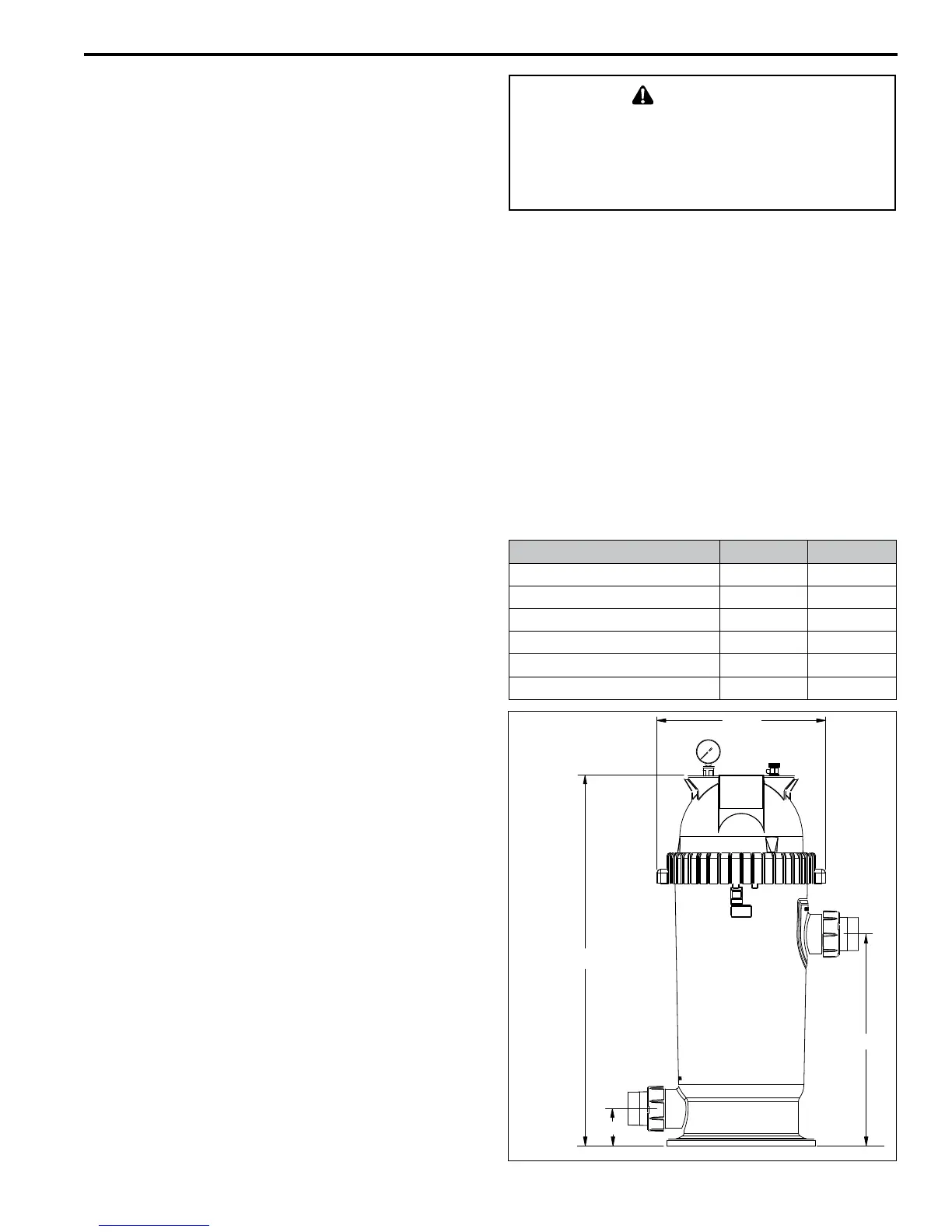

Figure 1. Dimensions, CS Cartridge Series Filter
