ENGLISH
Jandy
®
Pro Series VS PlusHP Pumps
|
Installation & Operation Manual
Section 7. Product Speci cations and Technical Data
7.1 Replacement Parts List
To order or purchase parts for Zodiac
®
pumps, contact your nearest Zodiac dealer. If the Zodiac dealer cannot
supply you with what you need, contact Zodiac technical support at 1.800.822.7933, or send an e-mail message to
productsupport@zodiac.com.
Key
No. Description
Order
Part No.
1 Motor, Drive R0562201
2 MotorHardwareKit R0446700
3
CoverFan,GENIIReplacementKit(Hardware,
Cover)
R0562400
4 Hardware Speed Drive, GEN II R0562500
5 Connector,SpeedDrive,(4-PinConnector) R0660900
6 Cable,RS-485,ReplacementKit* R0535100
7 Cover, Large, Speed Drive w/Gasket, GEN II R0562300
8 Data Cable, Feed Thru R0501100
9 ImpellerReplacementKit R0807200
10 Diffuser w/O-ring & Hardware R0445400
11 MechanicalSeal(CarbonandCeramic) R0479400
12 Pump Body R0448700
Key
No. Description
Order
Part No.
13 Motor Mounting Foot Assembly w/Screws R0445700
14 Locking Ring w/Lid & Seal R0448800
15 Pump Debris Filter Basket R0448900
16 Drain Plug w/O-ring R0446000
17 Tail Piece (2” x 2½”)w/O-ring&CouplingNut(Set
of2)
R0449000
18 LidSealandLidO-ring(LidO-ringNotShown) R0449100
19 BackplateKitw/HardwareandMechanicalseal R0445200
20 O-ring, Backplate R0446300
21 O-ring, Tail Piece R0449200
22 Diffuser/Impeller w/O-rings & Mounting Hardware R0446500
23 Backplate Bolts & Washers R0446600
24 Screws, Motor Mounting Foot R0446800

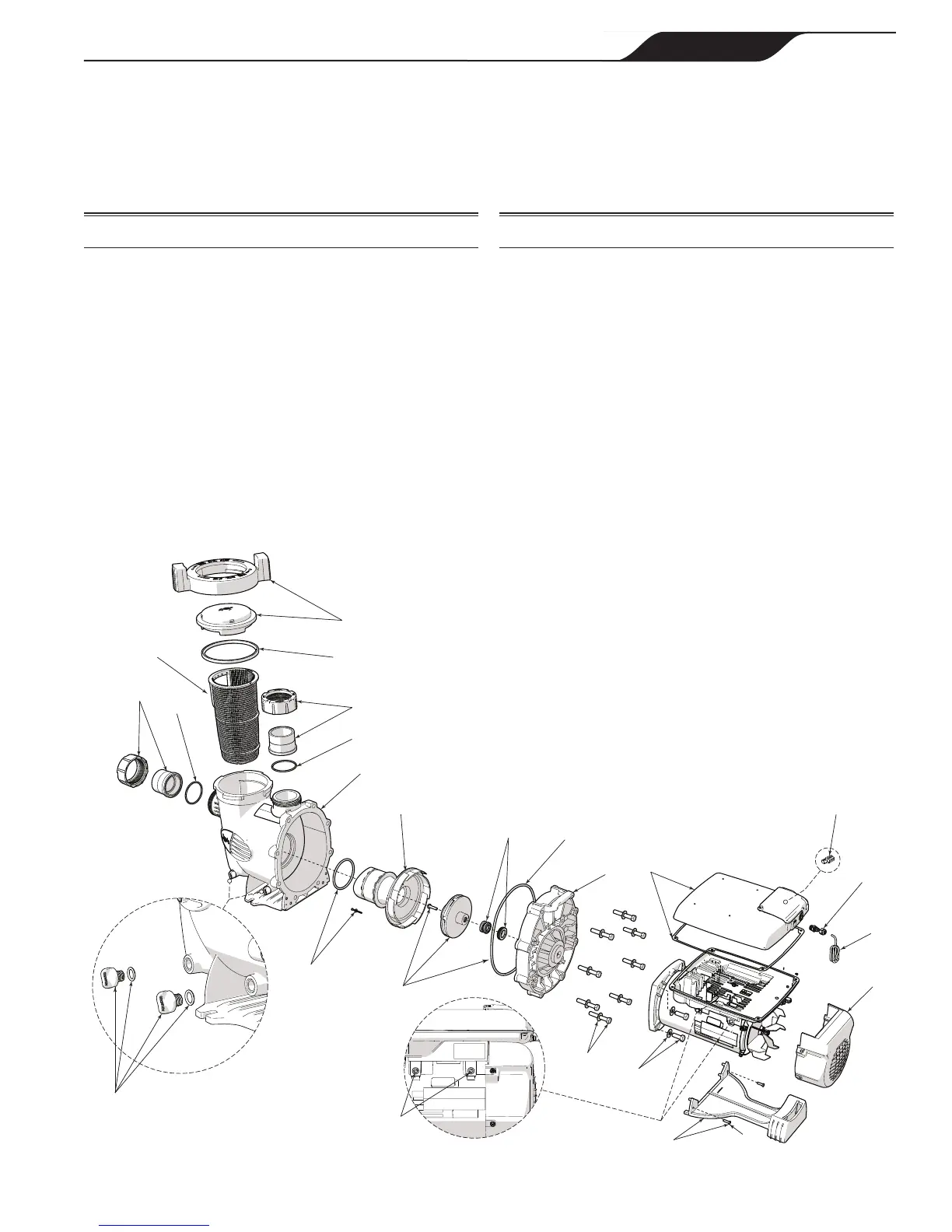

7.2 Exploded View
1,2
1,3
1,4
1,5
6
1,7
8
10
10, 22
9
11,19
13 24
12
15
14
18,14
19
19,20
17
17,21
17,21
17
16
23
