Jandy SFTM PRO Series - Jandy; Jandy ST-T Series

Page 12
SECTION 9.

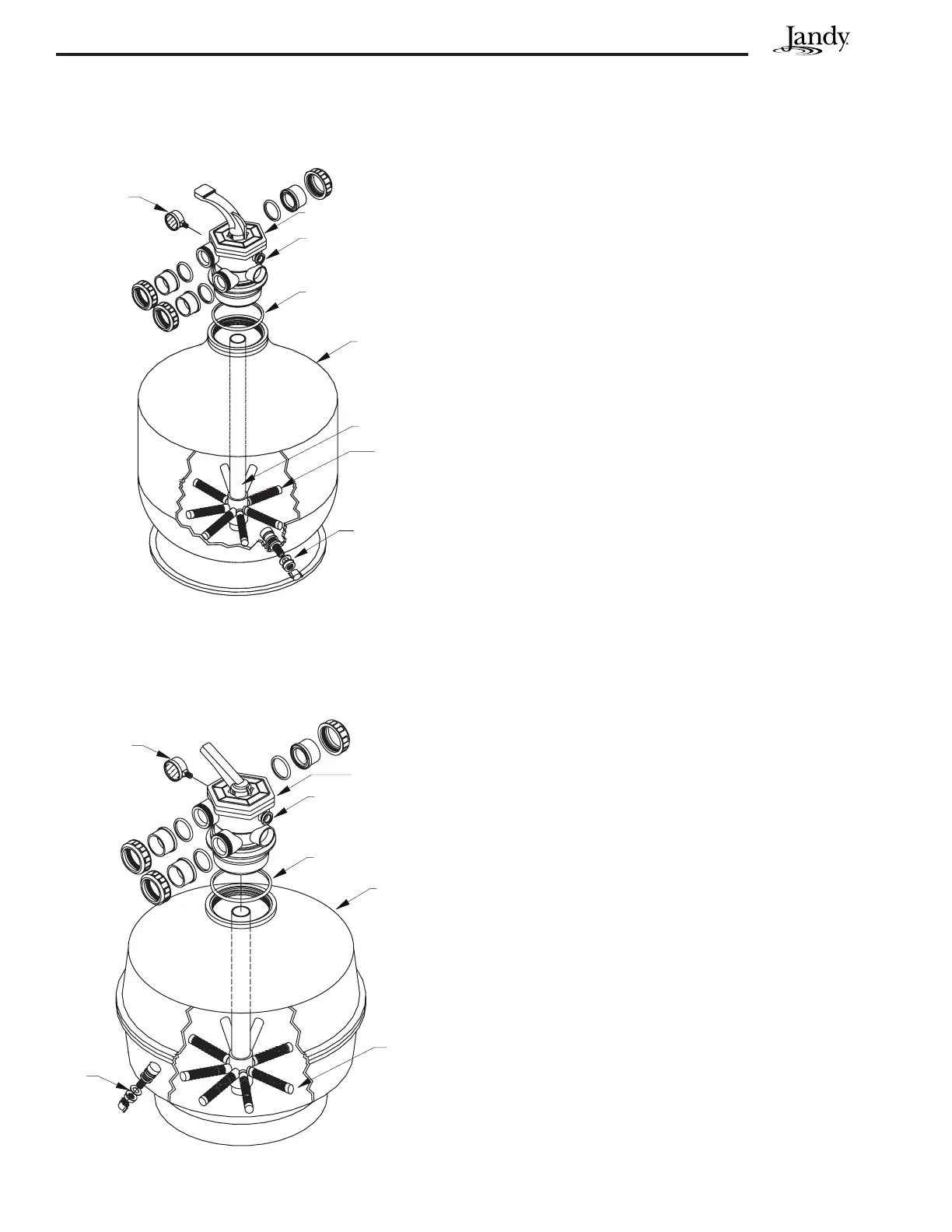

Sectional Views and Parts List
9A. Jandy
TM
SF-T (Fiberglass, Top
Mount)
Key ORDER
No. Description Size PART NO:
1 Multiport Valve, 1½", Threaded SF24-T A0102200
1 Multiport Valve, 1½", Threaded SF28-T A0102200
1 Multiport Valve, 2", Bolt down flange SF30-T A0102300
1 Multiport Valve, 2", Bolt down flange SF32-T A0102300
1 Multiport Valve, 2", Bolt down flange SF36-T A0102300
2 Multiport Valve O-ring All R0354800
3 Pressure Gauge w/ o-ring All R0349300
4 Pressure Relief Valve w/ o-ring All R0349200
5 Tank Body
6 Collector Tube/Lateral
Manifold Assembly,1½" SF24-T R0354901
6 Collector Tube/Lateral
Manifold Assembly,1½" SF28-T R0354902
6 Collector Tube/Lateral
Manifold Assembly, 2" SF30-T R0355001
6 Collector Tube/Lateral
Manifold Assembly, 2" SF32-T R0355002
6 Collector Tube/Lateral
Manifold Assembly, 2" SF36-T R0355003
7 75mm Lateral (8) SF24-T R0349400
8 110mm Lateral (8) SF24-T R0349500
200mm Lateral (16)(not shown) SF28-T R0350800
200mm Lateral (16)(not shown) SF30-T R0350800
75mm Lateral (8)(not shown) SF32-T R0349400
145mm Lateral (8)(not shown) SF32-T R0349600
145mm Lateral (16)(not shown) SF36-T R0349600
9 Lateral End Cap (8) All R0349700
10 Drain Plug Assembly All
9B. Jandy
TM
ST-T (Thermoplastic, Top
Mount)
Key ORDER
No. Description Size PART NO:
1 Multiport Valve, 1½", Threaded All A0102200
2 Multiport Valve O-ring All R0354800
3 Pressure Gauge w/ o-ring All R0349300
4 Pressure Relief Valve w/ o-ring All R0349200
5 Tank Body
6 Collector Tube/Lateral
Manifold Assembly,1½" All R0354903
110mm Lateral (8)(not shown) SF20-T R0349500
7 75mm Lateral (16) SF24-T R0349400
8 Lateral End Cap (8) All R0349700
9 Drain Plug Assembly All R0355100
SF24-T Shown Here
ST24-T Shown Here
4
6
10
2
5
7,8,9
1
7,8
9
3
3
4
1
2
5
