Jandy SFTM PRO Series - Jandy SF24-S; Jandy; Sf30-S & Sf36-S

Page 13

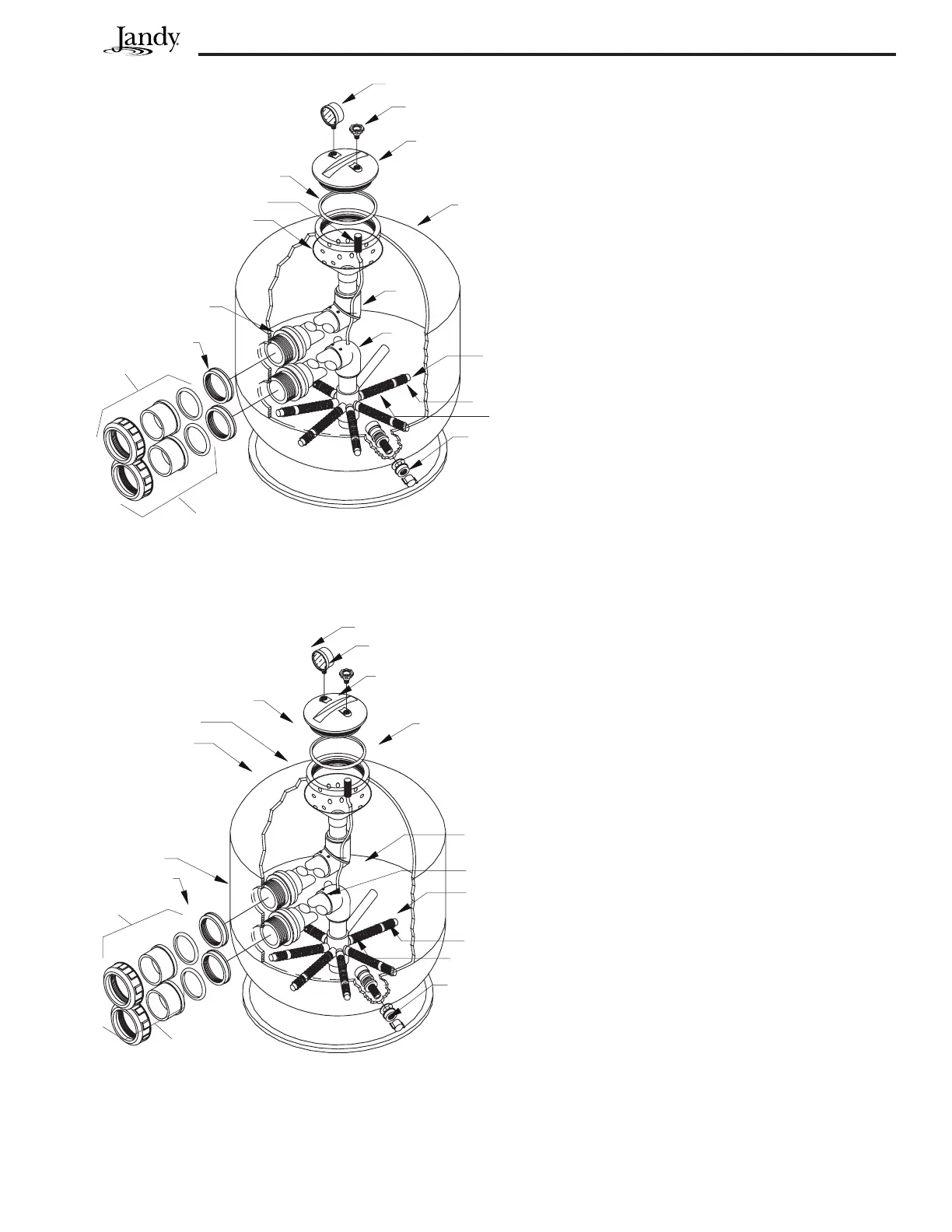

9C. Jandy
TM
SF24-S
Key ORDER
No. Description Size PART NO:
1 Filter Tank, SF24-S SF24-S
2 Lateral, 75mm (8) SF24-S R0349400
3 Lateral, 110mm (8) SF24-S R0349500
4 Lateral Manifold Assembly SF24-S R0354100
5 Inlet Tube Assembly All R0354200
6 Drain Plug Assembly All R0355100
7 Half Union, Bulkhead (2) All R0354300
8 Gasket, Half Union All R0354400
9 Top Cap All R0354500
10 O-ring, Top Cap All R0354600
11 Breather Tube Assembly All R0352500
12 Funnel (1) All R0354700
13 Pressure Gauge w/o-ring All R0349200
14 Air Relief Valve w/o-ring All R0349301
15 Lateral End Cap (8) All R0349700
16 Half Union (2) All R0339500
17 Accessory Bag w/Half
Unions (2), Pressure Gauge
Air Relief Valve, Instructions All R0355600
9D. Jandy
TM
SF30-S & SF36-S
Key ORDER
No. Description Size PART NO:
1 Filter Tank, SF30-S SF30-S
1 Filter Tank, SF36-S SF36-S
2 Lateral, 75mm SF30,36 R0349400
3 Lateral, 145mm SF30-S R0349600
3a Lateral, 200mm (not shown) SF36-S R0350800
4 Lateral Manifold Assembly SF30-S R0354102
4 Lateral Manifold Assembly SF36-S R0354103
5 Inlet Tube Assembly SF30-S R0354202
5 Inlet Tube Assembly SF36-S R0354203
6 Drain Plug Assembly All R0355100
7 Half Unions, Bulkhead (2) All R0354300
8 Gasket, Half Union All R0354400
9 Top Cap All R0354500
10 O-ring, Top Cap All R0354600
11 Breather Tube Assembly All R0352500
12 Funnel (1) All R0354700
13 Pressure Gauge w/o-ring All R0349300
14 Air Relief Valve w/o-ring All R0349200
15 Lateral End Cap (8) All R0349700
16 Half Unions (2) All R0339500
17 Accessory Bag w/Half
Unions (2), Pressure Gauge,
Air Relief Valve, Instructions All R0355600
13 (or 17)
1
14 (or 17)
9
10
11
12
4
5
8
7
3
2
6
15
16 (or 17)
13 (or 17)
14 (or 17)
9
10
11
12
1
8
7
6
3
5
4
15
2
16 (or 17)
16 (or 17)
16 (or 17)
