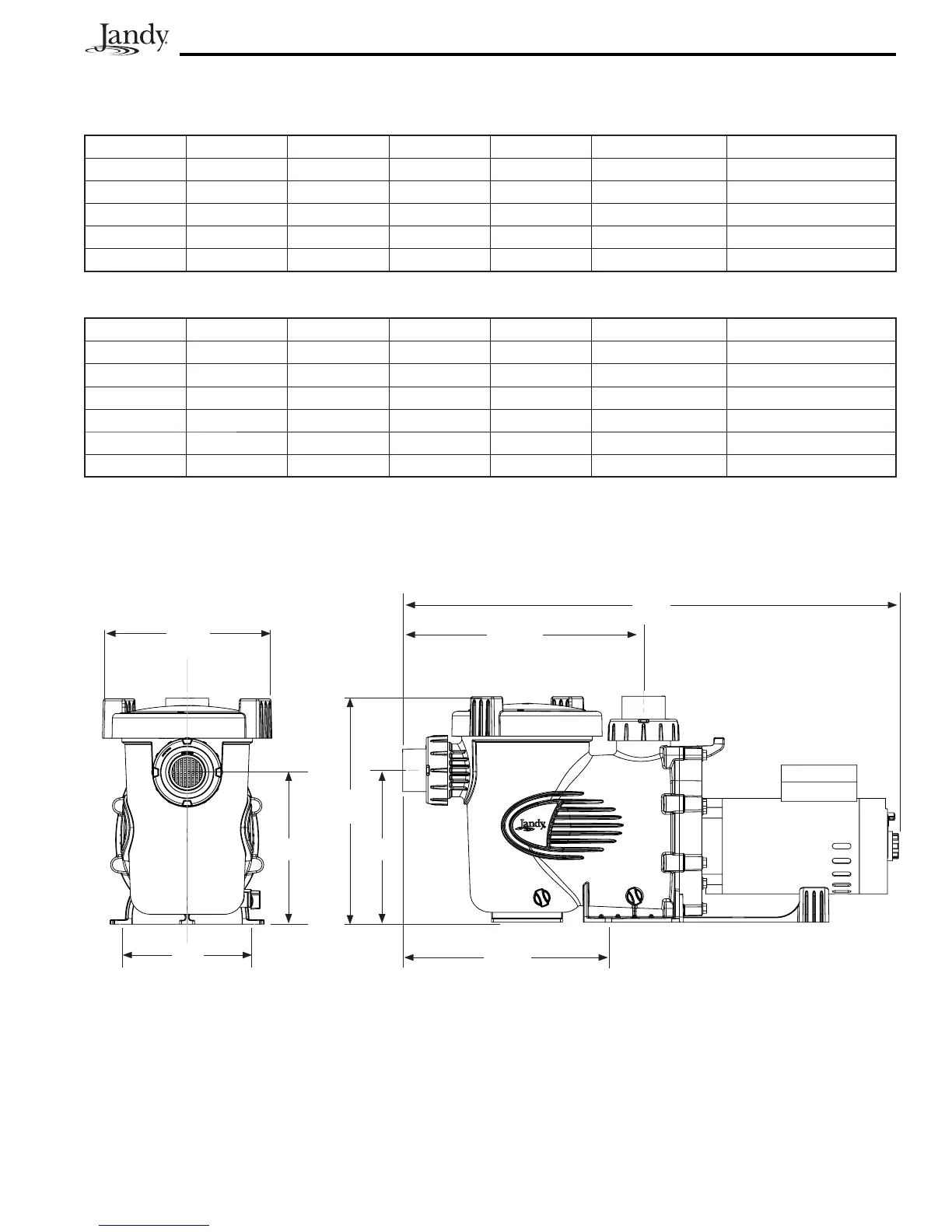

7.4 Physical and Operational Specifications
7.4.1 SHPF Pump Specifications
Model No. HP Voltage Amps Pipe Size Carton Weight Overall Length 'A'
SHPF.75 .75 208-230/115 6.0-5.6/11.2 2-2½" 43 lbs. 31
7
/
8
"
SHPF1.0 1.0 208-230/115 7.8-7.4/14.8 2-2½" 45 lbs. 32¼"
SHPF1.5 1.5 208-230 9.6-8.8 2-2½" 50 lbs. 32
5
/
8
"
SHPF2.0 2.0 208-230 11.0-10.0 2-2½" 57 lbs. 33
1
/
8
"
SHPF3.0 3.0 208-230 15.0-13.6 2½-3" 68 lbs. 33
1
/
8
"
7.4.2 SHPM Pump Specifications
Model No. HP Voltage Amps Pipe Size Carton Weight Overall Length 'A'
SHPM1.0 1.0 208-230/115 6.0-5.6/11.2 2-2½" 43 lbs. 31
7
/
8
"
SHPM1.5 1.5 208-230/115 7.8-7.4/14.8 2-2½" 45 lbs. 32¼"
SHPM2.0 2.0 208-230 9.6-8.8 2-2½" 50 lbs. 32
5
/
8
"
SHPM2.5 2.5 208-230 11.0-10.0 2-2½" 57 lbs. 33
1
/
8
"
SHPM2.0-2 2.0 230 10.0/3.5 2-2½" 57 lbs. 32
5
/
8
"
SHPM2.5-2 2.5 230 11.0/4.0 2-2½" 64 lbs. 33
1
/
8
"
NOTE When installing pump, leave a minimum of two feet
(2 ft) of clearance above the pump for removal of
strainer basket.
11
3
/
8
"
16
1
/
8
"
'A'
15¼"
14¾"
Bolt Holes,
Center to Center
Front Edge of Union to Center
of Bolt Holes
10
3
/
8
"
9"
10
3
/
8
"

Jandy SHPF Specifications
