Jandy Stealth SHPM User Manual

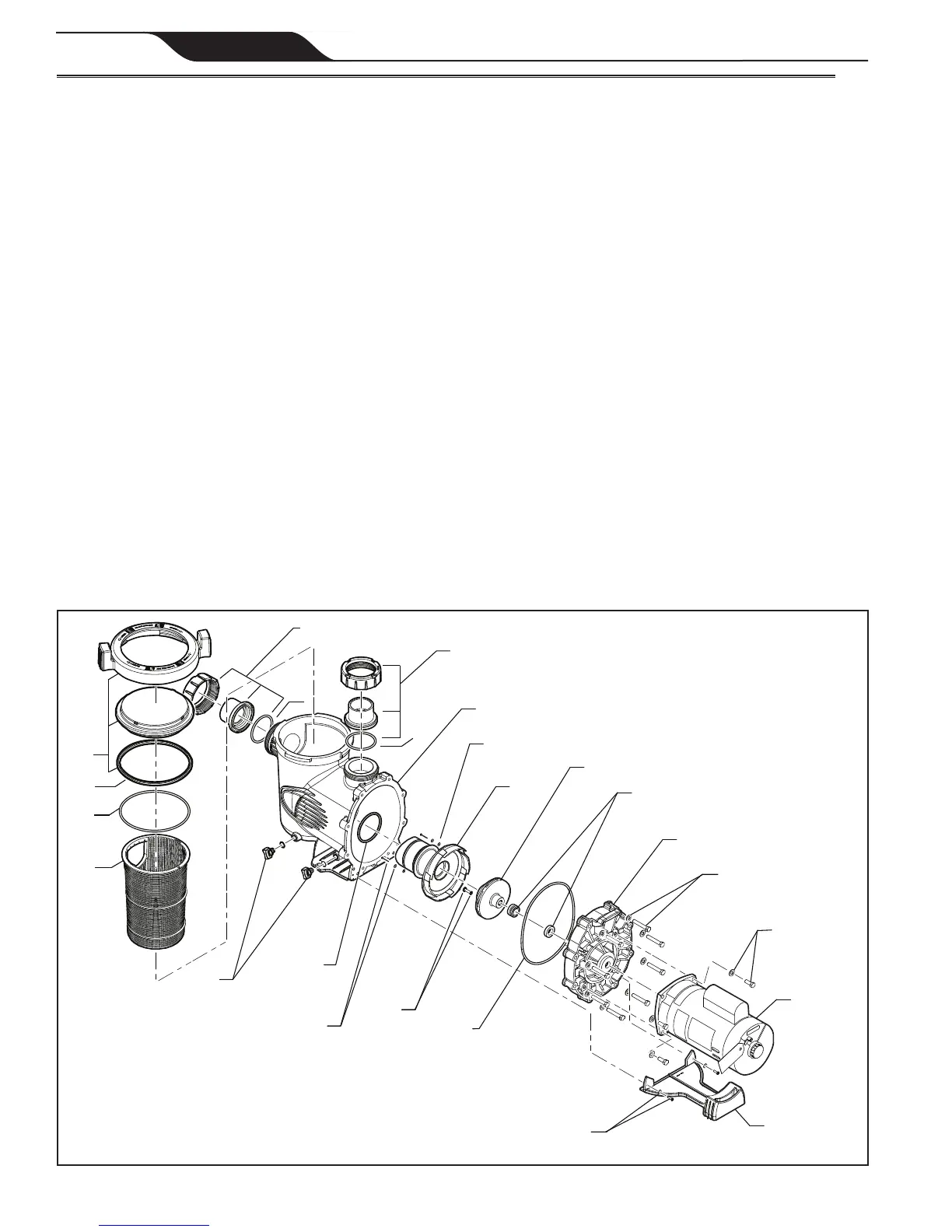

Figure 6. SHPF and SHPM Exploded View
2
2 (qty 8),
17 (qty 8)
1 (qty 4),
18 (qty 4)
1
7
7 (qty 2),
19 (qty 2)
3
2, 5
4
6
12
2, 3, 14
3, 16
4 (qty 2),
16 (qty 2)
4 (qty 2),
16 (qty 2)
11 (qty 2)
4 (qty 2),
16 (qty 2)
10
8
9
13
12
15
15
7.2 Exploded View
Key No. Description Model No. (HP) Order Part No.
3 ImpellerReplacementKit,SHPM 0.75 R0807204
3 ImpellerReplacementKit,SHPM 1.0 R0807203
3 ImpellerReplacementKit,SHPM 1.5 R0807202
3 ImpellerReplacementKit,SHPM 2.0, 2.0-2 R0807201
3 ImpellerReplacementKit,SHPM 2.5, 2.5-2 R0807200
3 Screw w/O-ring, Self-sealing All R0445302-06
4 Diffuser w/O-ring & Hardware .50-3.0 R0445400
4 Diffuser w/O-ring & Hardware 5.0 R0445401
5 MechanicalShaftSeal(1Set)(CarbonandCeramic) All R0479400
6 Body, Pump, SHPF/SHPM All R0445601
7 Motor Mounting Foot Assembly w/Screws, SHPF/SHPM All R0445700
8 Lid w/ Locking Ring & Seal All R0445800
9 Blue Pressure Test O-ring All R0479000
10 Pump Debris Filter Basket All R0445900
11 DrainPlugw/O-ring(Setof2) All R0446000
12 TailPiece(2"by2½"),O-ring&CouplingNut(Setof2) .50-2.5 R0446101
12 TailPiece(2½"by3")withO-ringandCouplingNut(Setof2) 3.0-5.0 R0446102
13 LidSealandLidO-ring(LidO-ringNotShown) All R0446200
14 O-ring, Backplate All R0446300
15 O-ring,TailPiece(Setof2) All R0446400
16 Hardware, Diffuser/Impeller .50-3.0 R0446500
16 Hardware, Diffuser/Impeller 5.0 R0446501
17 BackplateBoltsandWashers(Setof8) All R0446600
18 MotorBoltsandWashers(Setof4) All R0446700
19 Screws, Motor Mounting Foot All R0446800
Page 16
ENGLISH
Jandy
®
Pro Series Stealth
™
Pumps
|
Operation Manual

Jandy Stealth SHPM Specifications

General

Brand	Jandy
Model	Stealth SHPM
Category	Water Pump
Language	English
