UMG 96RM-P/-CBM

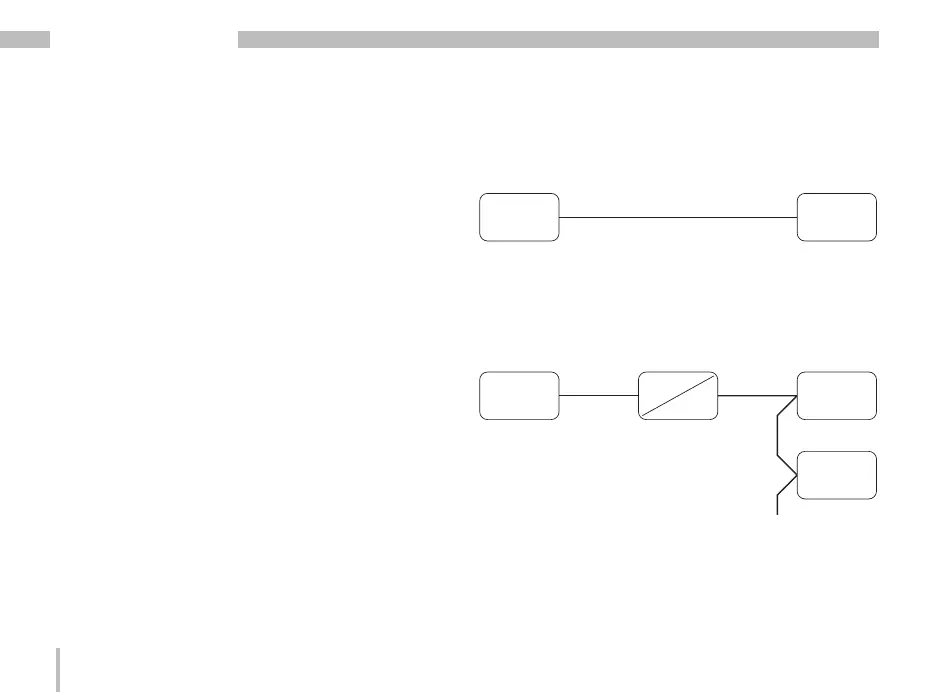

Connection variants
Connecting a UMG 96RM-P or -CBM to a PC via the USB
interface:
Connecting a UMG 96RM-P or -CBM to a PC via an
interface converter:
PC
GridVis
RS232 RS485
RS232
RS485
UMG 96RM
RS485
UMG 96RM
PC
GridVis
Ethernet RS485
UMG 96RM
RS485
UMG 96RM
UMG 604
PC
GridVis
USB (Type A)
UMG 96RM
USB (Type B)
PC
GridVis
RS232 RS485
RS232
RS485
UMG 96RM
RS485
UMG 96RM
PC
GridVis
Ethernet RS485
UMG 96RM
RS485
UMG 96RM
UMG 604
PC
GridVis
USB (Type A)
UMG 96RM
USB (Type B)
GridVis network analysis software
The UMG 96RM can be programmed and read out
using the GridVis network analysis software included
in the scope of deliverables. A PC must be connected
via a serial interface to the USB or RS485 interface of
the UMG 96RM for this (see connection variants).
GridVis features
• Programming the UMG 96RM
• Graphical representation of measured values
