PLAY OF MAIN SHAFT
WHAT TO DO WHEN THE MAIN SHAFT IS LOOSE LATERALLY

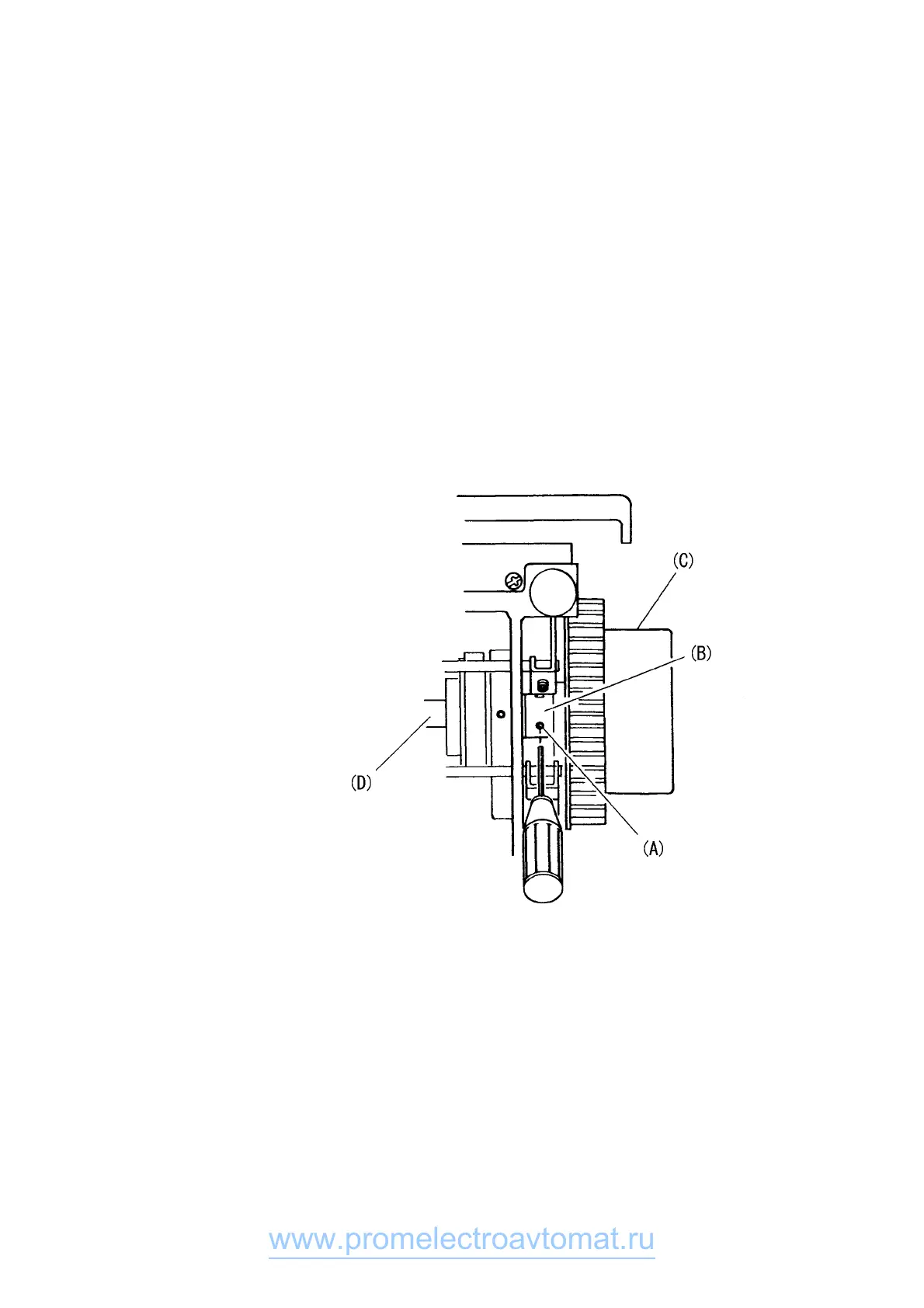

1. Remove the belt cover and machine base (Refer to pages 6 & 7).
2. Remove the belt from the hand wheel pulley (C).
3. From the bottom of the machine, loosen set screw (A) on the main shaft ring (B).
Slide the ring (B) to reduce the play on the main shaft (D). Tighten the set screws(A).
4. Put the belt back on the hand wheel.
5. Attach the belt cover and machine base (Refer to pages 6 & 7.)
33
