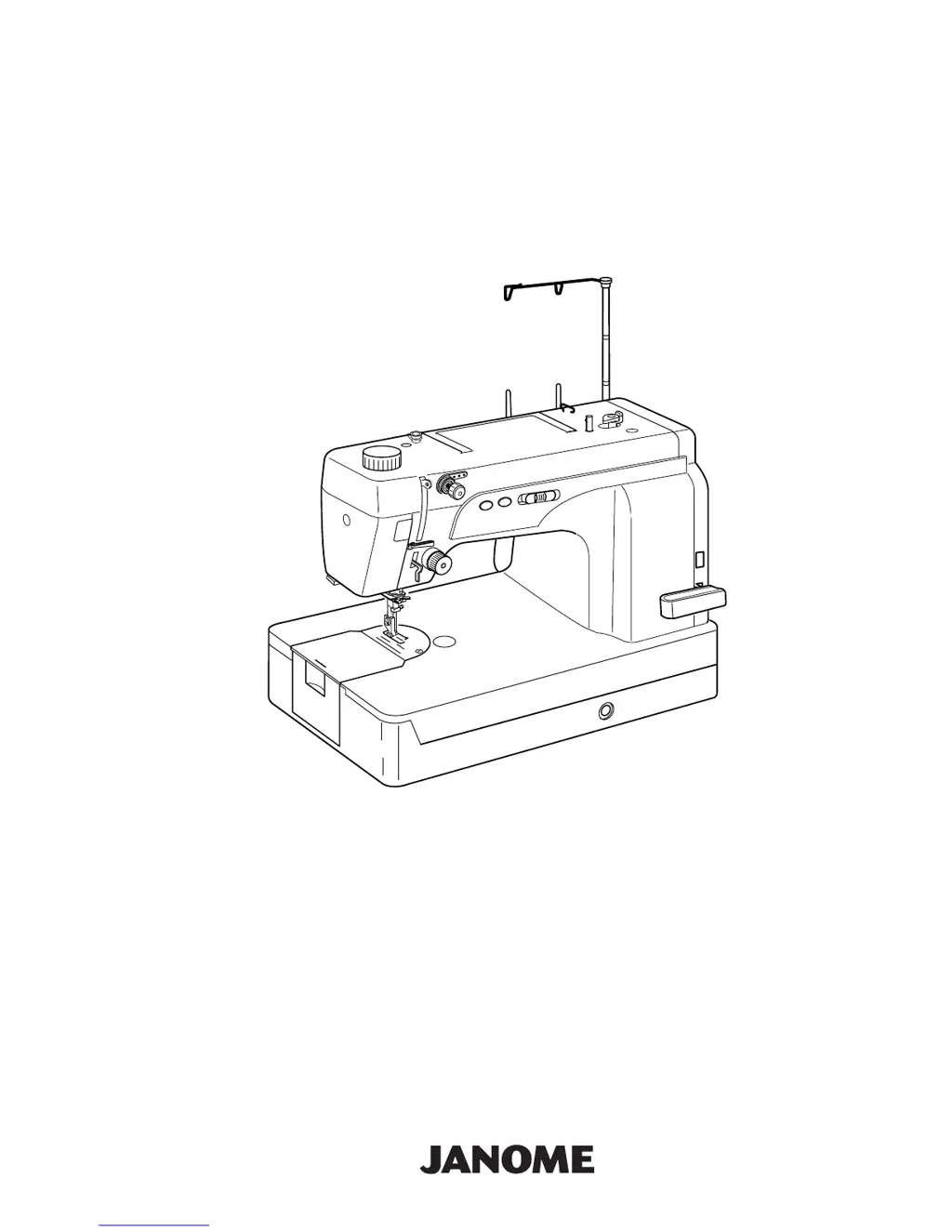

Janome 1600P - User Manual

Questions and Answers

S
seanhernandezAug 1, 2025
How to fix a Janome 1600P when the needle thread is not cut?
- B
  Brian FernandezAug 1, 2025
  If the needle thread is not being cut, it could be because the static cutter is dull, in which case you should replace or grind the static cutter blade. Another possibility is that the static cutter blade is out of position, requiring adjustment. It may also be caused by skipped stitches before thread cutting, so reset the needle at the proper angle, reduce the check spring stroke, and adjust the needle to hook timing.
O
osmithAug 6, 2025
What to do if my Janome Sewing Machine skips stitches at the beginning of the seam due to a too short tail of the thread after thread cutting?
- L
  Lisa ProctorAug 6, 2025
  If you're experiencing skipped stitches at the beginning of the seam because the thread tail is too short after cutting, it could be due to several factors. The auto tension release might not be sufficient, so adjust it. The needle to cutter cam timing might be too early, requiring adjustment. The thread drawing lever could be out of position, so adjust its position. Also, the static cutter blade might be out of position, so adjust that as well.
G
gwatsonAug 11, 2025
Why is the bobbin thread not cut on my Janome Sewing Machine?
- A
  Amanda KerrAug 11, 2025
  If the bobbin thread isn't being cut, it could be due to the thread cutter blade being out of position; in this case, adjust the stroke of the thread cutter blade. Another cause could be the thread guide plate being out of position, so adjust its position. Finally, ensure that you are using the proper hook.
I
ihendrixAug 16, 2025
Why does the tail of the needle thread appear on the right side of the fabric with my Janome Sewing Machine?
- B
  bonnie22Aug 16, 2025
  If the tail of the needle thread appears on the right side of the fabric, it could be due to a few reasons. The pretension might be too loose, in which case you should tighten it. Alternatively, the needle to cutter cam timing may be too late, requiring adjustment. Finally, the static cutter blade might be out of position and need adjustment.
B
Brian WilliamsAug 21, 2025
What to do if the needle thread bunches up on the wrong side of the fabric at the beginning of the seam with my Janome 1600P Sewing Machine?
- D
  Daniel JohnsonAug 21, 2025
  If the needle thread bunches up on the wrong side of the fabric when starting a seam, it's possible that too long a tail of the needle thread is left after thread cutting. To resolve this, you may need to adjust the needle to cutter cam timing, or adjust the position of the static cutter blade.
N
Nathan PhamAug 27, 2025
What to do if the thread slips out the needle eye when starting sewing with my Janome 1600P Sewing Machine?
- J
  Jessica BergAug 27, 2025
  If the thread slips out of the needle eye when you start sewing, it could be because the needle to cutter cam timing is too late, so you should adjust it. Another possibility is that the thread drawing lever is out of position, requiring you to adjust its position.

Summary

Mechanical Adjustment

Needle Bar Height

Adjusting the vertical position of the needle bar for proper sewing.

Presser Bar Height

Setting the correct distance for the presser foot from the needle plate.

Feed Dog Height

Adjusting the raised height of the feed dogs above the needle plate.

Feed Dog Alignment

Ensuring proper lateral positioning of feed dogs within needle plate slots.

Feed Cam Timing

Adjusting the timing of the feed cam for correct feed dog movement.

Feed Lifting Cam Timing

Calibrating the feed lifting cam for precise feed dog height control.

Needle to Hook Timing

Synchronizing the needle's descent with the hook's rotation for thread pickup.

Clearance between Needle and Hook Point

Setting the precise gap between the needle and hook point for reliable stitching.

Hook Stopper Position

Check Spring Stroke

Needle Stop Position

Needle Threader (1600 P only)

Replacing the Electronic Components

Circuit Board-A

Circuit Board-F and Slide Volume

Driving Motor

Procedure for removing and installing the sewing machine's driving motor.

Power Transformer

Adjustment of the Thread Cutter Mechanism

Static Cutter Blade

Adjusting the position of the static cutter blade for proper thread cutting.

Thread Cutter Blade

Thread Guide Plate

Needle to Cutter Cam Timing

Synchronizing the needle's movement with the cutter cam for timing.

Thread Drawing Lever

Auto Tension Release

Janome 1600P Specifications

General

Maximum Sewing Speed	1, 600 stitches per minute
Stitch Options	Straight Stitch
Built-in Needle Threader	No
Voltage	110V
Presser Foot Lift	12mm
Thread Tension Control	Adjustable
Type	Mechanical
Warranty	25-year limited
Weight	11.5 kg (25.3 lbs)
Presser Feet	Included
