Janome 134D - Machine Socket Replacement

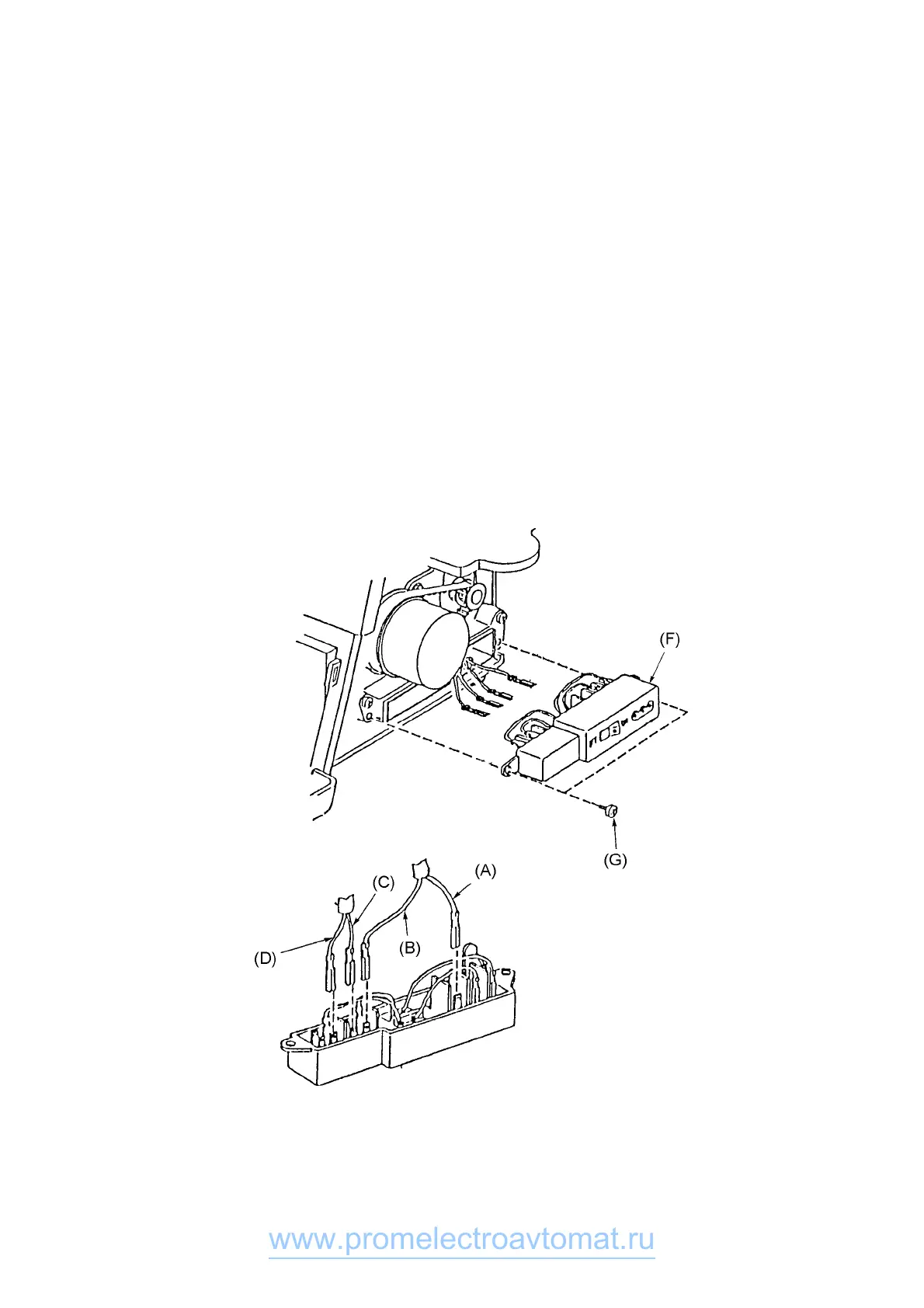

REPLACEMENT OF MACHINE SOCKET
To remove:
1. Remove the belt cover.
2. Remove the two setscrews (G), and pull out the cord connectors (A, B, C & D).
To attach:
3. Insert the cord connectors (A, B, C & D) as shown below.
Connectors:
A: Blue for motor
B: Brown for motor
C: Brown for lamp socket
D: Blue for lamp socket
4. Attach the machine socket (F), and tighten the two screws (G).
5. Attach the belt cover unit.
