Janome MC350E - Replacing Printed Circuit Board “A” (Main board)

20
MC350E
Replacing Printed Circuit Board “A” (Main board)
To remove:
1. Remove the front cover. (See page 6)
2. Pull out the connectors of printed circuit board F
LCD Harness, Inverter and Touch panel.
3. Remove Screws (5 pieces) and the Printed
circuit board “A” (Main board) with the Card
guide .
To attach:
4. Follow the above procedure in reverse.
Screws

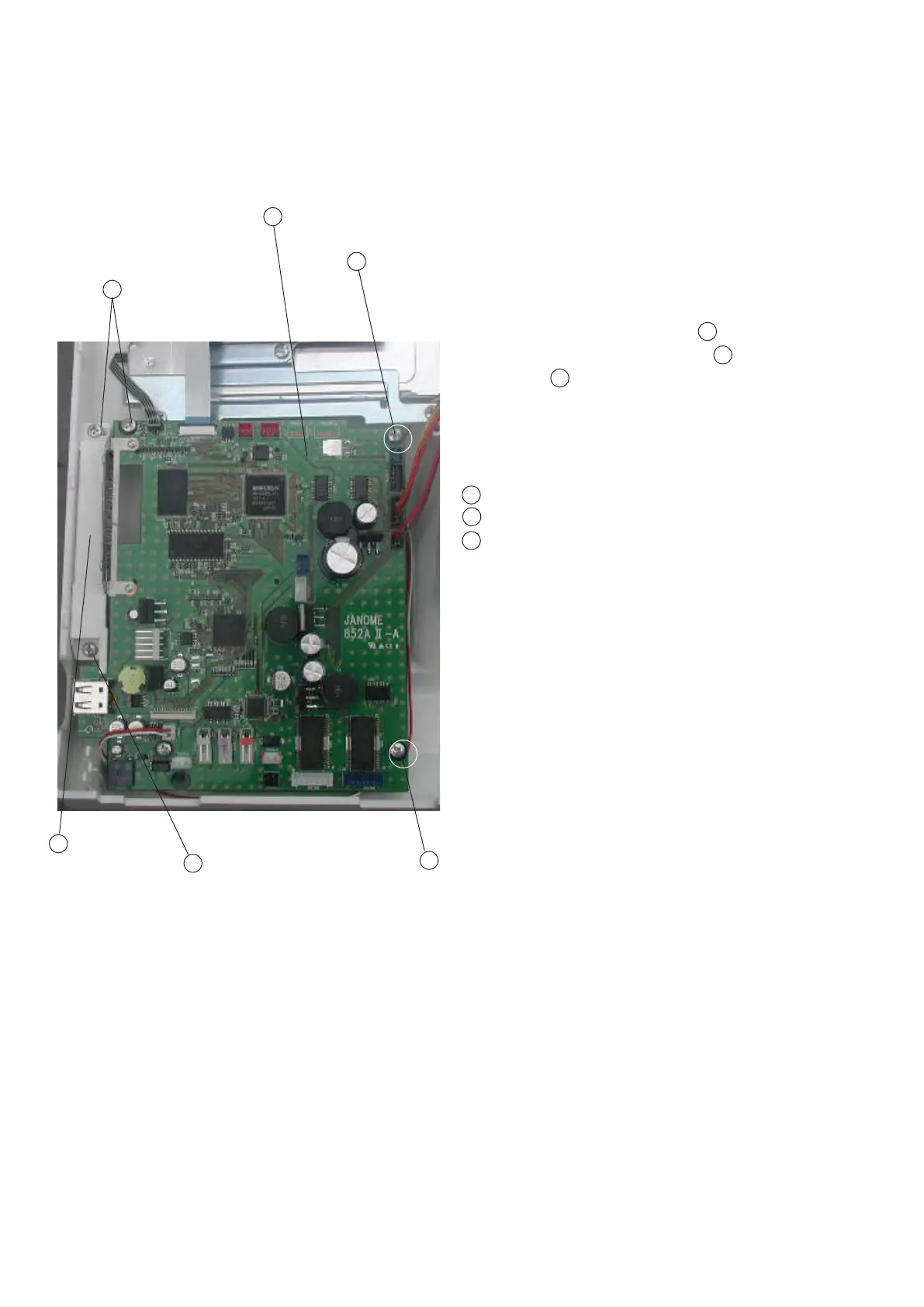

Printed circuit board A
Card guide
