Adjusting X and Y Sensors
1. Turn the power “ON” to return the carriage to
the home position.
2. Turn the power “OFF” and then remove the base
unit.
3. Loosen Screw and adjust dimension “Y” to
2.5 mm by moving the Y Sensor attaching
plate .
4. Loosen Screw to adjust Dimension “X-1”
to 69.0 mm and Dimension “X-2” to 2.5 mm
by moving the X Shield plate .
5. Tighten Screws and .
6. Attach the base.
Screw
Dimension Y (2.5mm)
Y sensor attaching plate
Screw
Dimension X-1 (69.0 mm)
Dimension X-2 (2.5 mm)
X shield plate

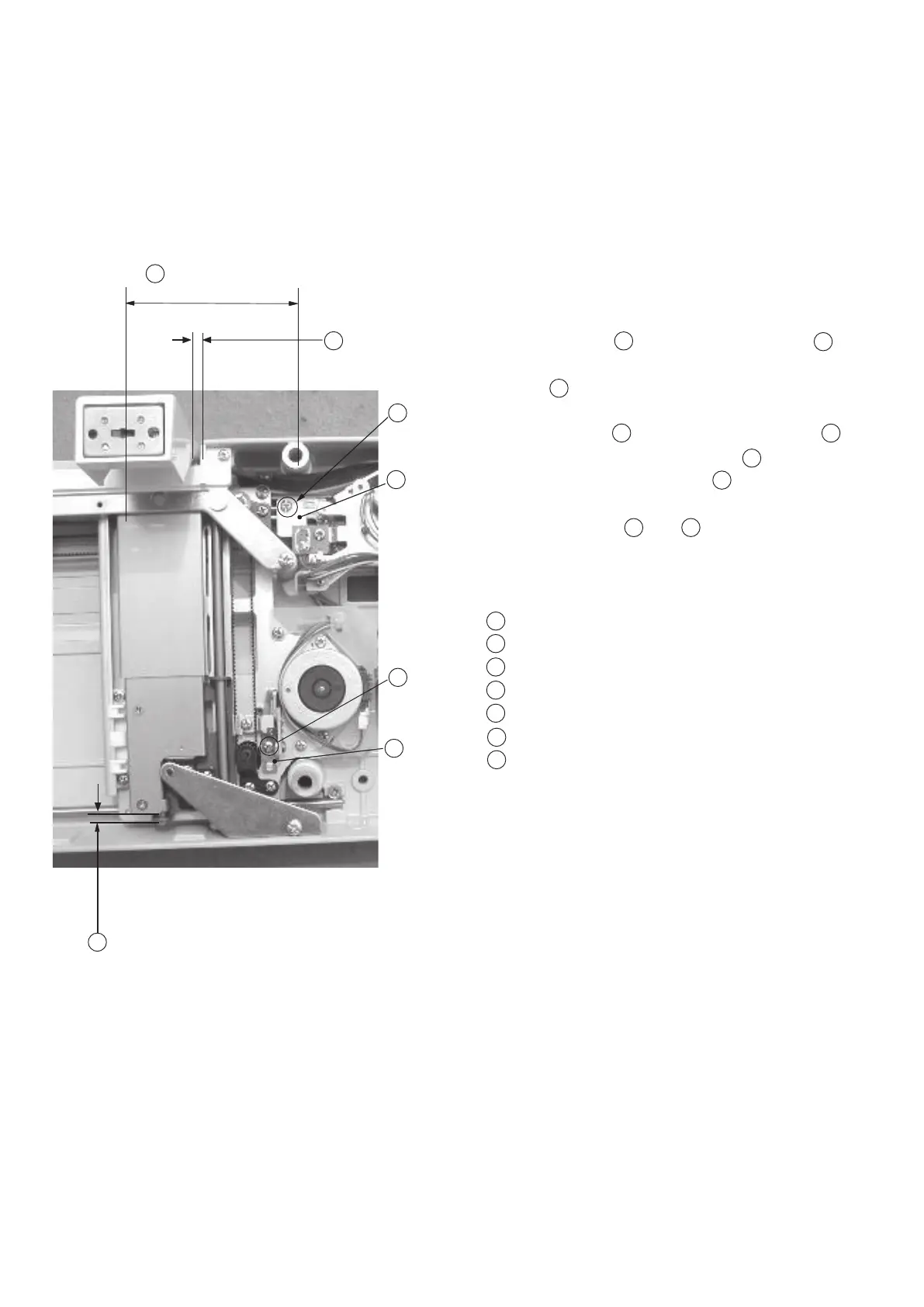

To adjust X and Y sensors:
