The UD Series comprises :

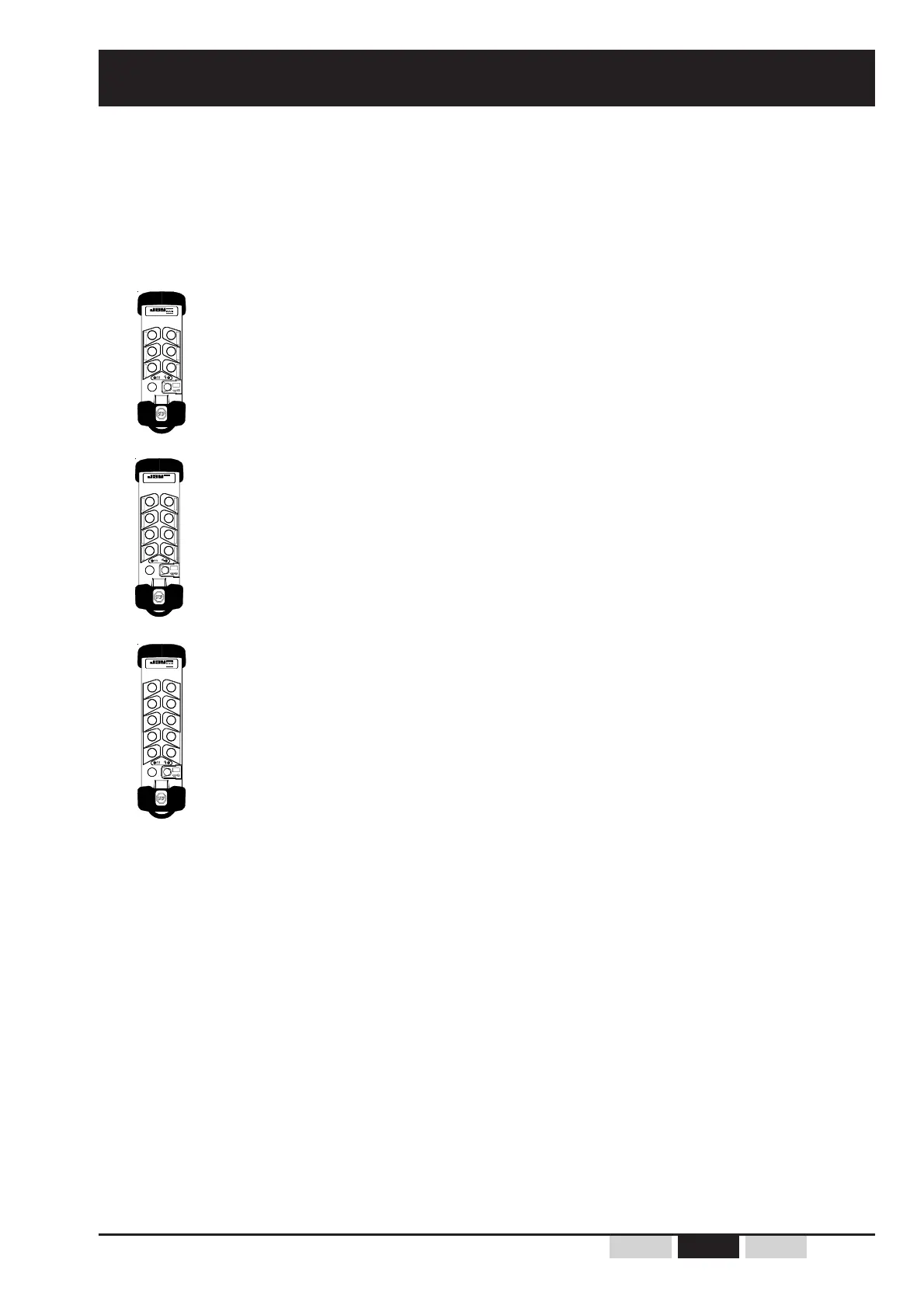

 A transmitter : «UDE» with radio communication, existing in three housing versions :
6+2 button version
(6 function buttons + 1 «On/Horn» button + 1 «stop palmswitch button»)
or
10+2 button version
(10 function buttons + 1 «On/Horn» button + 1 «stop palmswitch button»)
 A receiver «UDR» which decodes the information generated by the remote control and controls
movements of the machines.
 A battery pack «UDB2» (transmitter battery).
 A battery pack charger «UBCU».
 Accessories (strap, label kits, common wiring accessory etc...).
Besides, If the remote control is equipped with option " start up by infrared validation " :
 One to three infrared modules «UDF» which allow to bound a zone for starting up the
equipment.
2.1- Composition of the UD Series and description of elements
2- Installation
or
8+2 button version
(8 function buttons + 1 «On/Horn» button + 1 «stop palmswitch button»)
