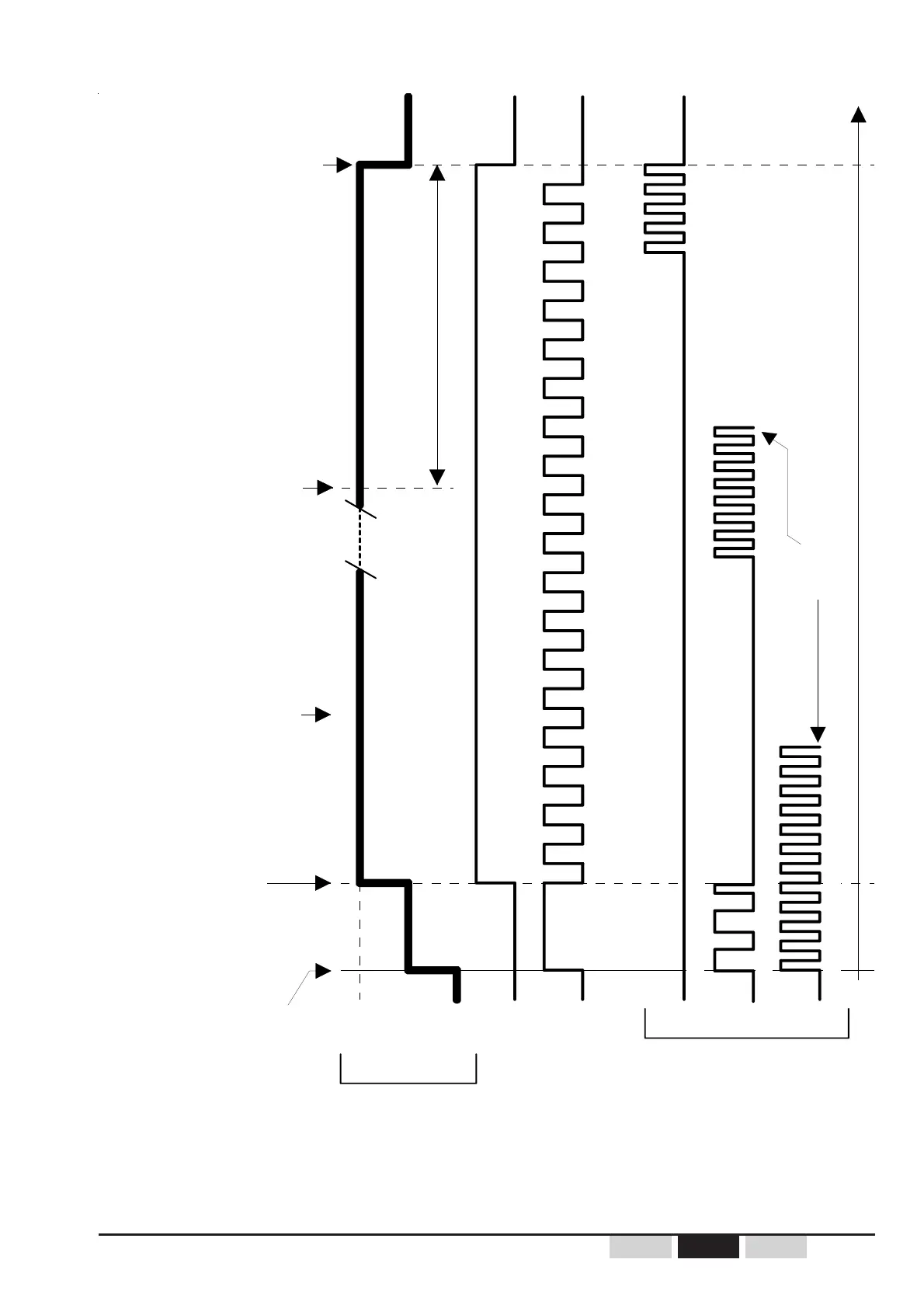

Jay electronique UD Series - System Functioning Block Diagram

UD - 319472K - 79 -FRENDE
T
Red stop palmswitch unlocked, UDE transmitter powered up
Green "On/Horn" button pressed (transmitter is in infrared startup area if option "startup with IR validation" chosen)
Passive stop if "Dead Man" duration is exceeded (1) or Battery pack is disconnected/discharged (2) or Electronic key removed from UDE transmitter in operation
OFF
Standby
Active
3 states of UDE
UDR receiver RS1 and
RS2 safety relays
UDE transmitter green indicator light
3 states of red indicator light of UDE (battery pack charge state)
Active stop by pressing stop palmswitch button
Or
Last action on function pushbutton
(1) "Dead Man" duration
Passive stop : battery pack is discharged
UTILISATION
(2)
Battery pack charge > 90 % 90% > Battery pack charge > 10% Battery pack charge < 10%
90% > Charge > 10 % Charge < 10 %
Charge < 10 %
3.4- Functioning block diagram
