Jay electronique UD Series User Manual

- 72 - UD - 319472KFR EN DE
RK
RS1
RS2
F1
F2
A
B
C
UDF module
n°2
UDF module
n°1
3738 36
Bla
c
k
B
l
ue
or
B
rown
White
3435 33 3132 30
B
lack
B
lu
e
o
r
Bro
w
n
W
h
i
te
Bla
c
k
B
lu
e
or
Bro
wn
White
UDFUDF
UDFUDF

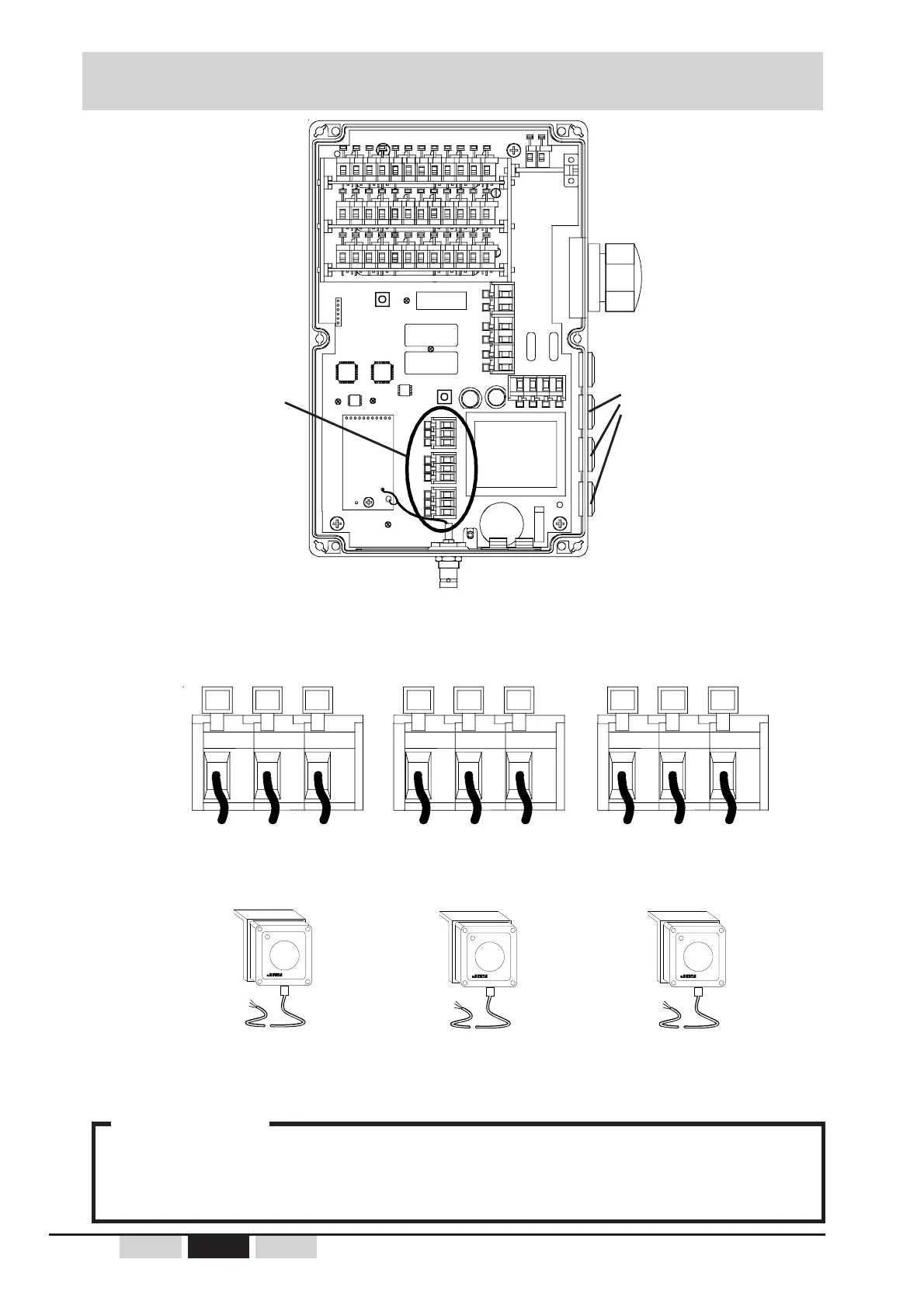

UDF infrared module wiring, if UD system is equipped with «starting up by
infrared validation» option
UDF terminal strips
Each UDF module is delivered with 1 M16 plastic cable gland, a 10m extension cable and a
mounting bracket.
way for UDF wires
électronique
électronique
UDF module wire
colours :
électronique
UDF module
n°3
The UDF infrared module must be wired separately from the power cables and all
sources of interference (power converter, for example).



IMPORTANT
